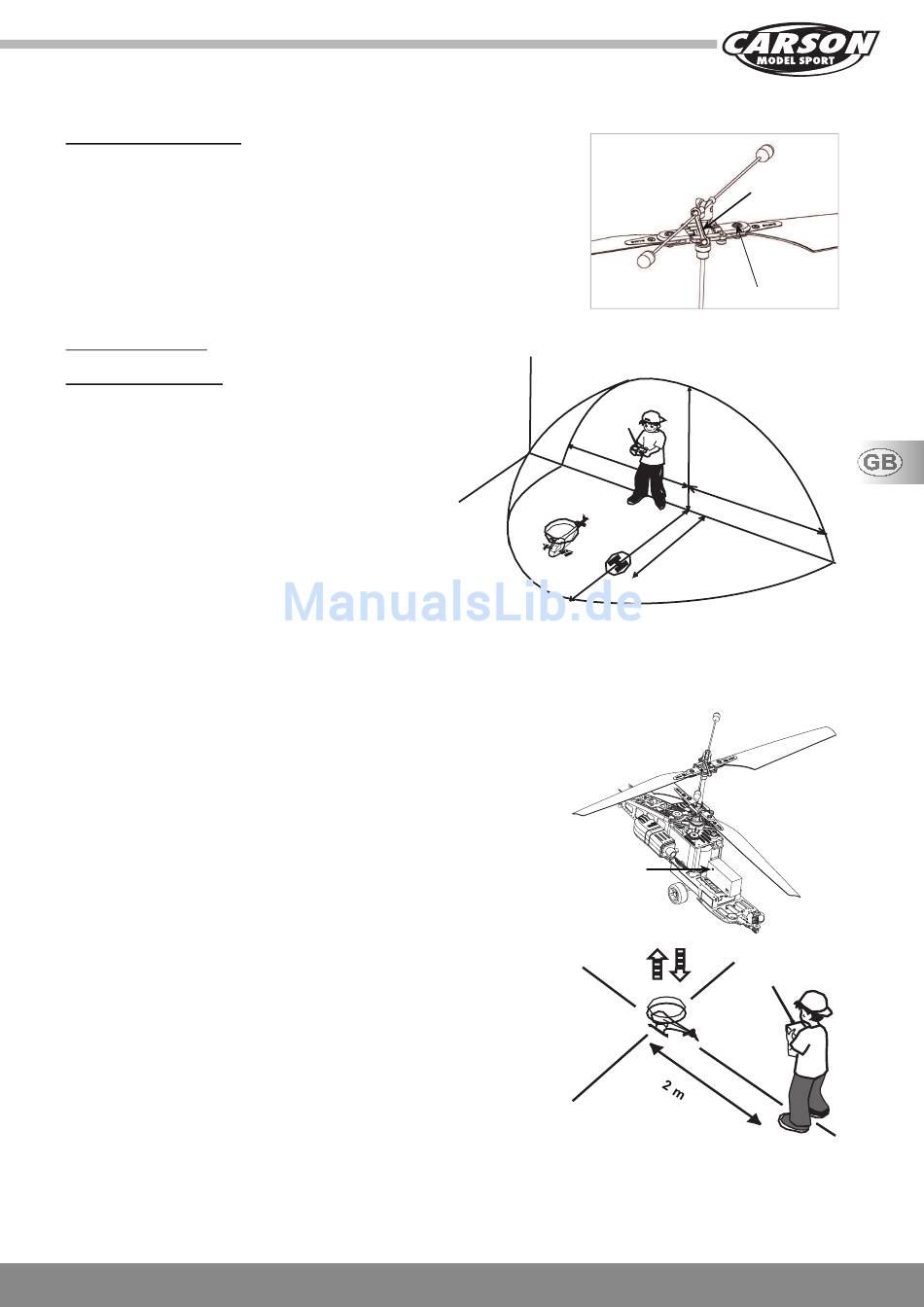

Fastening the rotor blades

The rotor blades must be able to align themselves 180° to each other solely by
the centrifugal force.
- Therefore check the seating of the retaining screws (a) of the rotor blades:
The screws may only be tightened firmly enough that the rotor blades still fold
downwards when you tip the helicopter to the side.
- The steering lever (b) for adjusting the rotor blade on the upper rotor rotation
cannot be set

Flight operation

Switching on the model

Ensure sufficient space in order to undertake the first
flight experiments.
Even if the indoor helicopter can later be flown in the smallest
quarters, it requires about 3m free space in all directions.
- Set the model on a smooth and level surface, so that the
helicopter can freely glide and lift off.
- Set the helicopter about 2m in front of yourself on the
ground, the tail pointing towards you.
This way the direction of reaction of the helicopter
conforms to the direction of control.
Unwind the receiver antenna completely and fasten
-
the aerial wire with an adhesive strip to the fuselage for
traction relief.
Pull the transmitter antenna totally out.
-
The effective range of the remote control is reduced if the antenna is not completely pulled out.
- Pull the left remote control lever (pitch) totally back.
- Take care that the pitch function of the trim lever is approximately in the middle position.
Switch the transmitter on.
-
Now connect the charged airplane battery to the receiver.
-
The LED (1) on the receiver begins to blink.
This indicates that the electric circuit of the electronic gyro is calibrating
itself.
.
The model may now not be moved!
-
When the process is concluded and the receiver is receiving correct
signals the LED lights up continuously.
If the LED blinks slowly, then the battery voltage is too low.
Recharge the battery or replace it with an original replacement battery!
Bring all control levers into the neutral position.
- Move the left control lever slightly forward,
until the model just lifts off from the ground.
- Pull the control lever slowly back again, so that the model gently alights.
Move the control extremely delicately!
Vers ion 09/07
(1)
CARSON Apache 4CH 507000
(b)
(a)
15
