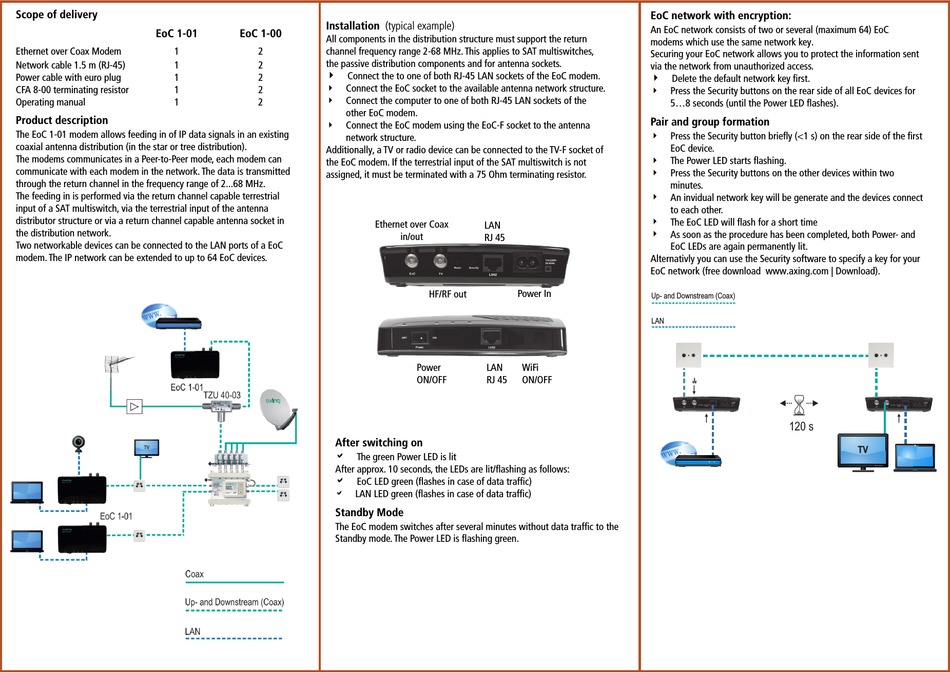

axing EoC 1-01 premium Schnellstartanleitung Seite 4

Scope of delivery
EoC 1-01
Ethernet over Coax Modem 1
Network cable 1.5 m (RJ-45) 1
Power cable with euro plug 1
CFA 8-00 terminating resistor 1
Operating manual 1
Product description
The EoC 1-01 modem allows feeding in of IP data signals in an existing
coaxial antenna distribution (in the star or tree distribution).
The modems communicates in a Peer-to-Peer mode, each modem can
communicate with each modem in the network. The data is transmitted
through the return channel in the frequency range of 2...68 MHz.
The feeding in is performed via the return channel capable terrestrial
input of a SAT multiswitch, via the terrestrial input of the antenna
distributor structure or via a return channel capable antenna socket in
the distribution network.
Two networkable devices can be connected to the LAN ports of a EoC
modem. The IP network can be extended to up to 64 EoC devices.
Installation (typical example)
EoC 1-00
All components in the distribution structure must support the return
channel frequency range 2-68 MHz. This applies to SAT multiswitches,
2
the passive distribution components and for antenna sockets.
2
4
Connect the to one of both RJ-45 LAN sockets of the EoC modem.
2
4 Connect the EoC socket to the available antenna network structure.
2
4
Connect the computer to one of both RJ-45 LAN sockets of the
2
other EoC modem.
4 Connect the EoC modem using the EoC-F socket to the antenna
network structure.
Additionally, a TV or radio device can be connected to the TV-F socket of
the EoC modem. If the terrestrial input of the SAT multiswitch is not
assigned, it must be terminated with a 75 Ohm terminating resistor.
Ethernet over Coax
in/out
Power
ON/OFF
After switching on
a
The green Power LED is lit
After approx. 10 seconds, the LEDs are lit/flashing as follows:
a
EoC LED green (flashes in case of data traffic)
a
LAN LED green (flashes in case of data traffic)
Standby Mode
The EoC modem switches after several minutes without data traffic to the
Standby mode. The Power LED is flashing green.
LAN
RJ 45
HF/RF out Power In
LAN WiFi
RJ 45 ON/OFF
EoC network with encryption:
An EoC network consists of two or several (maximum 64) EoC
modems which use the same network key.
Securing your EoC network allows you to protect the information sent
via the network from unauthorized access.
4
Delete the default network key first.
4 Press the Security buttons on the rear side of all EoC devices for
5...8 seconds (until the Power LED flashes).
Pair and group formation
4 Press the Security button briefly (<1 s) on the rear side of the first
EoC device.
4
The Power LED starts flashing.
4
Press the Security buttons on the other devices within two
minutes.
4 An invidual network key will be generate and the devices connect
to each other.
4 The EoC LED will flash for a short time
4 As soon as the procedure has been completed, both Power- and
EoC LEDs are again permanently lit.
Alternativly you can use the Security software to specify a key for your
EoC network (free download www.axing.com | Download).
Up- and Downstream (Coax)
LAN
120 s
TV
