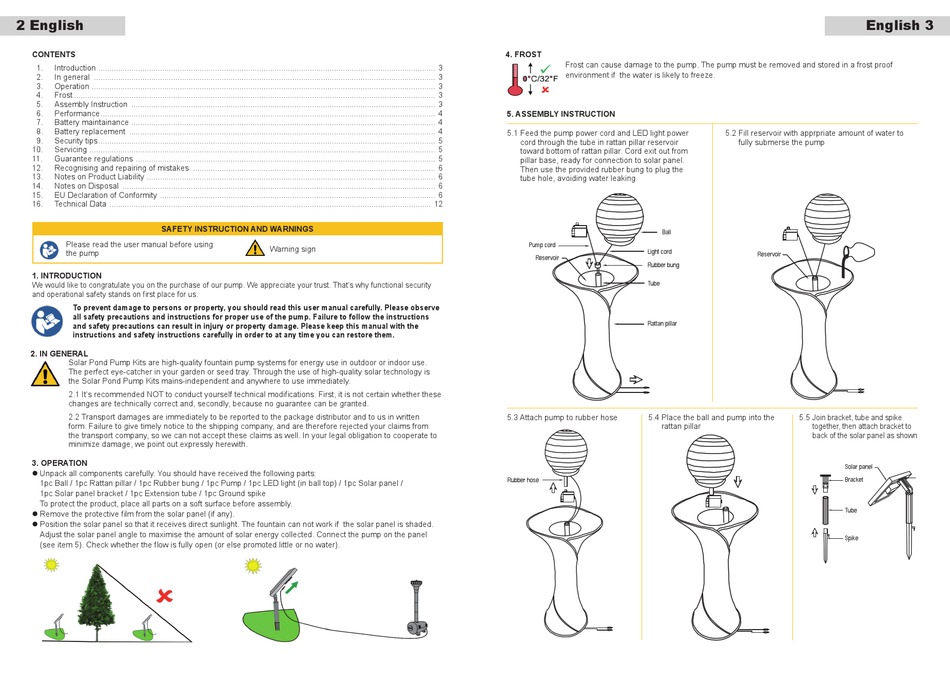

2 English
CONTENTS
1. Introduction ......................................................................................................................................................... 3
2. In general ........................................................................................................................................................... 3
3.

Operation ............................................................................................................................................................ 3

4. Frost .................................................................................................................................................................... 3
5. Assembly Instruction .......................................................................................................................................... 3
6. Performance ........................................................................................................................................................ 4
7. Battery maintainance .......................................................................................................................................... 4
8. Battery replacement ........................................................................................................................................... 4
9. Security tips ......................................................................................................................................................... 5
10. Servicing ............................................................................................................................................................. 5
11. Guarantee regulations ........................................................................................................................................ 5
12. Recognising and repairing of mistakes .............................................................................................................. 6
13. Notes on Product Liability ................................................................................................................................... 6
14. Notes on Disposal .............................................................................................................................................. 6
15. EU Declaration of Conformity ............................................................................................................................. 6
16. Technical Data .................................................................................................................................................. 12
SAFETY INSTRUCTION AND WARNINGS
Please read the user manual before using
the pump
1. INTRODUCTION
We would like to congratulate you on the purchase of our pump. We appreciate your trust. That's why functional security
and operational safety stands on fi rst place for us.
To prevent damage to persons or property, you should read this user manual carefully. Please observe
all safety precautions and instructions for proper use of the pump. Failure to follow the instructions
and safety precautions can result in injury or property damage. Please keep this manual with the
instructions and safety instructions carefully in order to at any time you can restore them.
2. IN GENERAL
Solar Pond Pump Kits are high-quality fountain pump systems for energy use in outdoor or indoor use.
The perfect eye-catcher in your garden or seed tray. Through the use of high-quality solar technology is
the Solar Pond Pump Kits mains-independent and anywhere to use immediately.
2.1 It's recommended NOT to conduct yourself technical modifi cations. First, it is not certain whether these
changes are technically correct and, secondly, because no guarantee can be granted.
2.2 Transport damages are immediately to be reported to the package distributor and to us in written
form. Failure to give timely notice to the shipping company, and are therefore rejected your claims from
the transport company, so we can not accept these claims as well. In your legal obligation to cooperate to
minimize damage, we point out expressly herewith.
3. OPERATION
l Unpack all components carefully. You should have received the following parts:
1pc Ball / 1pc Rattan pillar / 1pc Rubber bung / 1pc Pump / 1pc LED light (in ball top) / 1pc Solar panel /
1pc Solar panel bracket / 1pc Extension tube / 1pc Ground spike
To protect the product, place all parts on a soft surface before assembly.
l Remove the protective fi lm from the solar panel (if any).
l Position the solar panel so that it receives direct sunlight. The fountain can not work if the solar panel is shaded.
Adjust the solar panel angle to maximise the amount of solar energy collected. Connect the pump on the panel
(see item 5). Check whether the fl ow is fully open (or else promoted little or no water).
Warning sign
4. FROST
Frost can cause damage to the pump. The pump must be removed and stored in a frost proof
environment if the water is likely to freeze.
5. ASSEMBLY INSTRUCTION
5.1 Feed the pump power cord and LED light power
cord through the tube in rattan pillar reservoir
toward bottom of rattan pillar. Cord exit out from
pillar base, ready for connection to solar panel.
Then use the provided rubber bung to plug the
tube hole, avoiding water leaking
Ball
Pump cord
Light cord
Reservoir
Rubber bung
Tube
Rattan pillar
5.3 Attach pump to rubber hose 5.4 Place the ball and pump into the
rattan pillar
Rubber hose
English 3
5.2 Fill reservoir with apprpriate amount of water to
fully submerse the pump
Reservoir
5.5 Join bracket, tube and spike
together, then attach bracket to
back of the solar panel as shown
Solar panel
Bracket
Tube
Spike
