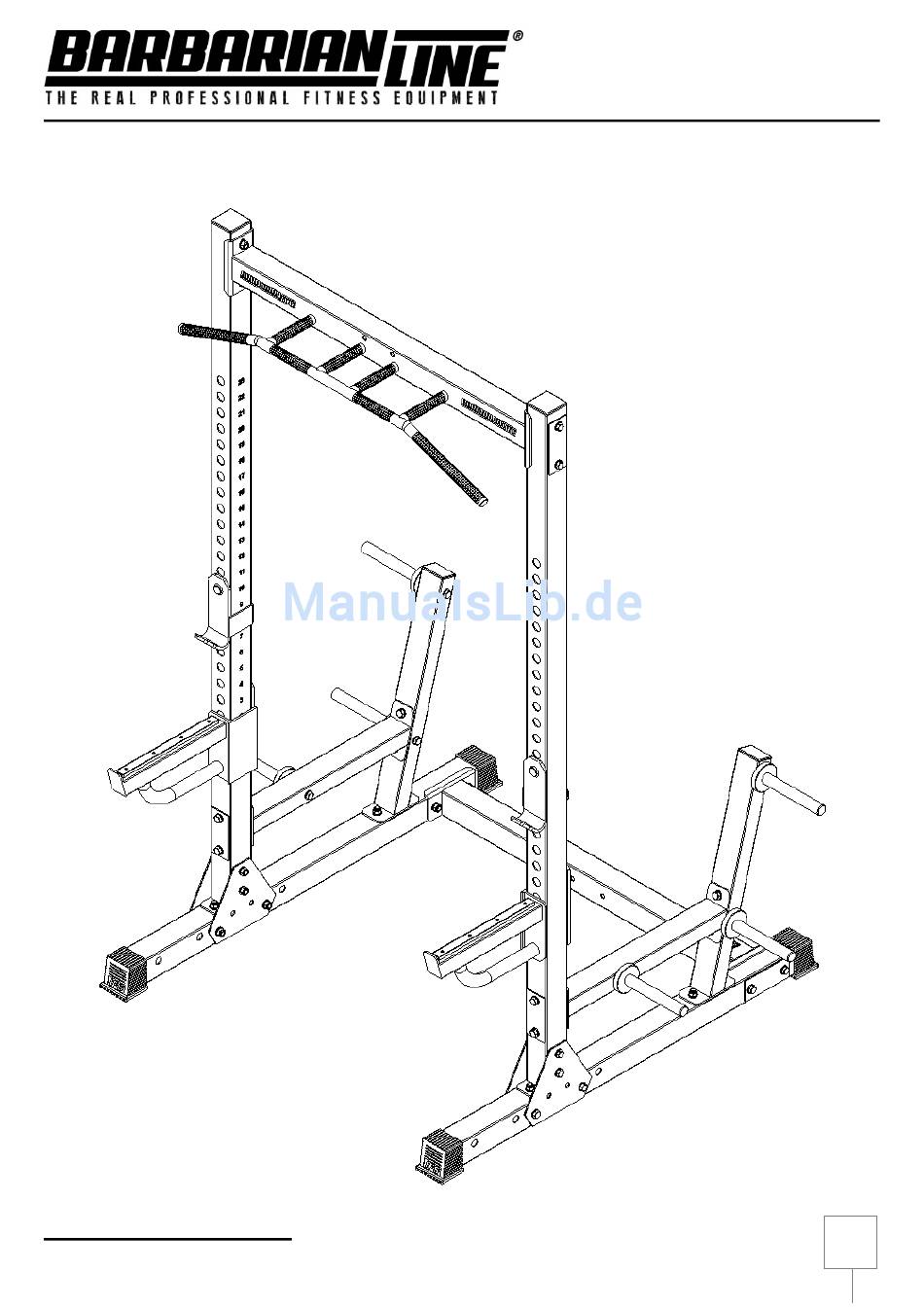

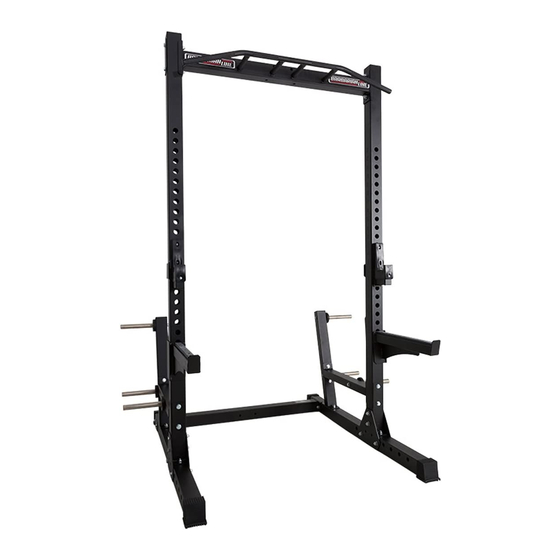

- Seite 1 AUFBAUANLEITUNG OWNER`S MANUAL BB-9035 Profi Half Rack...
-
Seite 2: Inhaltsverzeichnis
.…………….…………….…. 10 Explosionszeichnung / Exploded View .…………….…………….…. 11-14 Montage / Assembly .…………….…………….…. 15 Wartung & Pflege / Maintenance .…………….…………….…. 16 Training Tips .…………….…………….…. 17 Übungsanleitung / Exercise Instruction .…………….…………….…. 18 Service ……………………………..19 Zertifikat / Certificate BB-9035 Profi Half Rack... -
Seite 3: Allgemeines General
Use of this equipment is only approved for the purpose it is intended for. The specified capacity limits should not be exceeded. We reserve the right to make design alterations, which always serve to improve the device. The legal warranty applies. ©2008 IFS GmbH - All rights reserved. BB-9035 Profi Half Rack... -
Seite 4: Sicherheitshinweise
Eventuelle Bodenunebenheiten müssen ausgeglichen werden. Hinterlassen Sie das Fitnessgerät so, dass sich niemand an herausstehenden Teilen verletzen kann. Hantelscheiben und Stangen sind nach dem Training vom Gerät zu nehmen und in die dafür vorgesehenen Ablagesysteme zu verstauen. BB-9035 Profi Half Rack... -
Seite 5: Sicherheitshinweise / Safety Instructions
Place the exercise machine such that no one can hurt his or herself on protruding parts. Weight plates and bars should be removed from the machine after training, and stowed away in the storage system provided. BB-9035 Profi Half Rack... -
Seite 6: Montagehinweise Assembly Instructions
After assembly, check to make sure all of the machine’s functions are correct. If problems occur in this respect, check the machine for any errors in assembly with attention to the individual installation steps. Should you be unable to resolve the error, then please consult your dealer. BB-9035 Profi Half Rack... -
Seite 7: Notwendige Werkzeuge / Tools
NOTWENDIGE WERKZEUGE NEEDED TOOLS Schraubenschlüssel / Screw-wrench Grösse/Size: 19mm Inbusschlüssel / Allen-wrench Grösse / Size: 8mm BB-9035 Profi Half Rack... -
Seite 8: Datenblatt Data Sheet
Belastbarkeit Hantescheibenablage / Loading capacity Weight-Plate storage: je Aufnahmedorn / per arbor: Max. 100KG Verteilt auf alle Aufnahmedorne / distributed to all arbors: Max. 250KG/je Seite/per Site Belastbarkeit Klimmzugstange / Loading capacity Chin-Up bar: Max. 200KG BB-9035 Profi Half Rack... -
Seite 9: Stückliste Part List
Label "BARBARIAN-LINE" Numerary 1-23 Rectangular End-Cap 75x50mm Reinforcementplate 100xØ14/65 Reinforcementplate 120xØ14/65 Rubber-Bumper_Ø30/Ø80x15 Rubber-Shoe for Tube 75x75 Screw M12x100mm Screw M12x30 Screw M12x75mm Square End-Cap 75x75mm Strap-Rubber-Bumper, 350*25*10mm Thread-forming countersink screw 4,2 x16mm Washer M12 Weight_Horn Ø30x290mm BB-9035 Profi Half Rack... -
Seite 10: Explosionszeichnung Exploded View
EXPLOSIONSZEICHNUNG EXPLODED VIEW BB-9035 Profi Half Rack... -
Seite 11: Montage / Assembly
STEP - 1 BB-9035 Profi Half Rack... - Seite 12 Bauteile exakt ausrichten zu können. Tighten all screws only slightly. You may have to loosen screws again in the course of individual installation steps, in order to precisely align the components. BB-9035 Profi Half Rack...
- Seite 13 Montageschritte eventuell wieder gelöst werden um die Bauteile exakt ausrichten können. Tighten all screws only slightly. You may have to loosen screws again in the course of individual installation steps, in order to precisely align the components. BB-9035 Profi Half Rack...
- Seite 14 STEP – 4 Alle Teile exakt ausrichten und sämtliche Schrauben festziehen. Align all parts accurately and then tighten all screws. BB-9035 Profi Half Rack...
-
Seite 15: Wartung, Pflege Und Sicherheit Maintenance, Care And Safety
The steel cables should be carefully checked daily. In particular, the connection areas at the ends of the cables should be checked for tightness and evidence of fracturing. If the steel cable is damaged, training must be stopped and the cables immediately replaced. Failure to do so can lead to injury! BB-9035 Profi Half Rack... -
Seite 16: Training Tips
Pay attention to your breathing. Never hold your breath while exercising. Basically, exhale when lifting the weight and inhale when lowering it. Make sure you are sufficiently familiar with all of the machine’s functions. BB-9035 Profi Half Rack... -
Seite 17: Übungsanleitung / Exercise Instruction
ÜBUBGSANLEITUNG EXERCISE INSTRUCTIONS BB-9035 Profi Half Rack... -
Seite 18: Service
Only use original spare parts to assure your warranty claims, and to avoid the risk of an injury. Making your own modifications to the machine, and non-compliance with capacity limits, render all warranty claims null and void. Importeur: IFS GmbH Lothforster Strasse 46 41849 Wassenberg BB-9035 Profi Half Rack... -
Seite 19: Zertifikat / Certificate
BB-9035 Profi Half Rack...
