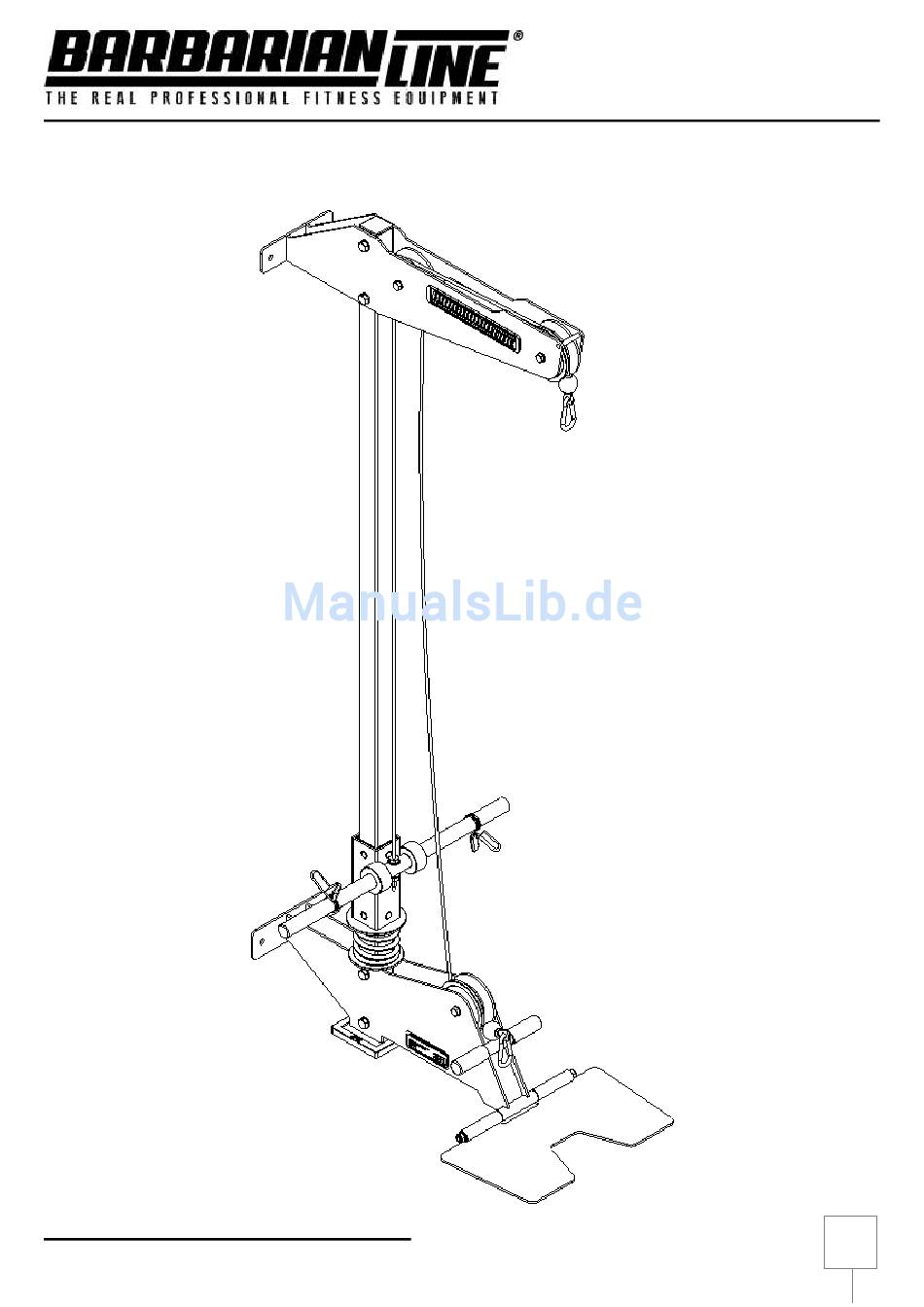

- Seite 1 AUFBAUANLEITUNG OWNER`S MANUAL BB-9077 Wall Mounted Lat-Machine...
-
Seite 2: Inhaltsverzeichnis
.…………….…………….…. 08 Datenblatt / Data Sheet .…………….…………….…. 09 Stückliste / Part List .…………….…………….…. 10 Explosionszeichnung / Exploded View .…………….…………….…. 11-16 Montage / Assembly .…………….…………….…. 17 Wartung & Pflege / Maintenance .…………….…………….…. 18 Training Tips .…………….…………….…. 19 Service BB-9077 Wall Mounted Lat-Machine... -
Seite 3: Allgemeines General
Use of this equipment is only approved for the purpose it is intended for. The specified capacity limits should not be exceeded. We reserve the right to make design alterations, which always serve to improve the device. The legal warranty applies. ©2008 IFS GmbH - All rights reserved. BB-9077 Wall Mounted Lat-Machine... -
Seite 4: Sicherheitshinweise
Eventuelle Bodenunebenheiten müssen ausgeglichen werden. Hinterlassen Sie das Fitnessgerät so, dass sich niemand an herausstehenden Teilen verletzen kann. Hantelscheiben und Stangen sind nach dem Training vom Gerät zu nehmen und in die dafür vorgesehenen Ablagesysteme zu verstauen. BB-9077 Wall Mounted Lat-Machine... -
Seite 5: Sicherheitshinweise / Safety Instructions
Place the exercise machine such that no one can hurt his or herself on protruding parts. Weight plates and bars should be removed from the machine after training, and stowed away in the storage system provided. BB-9077 Wall Mounted Lat-Machine... -
Seite 6: Montagehinweise Assembly Instructions
After assembly, check to make sure all of the machine’s functions are correct. If problems occur in this respect, check the machine for any errors in assembly with attention to the individual installation steps. Should you be unable to resolve the error, then please consult your dealer. BB-9077 Wall Mounted Lat-Machine... -
Seite 7: Notwendige Werkzeuge / Tools
NOTWENDIGE WERKZEUGE NEEDED TOOLS Schraubenschlüssel / Screw-wrench Grösse/Size: 17 / 19 BB-9077 Wall Mounted Lat-Machine... -
Seite 8: Datenblatt Data Sheet
DATENBLATT DATA SHEET Eigengewicht Gerät/ Dead Weight: ca. 42KG Max. Belastbarkeit gesamt / Max. total Load capacity: Max. 130KG BB-9077 Wall Mounted Lat-Machine... -
Seite 9: Stückliste Part List
UPPER CABLE UNIT LOWER CABLE UNIT BB-LABEL-260-3D Certification Label PVC Slide Bar 70/50/200 Compression Spring Rubber-Bumper 30/60x30 Rubber-Tube Rubber-Shoe Screw M10x75 Screw M12x80 Auto-Lock-Nut M10 Auto-Lock-Nut M12 Washer M10 Washer M12 Square End-Cap 50x50mm Spring Collar Carabiner Chain BB-9077 Wall Mounted Lat-Machine... -
Seite 10: Explosionszeichnung Exploded View
EXPLOSIONSZEICHNUNG EXPLODED VIEW BB-9077 Wall Mounted Lat-Machine... -
Seite 11: Montage / Assembly
STEP - 1 BB-9077 Wall Mounted Lat-Machine... - Seite 12 Montageschritte eventuell wieder gelöst werden um die Bauteile exakt ausrichten zu können. Tighten the screws only slightly. You may have to loosen screws again in the course of individual installation steps, in order to precisely align the components. BB-9077 Wall Mounted Lat-Machine...
- Seite 13 Als Montagehilfe etwas zusammen geknülltes Zeitungspapier zwischen die Gleitleisten (12) stecken um diese zu fixieren. All parts fit together as shown. As mounting aid stick some crumpled newspaper between the slide rails (12) to fixing them. BB-9077 Wall Mounted Lat-Machine...
- Seite 14 STEP - 4 Alle Teile exakt ausrichten und sämtliche Schrauben festziehen. Align all parts accurately and then tighten all screws. BB-9077 Wall Mounted Lat-Machine...
- Seite 15 Take care for power lines, water pipes or gas pipes inside the wall before starting to drill! Rawl plugs suitable for the respective wall/ceiling material must be used! Screws with a dia of Ø12mm are required! Bohrlöcher anzeichnen Marking the drill holes BB-9077 Wall Mounted Lat-Machine...
- Seite 16 Seile wie dargestellt einfädeln. Eventuell müssen zum Einbau der Seile die Seilrollen ausgebaut werden. Check the cable pulleys for free rotating! Thread in the cables as shown. Possibly you have to remove the pulleys before you can mount the cables. BB-9077 Wall Mounted Lat-Machine...
-
Seite 17: Wartung, Pflege Und Sicherheit Maintenance, Care And Safety
(the procedure for this is described in the mounting instruction). If the steel cable is damaged, training must be stopped and the cables immediately replaced. Failure to do so can lead to injury! BB-9077 Wall Mounted Lat-Machine... -
Seite 18: Training Tips
Pay attention to your breathing. Never hold your breath while exercising. Basically, exhale when lifting the weight and inhale when lowering it. Make sure you are sufficiently familiar with all of the machine’s functions. BB-9077 Wall Mounted Lat-Machine... -
Seite 19: Service
Only use original spare parts to assure your warranty claims, and to avoid the risk of an injury. Making your own modifications to the machine, and non-compliance with capacity limits, render all warranty claims null and void. Importeur: IFS GmbH Lothforster Strasse 46 41849 Wassenberg BB-9077 Wall Mounted Lat-Machine...
