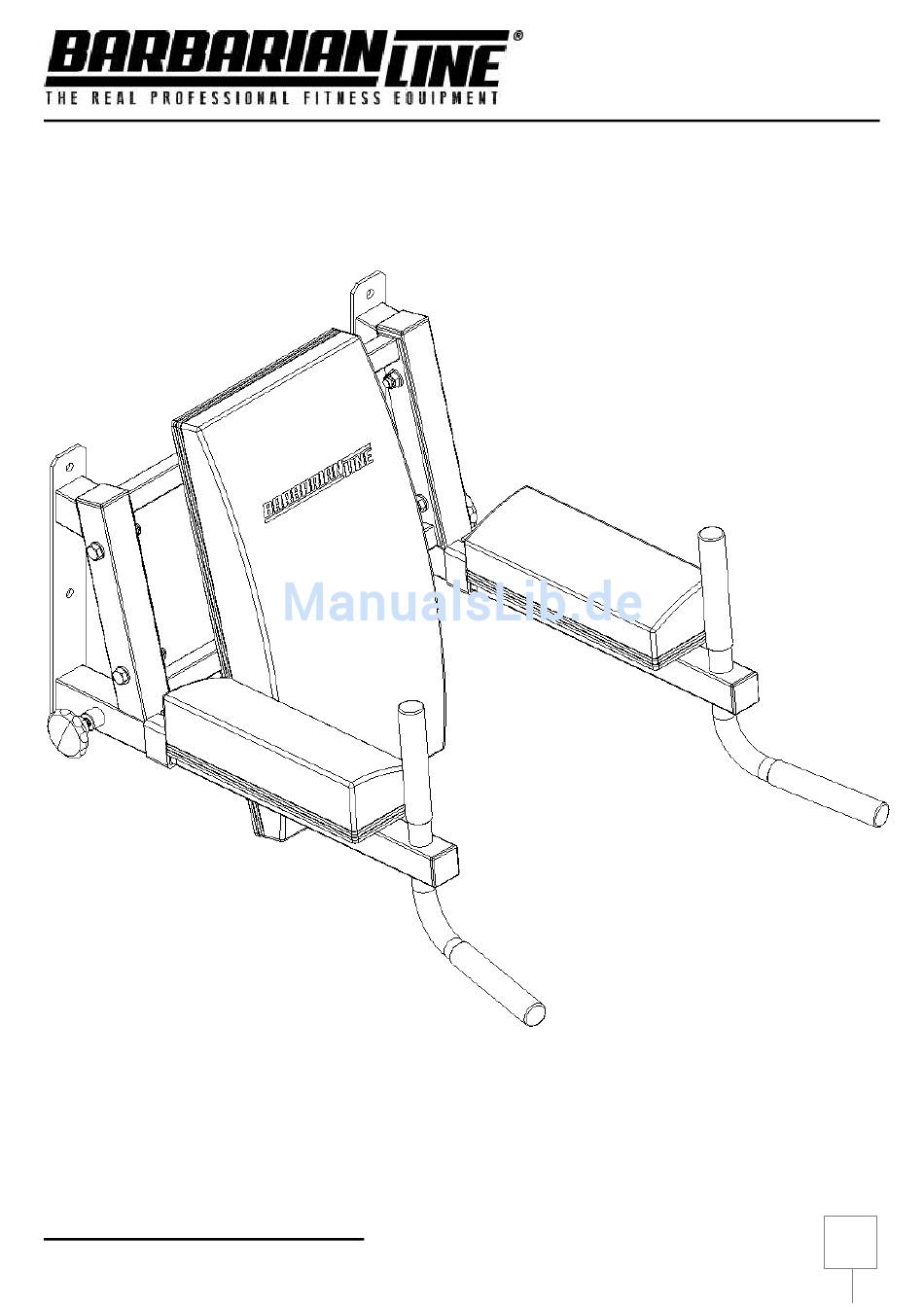

- Seite 1 AUFBAUANLEITUNG OWNER`S MANUAL BB-9018 DIP-AB Kombostation...
-
Seite 2: Inhaltsverzeichnis
.…………….…………….…. 09 Stückliste / Part List .…………….…………….…. 10 Explosionszeichnung / Exploded View .…………….…………….…. 11-13 Montage / Assembly .…………….…………….…. 14 Wartung & Pflege / Maintenance .…………….…………….…. 15 Training Tips .…………….…………….…. 16 Übungsanleitung / Exercise Instruction .…………….…………….…. 17 Service BB-9018 DIP-AB Kombostation... -
Seite 3: Allgemeines General
Use of this equipment is only approved for the purpose it is intended for. The specified capacity limits should not be exceeded. We reserve the right to make design alterations, which always serve to improve the device. The legal warranty applies. ©2008 IFS GmbH - All rights reserved. BB-9018 DIP-AB Kombostation... -
Seite 4: Sicherheitshinweise
Eventuelle Bodenunebenheiten müssen ausgeglichen werden. Hinterlassen Sie das Fitnessgerät so, dass sich niemand an herausstehenden Teilen verletzen kann. Hantelscheiben und Stangen sind nach dem Training vom Gerät zu nehmen und in die dafür vorgesehenen Ablagesysteme zu verstauen. BB-9018 DIP-AB Kombostation... -
Seite 5: Sicherheitshinweise / Safety Instructions
Any unevenness on the floor must be compensated for. Place the exercise machine such that no one can hurt his or herself on protruding parts. Weight plates and bars should be removed from the machine after training, and stowed away in the storage system provided. BB-9018 DIP-AB Kombostation... -
Seite 6: Montagehinweise Assembly Instructions
After assembly, check to make sure all of the machine’s functions are correct. If problems occur in this respect, check the machine for any errors in assembly with attention to the individual installation steps. Should you be unable to resolve the error, then please consult your dealer. BB-9018 DIP-AB Kombostation... -
Seite 7: Notwendige Werkzeuge / Tools
NOTWENDIGE WERKZEUGE NEEDED TOOLS Schraubenschlüssel / Screw-wrench Grösse/Size: 19mm Inbusschlüssel / Allen-wrench Grösse / Size: 6mm BB-9018 DIP-AB Kombostation... -
Seite 8: Datenblatt Data Sheet
DATENBLATT DATA SHEET Eigengewicht Gerät/ Dead Weight: ca. 19KG Belastbarkeit Gerät gesamt / Total loading capacity of Equipment: Max. 240KG BB-9018 DIP-AB Kombostation... -
Seite 9: Stückliste Part List
Item No.: Quantity Part-Name 9018(-)-3001-L 9018(-)-3001-R 9018(1)-1001_L 9018(1)-1001_R 9018(1)-2001 9019(2 ) - PAD-01 9019(2 ) - PAD-02 Auto-Lock-Nut M12 Button-Head-Screw M10x50 Button-Head-Screw M10x70 Knob Rubber-Grip Screw M12x75mm Square End-Cap 30x30mm Square End-Cap 45x45mm Square End-Cap 50x50mm Washer M12 BB-9018 DIP-AB Kombostation... -
Seite 10: Explosionszeichnung Exploded View
EXPLOSIONSZEICHNUNG EXPLODED VIEW BB-9018 DIP-AB Kombostation... -
Seite 11: Montage / Assembly
MONTAGE / MOUNT BB-9018 DIP-AB Kombostation... - Seite 12 STEP - 1 Alle Teile exakt ausrichten und sämtliche Schrauben festziehen. Align all parts accurately and then tighten all screws. BB-9018 DIP-AB Kombostation...
- Seite 13 STEP – 2 BB-9018 DIP-AB Kombostation...
-
Seite 14: Wartung, Pflege Und Sicherheit Maintenance, Care And Safety
The steel cables should be carefully checked daily. In particular, the connection areas at the ends of the cables should be checked for tightness and evidence of fracturing. If the steel cable is damaged, training must be stopped and the cables immediately replaced. Failure to do so can lead to injury! BB-9018 DIP-AB Kombostation... -
Seite 15: Training Tips
Pay attention to your breathing. Never hold your breath while exercising. Basically, exhale when lifting the weight and inhale when lowering it. Make sure you are sufficiently familiar with all of the machine’s functions. BB-9018 DIP-AB Kombostation... -
Seite 16: Übungsanleitung / Exercise Instruction
ÜBUBGSANLEITUNG EXERCISE INSTRUCTIONS BB-9018 DIP-AB Kombostation... -
Seite 17: Service
Only use original spare parts to assure your warranty claims, and to avoid the risk of an injury. Making your own modifications to the machine, and non-compliance with capacity limits, render all warranty claims null and void. Importeur: IFS GmbH Lothforster Strasse 46 41849 Wassenberg BB-9018 DIP-AB Kombostation...
