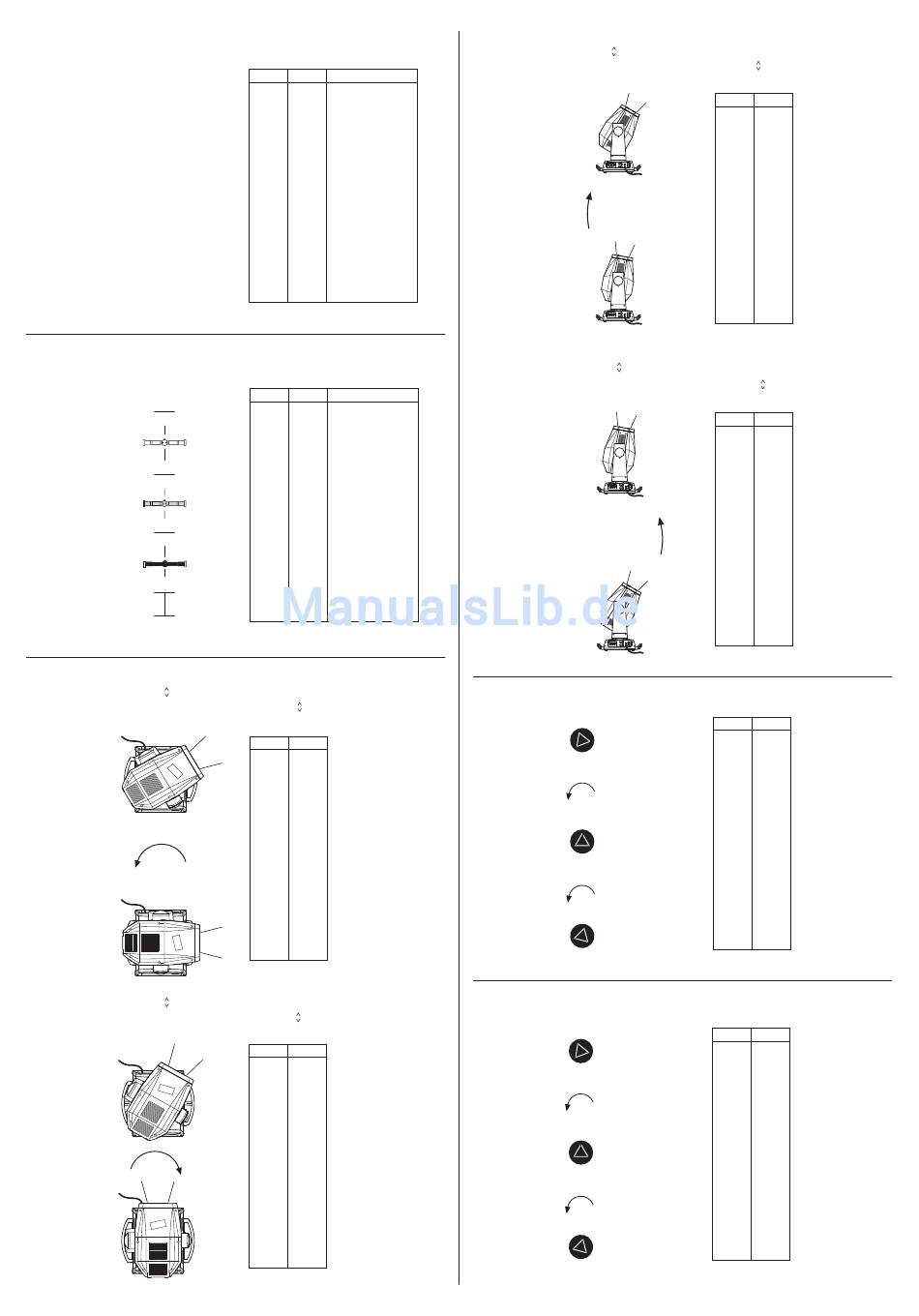

• RESET - channel: 23 (Stnd) - 23 (16 b) - 27 (Extn)
• LAMP CONTROL (only with option Ldmx On) - channel: 24 (Stnd) - 24 (16 b) - 28 (Extn)
ON
ON
ON
ON
OFF
OFF
• PAN FINE - channel: 25 (16 b) - 24 (Extn)
Operation with option Pan Off
(Tilt conventionally represented at 15% and option Til
Operation with option Pan On
(Tilt conventionally represented at 15% and option Til
ALPHA SPOT HPE 1200
BIT % EFFECT
255 100 COMPLETE RESET
Complete reset is activated passing
throug the unused range and staying
5 seconds in complete reset levels.
128 50.0 COMPLETE RESET
127 49.7 PAN / TILT RESET
Pan / Tilt reset is activated passing
throug the unused range and staying
5 seconds in Pan / Tilt reset levels.
77 30.0 PAN / TILT RESET
76 29.7 EFFECTS RESET
Effects reset is activated passing
throug the unused range and staying
5 seconds in Effects reset levels.
26 10.0 EFFECTS RESET
25 9.7
UNUSED RANGE
0 0.0
BIT % EFFECT
255 100 LAMP ON (FULL POWER)
Lamp ignition after 5 s
in full power levels.
Immediate transition
from half to full power.
180 70.5
LAMP ON (FULL POWER)
LAMP ON (HALF POWER)
179 70.0
Immediate transition
from full to half power.
Lamp ignition not allowed
in half power.
101 39.5 LAMP ON (HALF POWER)
100 39.0 LAMP OFF
Lamp switch off passing
throug the unused
range and staying 5 s in
Lamp OFF levels.
26 10.0 LAMP OFF
25 9.7
UNUSED RANGE
0 0.0
Off)
BIT %
255 100
0 0.0
Off)
BIT %
255 100
0 0.0
• TILT FINE - channel: 26 (16 b) - 26 (Extn)
Operation with option Til Off
(Pan conventionally represented at 0% and option Pan
Operation with option Til
(Pan conventionally represented at 0% and option Pan Off)
• GOBO 1 FINE - channel: 27 (16 b) - 12 (Extn)
• GOBO 2 FINE - channel: 28 (16 b) - 15 (Extn)
33
Off)
BIT %
255 100
0 0.0
On
BIT %
255 100
0 0.0
BIT %
255 100
127 50.0
0 0.0
BIT %
255 100
127 50.0
0 0.0
