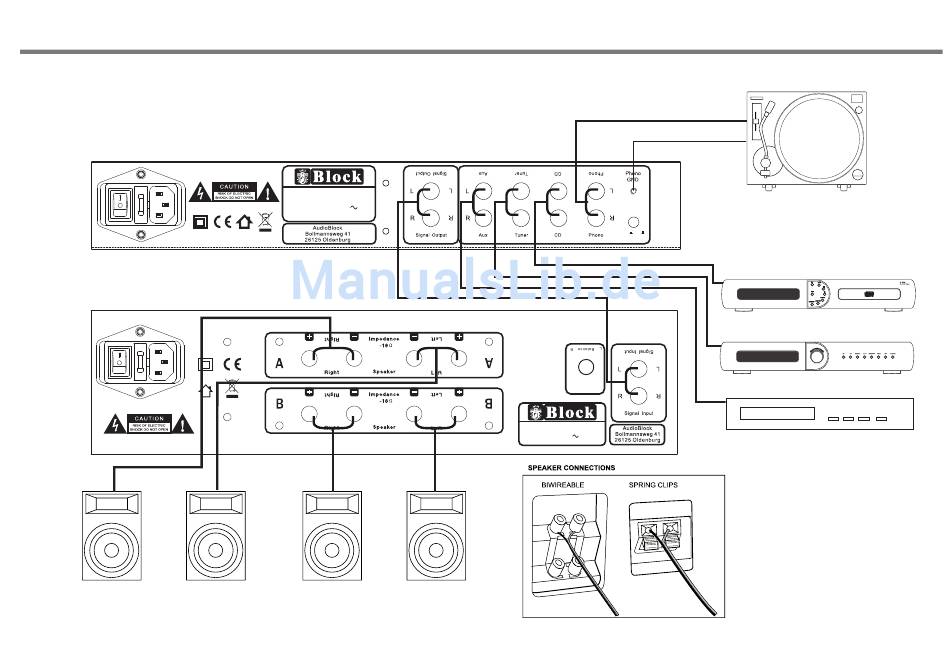

MAKING THE CONNECTIONS

P 100 (Pre-Amplifier)
FUSE:T 500mA 250V
A 100 (Power-Amplifier)
FUSE: T4A 250V
Model: P 100
Hi-Fi Stereo Preamplifier
Power Rating: AC 230V 50Hz
Max Power Consumption: 10W
8
8
P17
MC MM
R Balance L
Model: A 100
Hi-Fi Stereo Power Amplifier
Power Rating: AC 230V 50Hz
Max Power Consumption: 500W
CD PLAYER
TUNER
R 100
CONTROL AM/FM RDS PLL Tuner
OTHER AUDIO SOURCE
