Seite 1

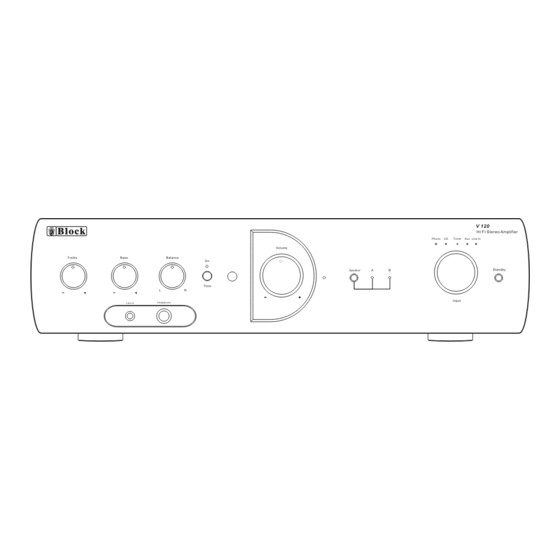

Instruction Manual 12--21 1--11 Hi-Fi Stereo Amplifier V 120 Hi-Fi Stereo Amplifier V 120 V 120 HI FI Stereo Amplifier Phono Tuner Line In Volume Treble Bass Balance Standby Speaker Tone Input Headphone Line In...
Seite 5
Halten Sie das Gerät fern von Feuchtigkeit Achten Sie darauf, dass keine Gegenstände ins Gerät fallen Bitte halten Sie das Gerät fern von Hitze- quellen. Sorgen Sie für genügend Luftzirkulation bei dem Einbau in einem Rack Nehmen Sie das Gerät vom Netz, wenn es Achten Sie darauf, dass keine Sprays oder lange Zeit nicht genutzt wird Chemie an Ihr Gerät kommen...
Seite 6
Sie können Ihren V120 über die Systemfernbedienung (optional) fern bedienen. Richten Sie von Ihrer Sitzposition 1. Nehmen Sie die Batterien aus aus die Fernbedienung in Richtung Ihres Gerätes. ihrer Verpackung 2. Legen Sie die 2 „AAA“ Batterien Achtung: unter Beachtung der Polarität seitenrichtig ein.
Seite 7
1. Funktionstaste AMP STANDBY SPK A/B SPK A+B Mit dieser Taste können Sie (FUNCTION) (INPUT) Einstellungen wie Bass, Hochton, Balance und Reset vornehmen. P-MODE 2. Lautstärke – 3. Standby 4. Eingangswahl-Schalter 5. Mute 6. Lautstärke + INFO Bedienung IR 100 IR100 R100 RADIO STANDBY...
10. Standby Taste: Mit dieser Taste können sie das Gerät An- und ausschalten. 4. Ton direkt Taste. * Wenn der V 120 kein Signal bekommt, stellt er sich nach 3 Minuten auf 5. Fernbedienung Sensor. Standby, um Strom zu sparen.
Seite 9
Main In 1. Power Schalter: Dieser Hauptschalter schaltet das 5. Lautsprecherausgang A: Achten sie darauf, dass +/- Gerät ein oder aus. am Lautsprecher sowie am Gerät übereinstimmen. Beachten Sie: Wenn dieser Schalter auf aus steht, Lautsprecherausgang B: Achten sie darauf, dass +/- ist das Gerät komplett vom Netz getrennt.
Seite 10
Main In CD Spieler Radio R 100 AM/FM RDS PLL Tuner CONTROL Andere Audio Quellen S-9-...
Seite 12
Technische Daten Eingangs Sesitivity Phono: 5mV (MM), 0.2mV(MC) Line in, CD, Tuner, Aux: 300mV Ausgangsleistung 2 x 120 watts RMS Tone Kontrolle Treble: +/- 6dB Bass: +/- 6dB Frequenzgang 10Hz to 30KHz Verzerrung Less than 0.05% Signal noise ratio (A weighted) >...
INTRODUCTION & CONTENTS Introduction Contents Introduction & Contents Congratulations on purchasing this V 120 Amplifier. It has been developed following an extensive research and development program 13,14 that has culminated in what we regard as an exceptional hi-fi product. Safety instructions...
SAFETY INSTRUCTIONS Safety Instructions CAUTION: To reduce the risk of electric shock, do not remove any cover. N O U S E R - S E R V I C E A B L E PA R T S I N S I D E , R E F E R A N Y SERVICING TO QUALIFIED SERVICE PERSONNEL.
REMOTE CONTROL BATTERY INSTALLATION By using the provided remote control unit the V 120 can be controlled from your listening position. To use the remote control unit, point it at the REMOTE SENSOR window of the 1. Remove the battery compartment cover.
Seite 17
REMOTE CONTROL 1.FUNCTION BUTTON. AMP STANDBY SPK A/B SPK A+B Allows access to menu features such (FUNCTION) (INPUT) as bass, treble, balance, reset. Use vol+/- button to adjust the level. P-MODE 2. VOLUME-. 3. STANDBY. 4. INPUT SELECT. 5. MUTE. 6.
3. BALANCE CONTROL KNOB mode, press again return to normal mode TONE ON/OFF SWITCH. * If no signal input for about 3 minutes, V 120 will auto go to standby mode 5. REMOTE SENSOR to save power consumption. 6. VOLUME CONTROL KNOB. Adjust volume level.
REAR PANEL CONNECTIONS Main In LOUDSPEAKER B OUTPUTS . Please ensure that +/- connections are 1. POWER SWITCH: Switches mains power on/off to internal components, however please note that mains power is still made properly between rear of the amplifier and loudspeakers. Ensure applied to this unit even though this switch may be off.
SPECIFICATIONS SPECIFICATIONS Input sensitivity Phono: 5mV (MM), 0.2mV(MC) Line in, CD, Tuner, Aux: 300mV Power output 2 x 120 watts RMS Tone control attenuation Treble: +/- 6dB Bass: +/- 6dB Frequency response 10Hz to 30KHz Distortion Less than 0.05% Signal noise ratio (A weighted) More than 88dB Voltage / Power consumption AC 230V 50Hz / Max 450W...
