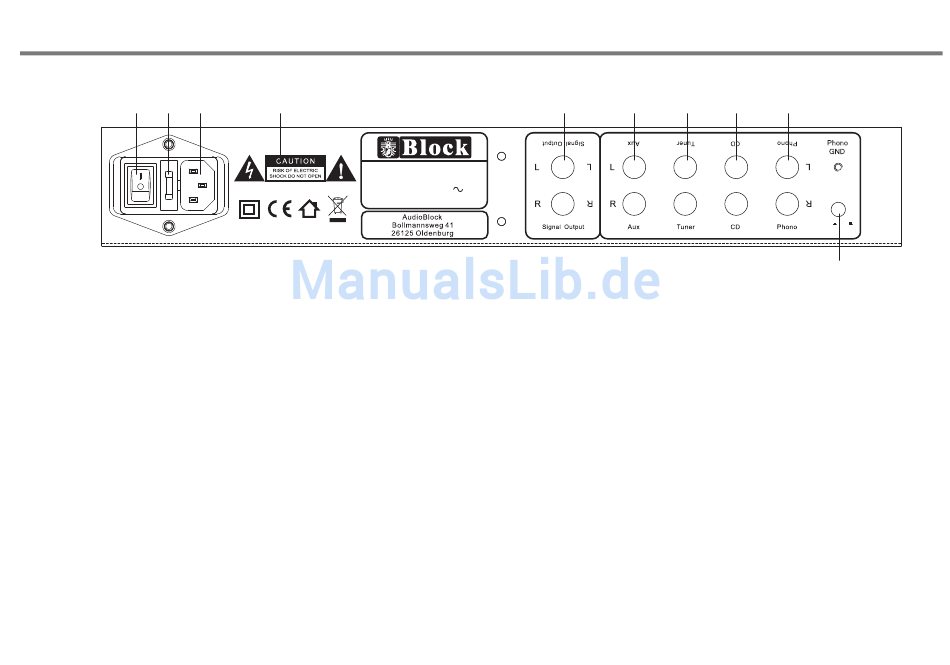

REAR PANEL CONNECTIONS

1 2 3
FUSE:T 500mA 250V
1. POWER SWITCH: Switches mains power on/off to internal
components, however please note that mains power is still
applied to this unit even though this switch may be off.
2. FUSE HOLDER: fitted with 20mm T 4A fuse inside.
" IMPORTANT:"
Remove the mains plug from the mains socket before attempting
to check/ replace the fuse located on this fuse holder.
3.
MAINS CABLE INLET JACK: Please ensure that the input cable strain relief
bush is intact and has not been damaged.
4.
WARNING ICONS: Please be aware that this unit contains high voltages,
and should not be opened, please refer to page 2 of this manual.
4
Model: P 100
Hi-Fi Stereo Preamplifier
Power Rating: AC 230V
Max Power Consumption: 10W
5 6
50Hz
5.
SIGNAL OUTPUT JACK.
6.
AUX INPUT JACK.
7. TUNER INPUT JACK.
8. CD INPUT JACK.
9. PHONO INPUT JACK.
10. MM/MC SELECTION SWITCH.
