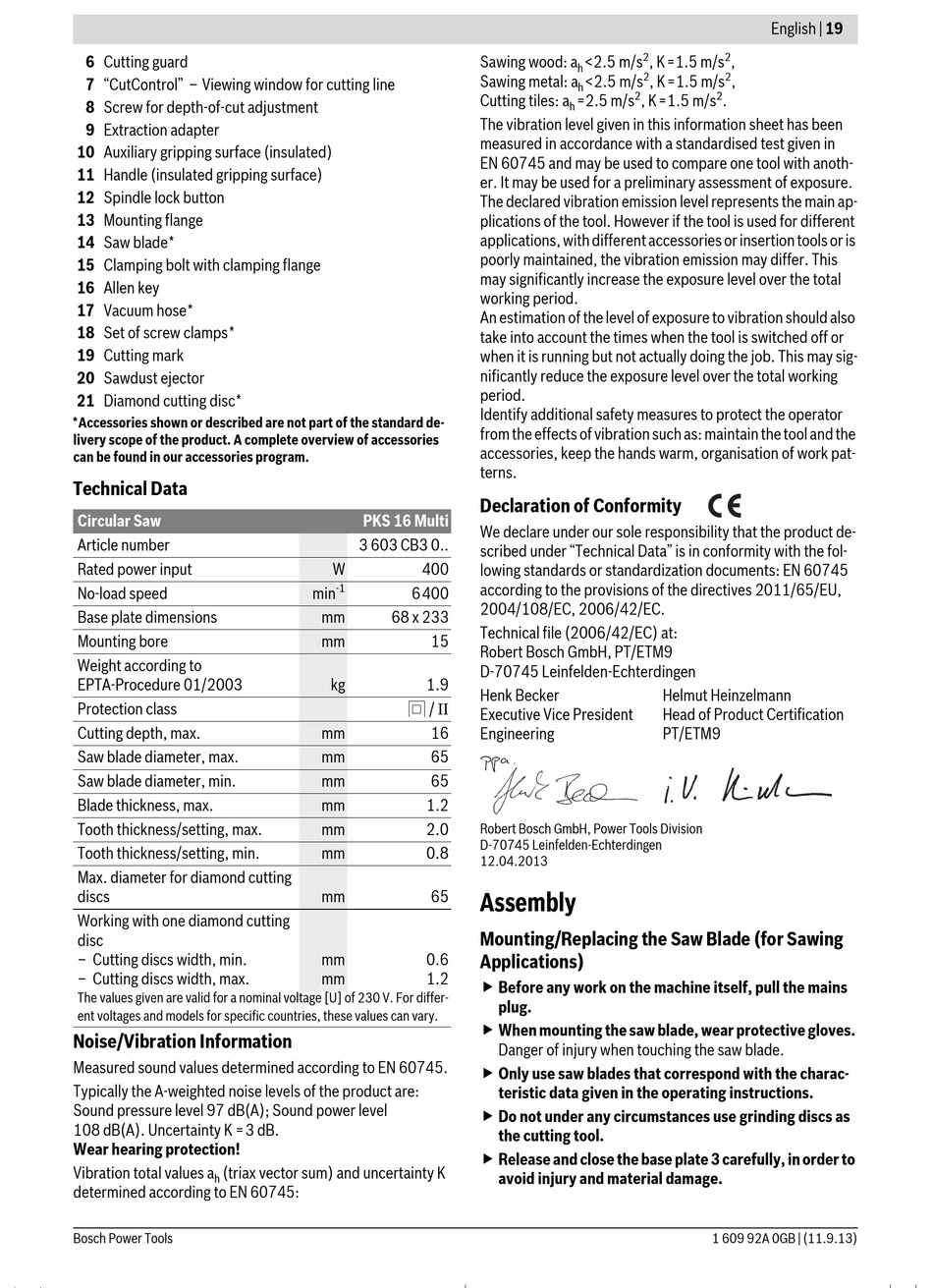

Bosch PKS 16 Multi Bedienungsanleitung Seite 19

6 Cutting guard
7 "CutControl" – Viewing window for cutting line
8 Screw for depth-of-cut adjustment
9 Extraction adapter
10 Auxiliary gripping surface (insulated)
11 Handle (insulated gripping surface)
12 Spindle lock button
13 Mounting flange
14 Saw blade*
15 Clamping bolt with clamping flange
16 Allen key
17 Vacuum hose*
18 Set of screw clamps*
19 Cutting mark
20 Sawdust ejector
21 Diamond cutting disc*
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
Technical Data
Circular Saw
Article number
Rated power input
No-load speed
Base plate dimensions
Mounting bore
Weight according to
EPTA-Procedure 01/2003
Protection class
Cutting depth, max.
Saw blade diameter, max.
Saw blade diameter, min.
Blade thickness, max.
Tooth thickness/setting, max.
Tooth thickness/setting, min.
Max. diameter for diamond cutting
discs
Working with one diamond cutting
disc
– Cutting discs width, min.
– Cutting discs width, max.
The values given are valid for a nominal voltage [U] of 230 V. For differ-
ent voltages and models for specific countries, these values can vary.
Noise/Vibration Information
Measured sound values determined according to EN 60745.
Typically the A-weighted noise levels of the product are:
Sound pressure level 97 dB(A); Sound power level
108 dB(A). Uncertainty K =3 dB.
Wear hearing protection!
Vibration total values a (triax vector sum) and uncertainty K
h
determined according to EN 60745:
Bosch Power Tools
PKS 16 Multi
3 603 CB3 0..
W 400
-1
min 6400
mm 68 x 233
mm 15
kg 1.9
/ II
mm 16
mm 65
mm 65
mm 1.2
mm 2.0
mm 0.8
mm 65
mm 0.6
mm 1.2
2
Sawing wood: a <2.5 m/s
h
2
Sawing metal: a <2.5 m/s
h
2
Cutting tiles: a =2.5 m/s , K=1.5 m/s
h
The vibration level given in this information sheet has been
measured in accordance with a standardised test given in
EN 60745 and may be used to compare one tool with anoth-
er. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main ap-
plications of the tool. However if the tool is used for different
applications, with different accessories or insertion tools or is
poorly maintained, the vibration emission may differ. This
may significantly increase the exposure level over the total
working period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may sig-
nificantly reduce the exposure level over the total working
period.
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work pat-
terns.
Declaration of Conformity
We declare under our sole responsibility that the product de-
scribed under "Technical Data" is in conformity with the fol-
lowing standards or standardization documents: EN 60745
according to the provisions of the directives 2011/65/EU,
2004/108/EC, 2006/42/EC.
Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9
D-70745 Leinfelden-Echterdingen
Henk Becker
Executive Vice President
Engineering
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
12.04.2013
Assembly
Mounting/Replacing the Saw Blade (for Sawing
Applications)
 Before any work on the machine itself, pull the mains
plug.
 When mounting the saw blade, wear protective gloves.
Danger of injury when touching the saw blade.
 Only use saw blades that correspond with the charac-
teristic data given in the operating instructions.
 Do not under any circumstances use grinding discs as
the cutting tool.
 Release and close the base plate 3 carefully, in order to
avoid injury and material damage.
