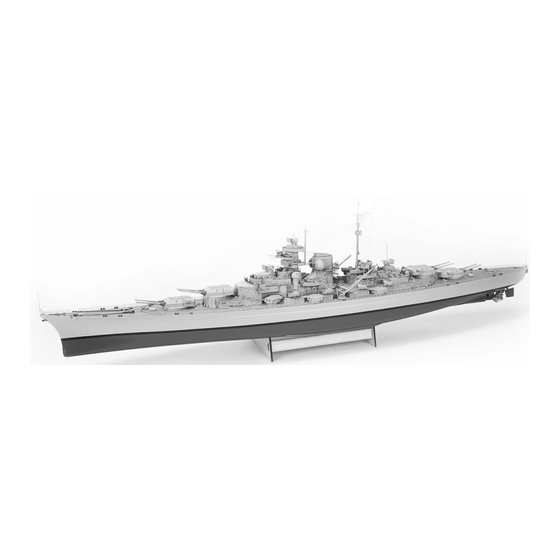

Radio Controlled Premium Boat ARR Bismarck Betriebsanleitung Seite 2 - 13 Instruction Manual Page 14 - 25 CARSON RC Premium Boat Bismarck 500106001...
Sehr geehrter Kunde Wir beglückwünschen Sie zum Kauf Ihres CARSON RC-Modell s, das Diese Bedienungsanleitung ist Bestandteil des Produkts. Bei Nicht- nach dem heutigen Stand der Technik gefertigt wurde. beachtung der Bedienungsanleitung und der enthaltenen Sicher- heitsanweisungen erlischt der Garantieanspruch.
Lieferumfang ......................3 Vorsichtsmaßnahmen beim Betrieb des RC-Modells ......12 Zubehör ........................4 Einschalten ......................12 Sicherheitsanweisungen ..................5 Jetzt soll die Fahrt mit Deinem CARSON-Modellboot Montage Bootsständer ..................6 losgehen!!! ......................12 Anschließen der RC-Anlage ................7 Ausschalten ......................13 Bedienungsanleitung des Fahrregler ............. 8 Wartungspflege ....................13...
Für den Sender 2x: Für den Sender 2x: 500609043 Mignon Batterien 4 St. 500609042 Mignonakkus 2300 mAh 4 St. ODER Fahrakku für Modell: Ladekabel für Fahrakku: Racingpack 9,6V NiMH / 3000 mAh mit Tamiya Stecker 500503028 CARSON RC Premium Boat Bismarck 500106001...
• Versuchen Sie nie, Trockenbatterien zu laden (nur Akkus sind • Das ferngesteuerte Modell darf nur auf geeigneten Gewässern aufladbar). betrieben werden. • Nicht in der Nähe von Personen und Tieren fahren! CARSON RC Premium Boat Bismarck 500106001...
Achten Sie darauf, dass die Beschriftung nach außen zeigt. Ver- kleben Sie dann anschließend die Teile an den mit Pfeilen markierten Stellen mit Sekundenkleber. Fixieren Sie die Teile auf einem Tisch oder ähnlicher ebenen Fläche, sodass der Bootsständer gleichmäßig aufliegt. CARSON RC Premium Boat Bismarck 500106001...
Beachten Sie auch die Hinweise und Infos der mitgelieferten Anleitung für den Fahrregler. Verbinden Sie den Fahrregler, Motor, Empfänger und Akku wie auf der folgenden Skizze zu sehen: Elektromotor Zum Akku schwarz EIN/AUS Schalter Zum Empfänger (Kanal 1) Lenkservo (Kanal 2) CARSON RC Premium Boat Bismarck 500106001...
WICHTIG! Vor dem ersten Einsatz Ihres Fahrreglers bitte folgendes Beachten: - Vor dem Gebrauch Ihres neuen Carson Fahrreglers lesen Sie bitte dieses Handbuch sorgfältig durch! - Die Akkukabel (Plus und Minus) nicht verpolen. Keine Garantie bei Kurzschluss. CARSON RC Premium Boat Bismarck 500106001...
Der Regler hat einen Temperatur-Sensor zum Schutz vor Überhitzung. Es muß für eine gute Kühlluftzufuhr gesorgt werden, andernfalls schaltet der Regler ab. • Motor und Regler erhitzen sich im Fahrbetrieb. Bitte die Komponenten erst abkühlen lassen. CARSON RC Premium Boat Bismarck 500106001...
Entnehmen Sie diese bitte vorsichtig der Verpackung und montieren Sie diese, wie auf dem Titelbild an der Verpackung/Anleitung zu sehen mit etwas Klebstoff, beziehungsweise hängen Sie die Haken der Takelage in die am Deck/Rumpf angebrachten Ösen ein. CARSON RC Premium Boat Bismarck 500106001...
Kanal 2 • Zum Regeln der Fahrgeschwindigkeit betätigen Sie den - nach vorne Knüppel für Vorwärts-/Rückwärtsfahrt (Vorwärtsfahrt, Gas geben) - nach hinten (Rückwärtsfahrt). LINKER HEBEL Vorwärtsfahrt / Gas geben Neutral Rückwärtsfahrt Channel 1 Kanal 1 CARSON RC Premium Boat Bismarck 500106001...
• Bitte überprüfen Sie regelmäßig die Elektronik, Kabel, Gehäuse beschädigen könnte. und andere Teile auf Schäden. Jetzt soll die Fahrt mit Deinem CARSON-Modellboot losgehen!!! Permanenten Motoreinsatz vermeiden. Den Motor nach der Fahrt Fahren Sie mit dem Modell niemals auf öffentlichen Wasserstraßen, da etwa 30 Minuten abkühlen lassen.
Der Überhitzungschutz hat das Modell Den Empfänger ausschalten. Das RC Modell wegen zu starker Erwärmung angehalten etwa 30 Minuten abkühlen lassen Keine Kontrolle Schwacher Akku/Batterie im Sender oder Geladenen Akku oder neue Batterie einlegen Modell CARSON RC Premium Boat Bismarck 500106001...
• Completed model, ready to run • Boat stand • Watertight steering servo 3 kg • Waterproof speed controller 50 A • 3x 380 type electric motor • Manual/operating instructions Removable superstructure Hull Boatstand CARSON RC Premium Boat Bismarck 500106001...
We hope you have lots of fun with your Please read these Operating Instructions carefully before starting to do any kind of work. CARSON model and enjoy a good trip every You should check the most important components and joints after time out! every outing.
• Never use batteries which have already run low, or batteries of a different capacity at the same time. • Always avoid running radio control models in proper waterplaces. • Never load batteries which are not rechargeable. • Keep away from people and animals! CARSON RC Premium Boat Bismarck 500106001...
Ensure that the lettering faces outwards. Then glue the parts together using superglue at the points marked with an arrow. Fix the parts in position on a table or similar flat surface so that the boat stand rests on it evenly. CARSON RC Premium Boat Bismarck 500106001...
Pay attention also to the notes and information included in the instructions supplied for the speed controller. Connect the speed controller, motor, receiver and battery as shown in the diagram below: electric motor to the battery black on/off switch to the receiver (Channel 1) steering servo (Channel 2) CARSON RC Premium Boat Bismarck 500106001...
Before using your speed controller for the first time, please note the following: - Please read this handbook carefully before using your new Carson speed controller! - Do not reverse the polarity (plus and minus) of the battery cable. There is no warranty cover in the event of a short circuit.
The speed controller has a temperature sensor to protect it from overheating. A good supply of cool air must be ensured; otherwise, the controller will switch off. • Motor and controller heat up during operation. Please allow the components to cool down before storing or reusing. CARSON RC Premium Boat Bismarck 500106001...
Please remove them carefully from the packaging and assemble them using a little adhesive as can be seen in the cover picture on the packaging/instructions. Alternatively, insert the hooks of the rigging into the eyes installed in the deck/hull. CARSON RC Premium Boat Bismarck 500106001...
Right Channel 2 Kanal 2 • Operate the stick for forwards/reverse travel - forwards to regulate the driving speed (accelerate) - backwards (reverse). LEFT-HAND LEVER Make headway/ accelerate Neutral Reverse Channel 1 Kanal 1 CARSON RC Premium Boat Bismarck 500106001...
Now You Can Set off on Your Travels with Your CARSON RC Model!! Avoid continuous running. Allow the motor to cool down Never run the model on public waterstreets, as it could endanger the approximately 30 minutes after running. traffic. CARSON RC Premium Boat Bismarck 500106001...
Switch off the receiver. Allow the RC model to due to overheating cool down for approximately 30 minutes No control Weak rechargeable battery/battery in trans- Insert fully charged battery or new battery mitter or model CARSON RC Premium Boat Bismarck 500106001...
Seite 26
Notizen / Notes CARSON RC Premium Boat Bismarck 500106001...
Seite 27
CARSON RC Premium Boat Bismarck 500106001...
Seite 28
CARSON-MODEL SPORT For Germany: Abt. Service Service-Hotline: Mittlere Motsch 9 Mo - Do 8.00 – 17.00 Uhr 96515 Sonneberg 8.00 – 14.30 Uhr 01805–73 33 00 * 14 ct/min aus dem deutschen Festnetz CARSON-MODEL SPORT Werkstraße 1 • D-90765 Fürth/Germany...
