DESCRIPTION OF THE DEVICE

Features

High performance LED-scanner with rotating gobos
• Equipped with 1 LED 20 W
• 50 000 hours LED life
• Comparable to the light output of a 250 W halogen lamp
• DMX-controlled operation or stand alone operation with Master/Slave-function (up to 4 slaves)
• 14 motion macros can be called up via DMX-controller
• Sound-controlled via built-in microphone
• Microphone-sensitivity adjustable via rotary-control
• Fuzzy-Sound-Control: program continues automatically during periods without music or bass-beat
• 7 brilliant, dichroic colors plus white
• Rainbow effect with adjustable speed
• Gobo-wheel with 7 rotating gobos plus open
• With gobo-shake function
• Strobe effect with 1-18 flashes per second
• Strobe effect with adjustable speed
• Random strobe effect
• Manual focus
• Dimmer
• Fan-cooled
• Small and portable
• Lightbeam with 13° radiation angle
• Control-Board with 4-digit display for adjusting the DMX-starting address, Pan/Tilt-Reverse
• ¼" jack-socket for remote control
• Blackout, gobos, colors and Auto/Manual Mode applicable in Stand Alone mode via optional EUROLITE
RC-1 remote control
• Advantages of LED-technology: extremely long life, low power consumption, minimal heat emission,
defacto maintenance free with brilliant light radiation
• DMX-control via every standard DMX-controller

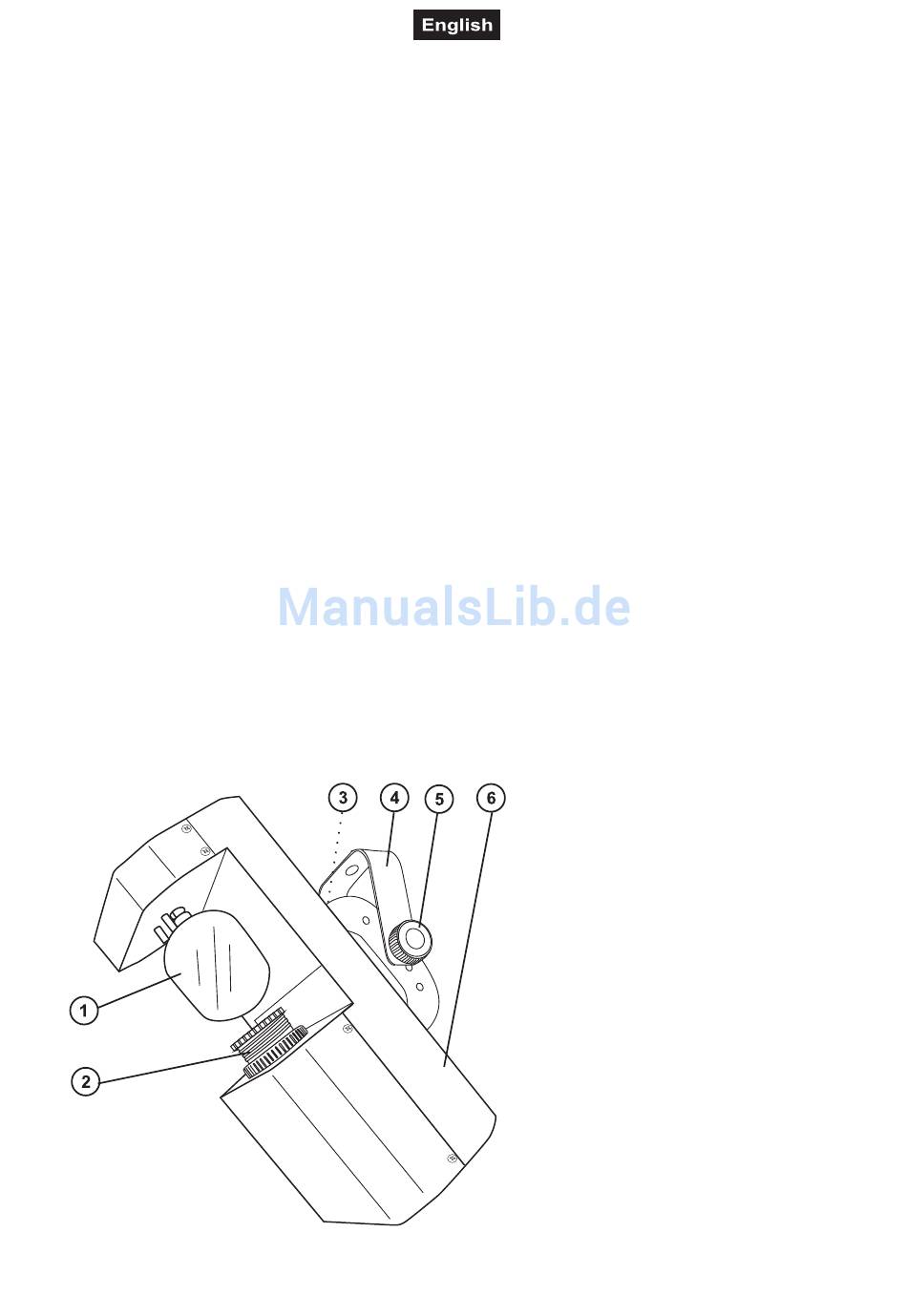

Overview

(1) Mirror
(2) Objective-lens
(3) Safety eyelet
(4) Mounting bracket
(5) Fixation screw
(6) Housing cover
