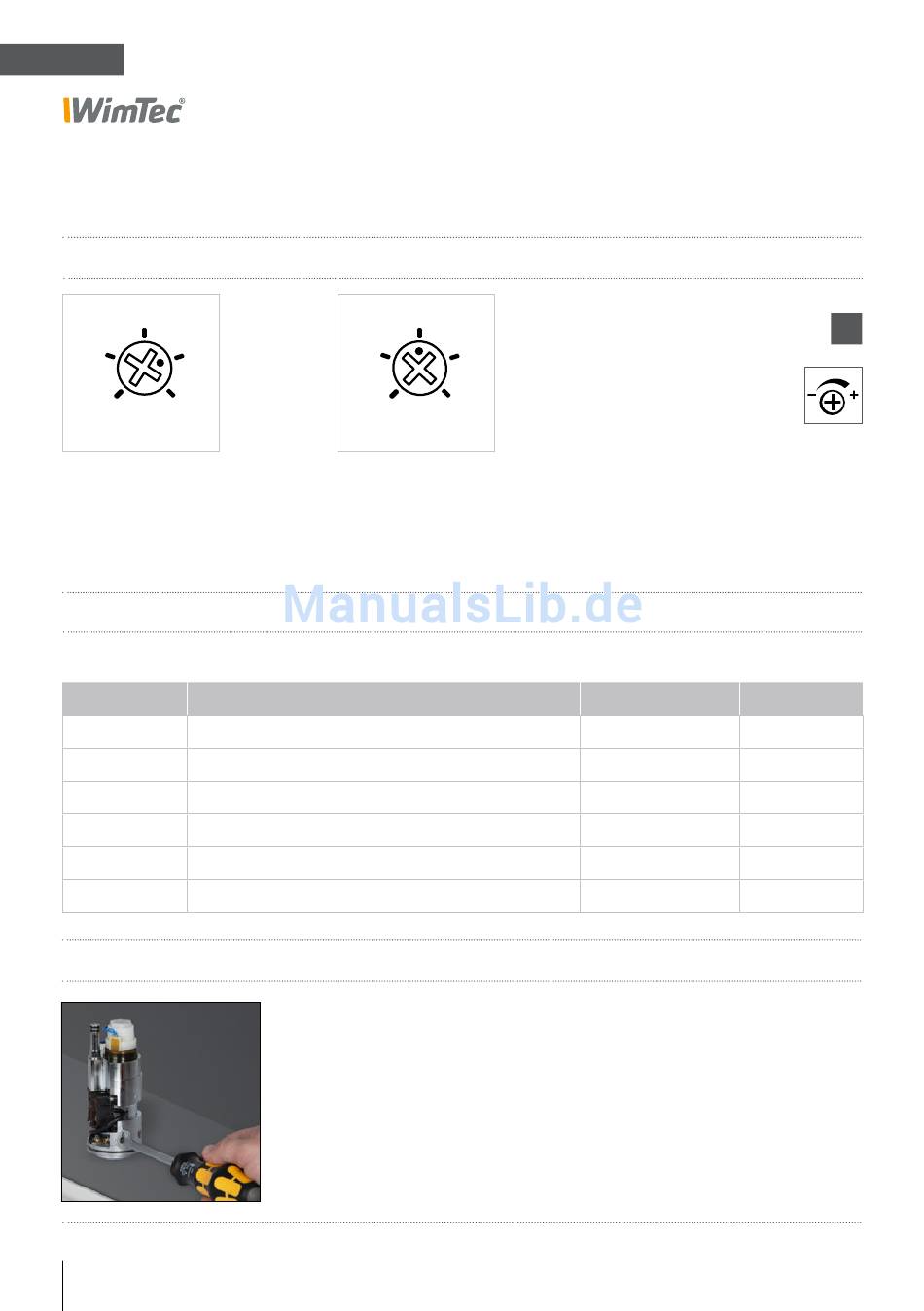

Configuring the functions

Setting controls
12
6 24
3 48
h
1. Interval control
for intelligent stagnation
rinse, default setting 24 h
(setting range 3 - 48 h).
DIP switches:
Function activation – DIP switch 1–6:
DIP switch Function
1 Active range (ON = 15 cm, OFF = 12 cm)
2 Cleaning stop
3 Continuous flow
4 Intelligent stagnation rinse
5 Stagnation rinse time (ON = 20 s, OFF = 10 s)
6 Shut-off delay (ON = 3 s, OFF = 1 s)
Temperature setting (only at product variant HDVM - with hidden mixer):
18 Washbasin fitting
60
30
10
s
2. Time control
for flushing stop time,
default setting 1 min
(setting range 10 s - 600 s).
After removing the fitting housing
set the desired temperature at the
side screw by using a screwdriver.
WimTec LOFT
Rule applies to all controls:
300
Move counterclockwise to
600
default setting
decrease the setting.
Move clockwise to
increase the setting.
Description
ON Page 21
OFF Page 21
OFF Page 22
OFF Page 23
OFF Page 23
OFF Page 24
!
