Lag Time (Option "Q2"); Advance Time (Option "Q1"); External Start / External Stop (Option "S"); Door Unlock (Option "M") - NZR ZMZ 0205 Kurzanleitung

5. Special features ZMZ 0215

5.1 Lag time (Option "Q2")

Set the lag-time of the second relay
within the menu „Nachlauf" as
mentioned above.
Function is deactivated by setting
value to „0".
Notice
The lag-relay only needs to be opera-
ted with the identical voltage as the
main relay on circuit board of the
ZMZ 0215.
Münzprüfer

5.2 Advance time (Option "Q1")

Set advance-time within the menu
Einstellungen
„Vorlauf" as mentioned above.
Function is deactivated by setting
value to „0".
Prozessor
EPROM

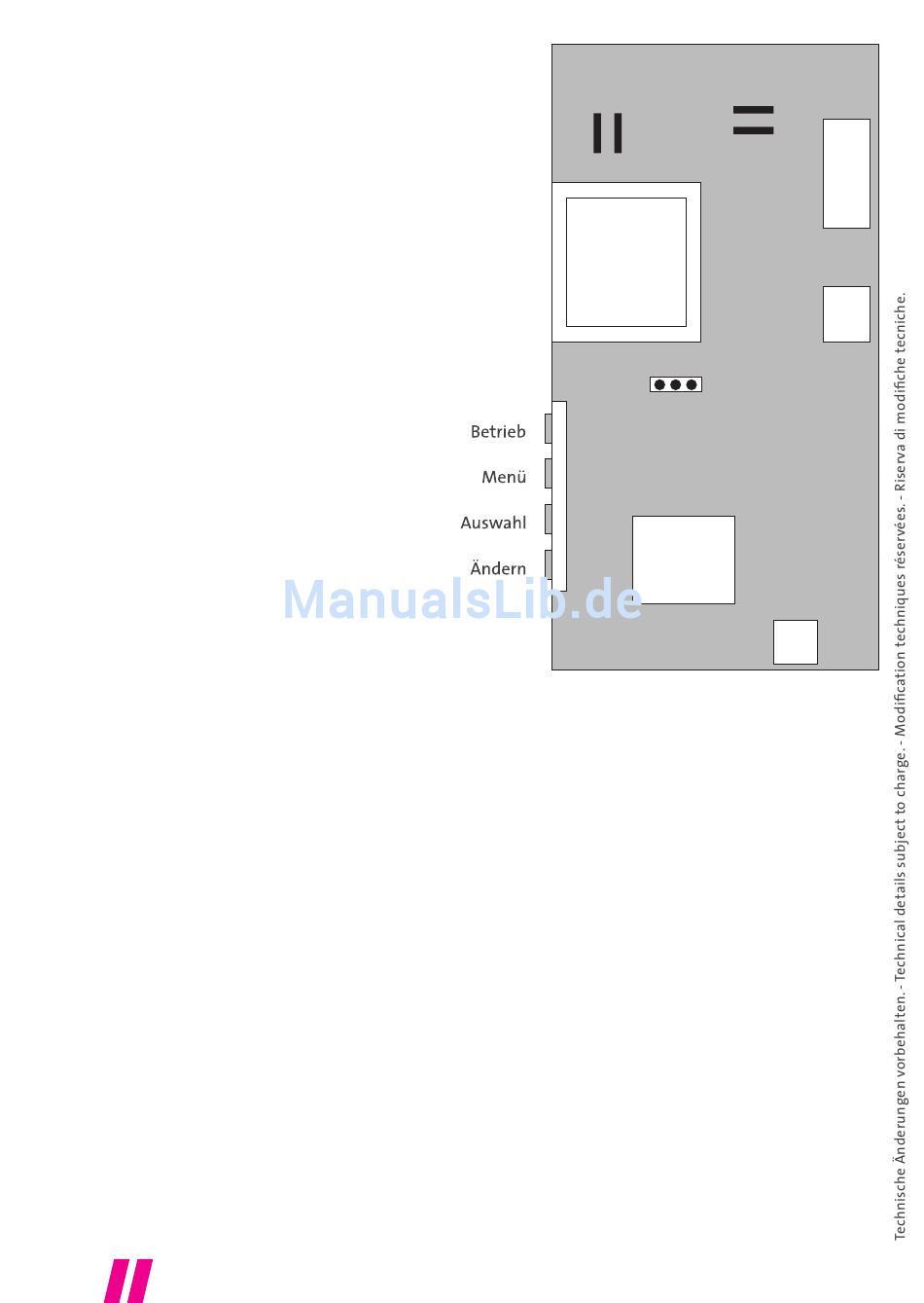

Circuit board ZMZ 215

5.3 External start / external stop (Option "S")

The functions can be switsched on or off by pushing the „Ändern" button within the
menu „ext. Start" or „ext. Stop".
The device is equiped with plug-in for an external switch on the upper terminal cover if
these options are installed.
Keep in mind to use a shielded control cable of max. 3m length to connect the switch.
5.4 Door unlock (Option „M")
To unlock electrical doors of washing machines without insertion of a coin, the device
can be equiped with an additional button. After the basic time passed out, the power
can be switched on again for one minute by pushing the button to open the door. „Taste/
Münze" is diplayed while activated.
NZR – Ihr Partner für Energiemessung
12
