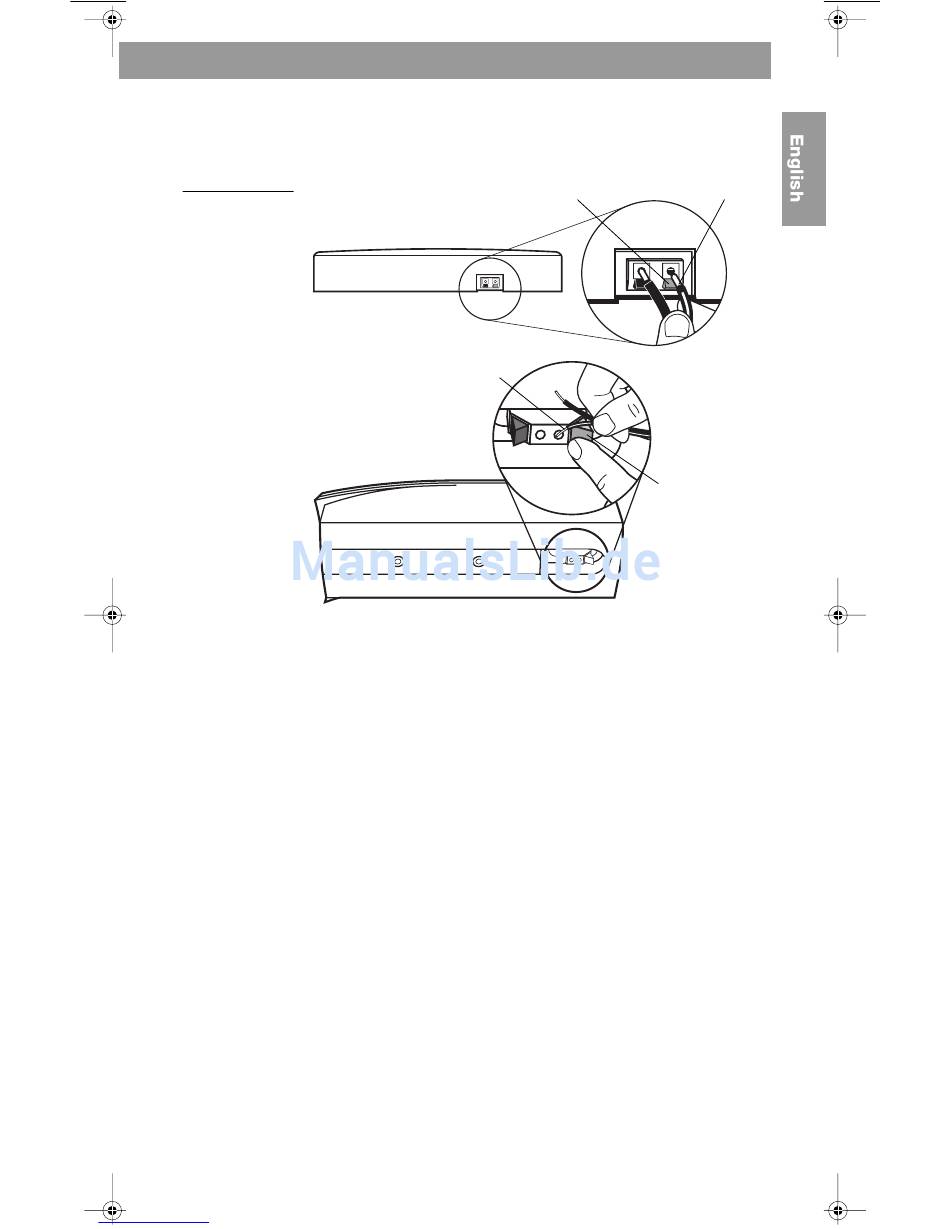

Figure 6
How to make ter-
minal connections
to the center
speaker and sur-
round speakers
Downloaded from
www.Manualslib.com

Make the connections

At the connection end of the speaker, push one terminal lever and
insert the appropriate wire (Figure 6).
1. Connect one end of the speaker cord to your speaker.
A. Attach the marked wire to the red (+) terminal.
B. Attach the plain wire to the black (–) terminal.
2. Connect the other end of the same cord to your receiver or
amplifier (Figure 7).
A. Attach the marked wire to the red (+) terminal.
B. Attach the plain wire to the black (–) terminal.
• The center speaker connects to the CENTER SPEAKER
outputs on the receiver. Some surround sound receivers
have two sets of center channel speaker outputs. Use
either set.
• The left surround speaker connects to the LEFT SUR-
ROUND SPEAKER outputs.
• The right surround speaker connects to the RIGHT SUR-
ROUND SPEAKER outputs.
manuals search engine
Red terminal lever
Marked wire
Setting Up
Marked wire
Red terminal
lever
9
