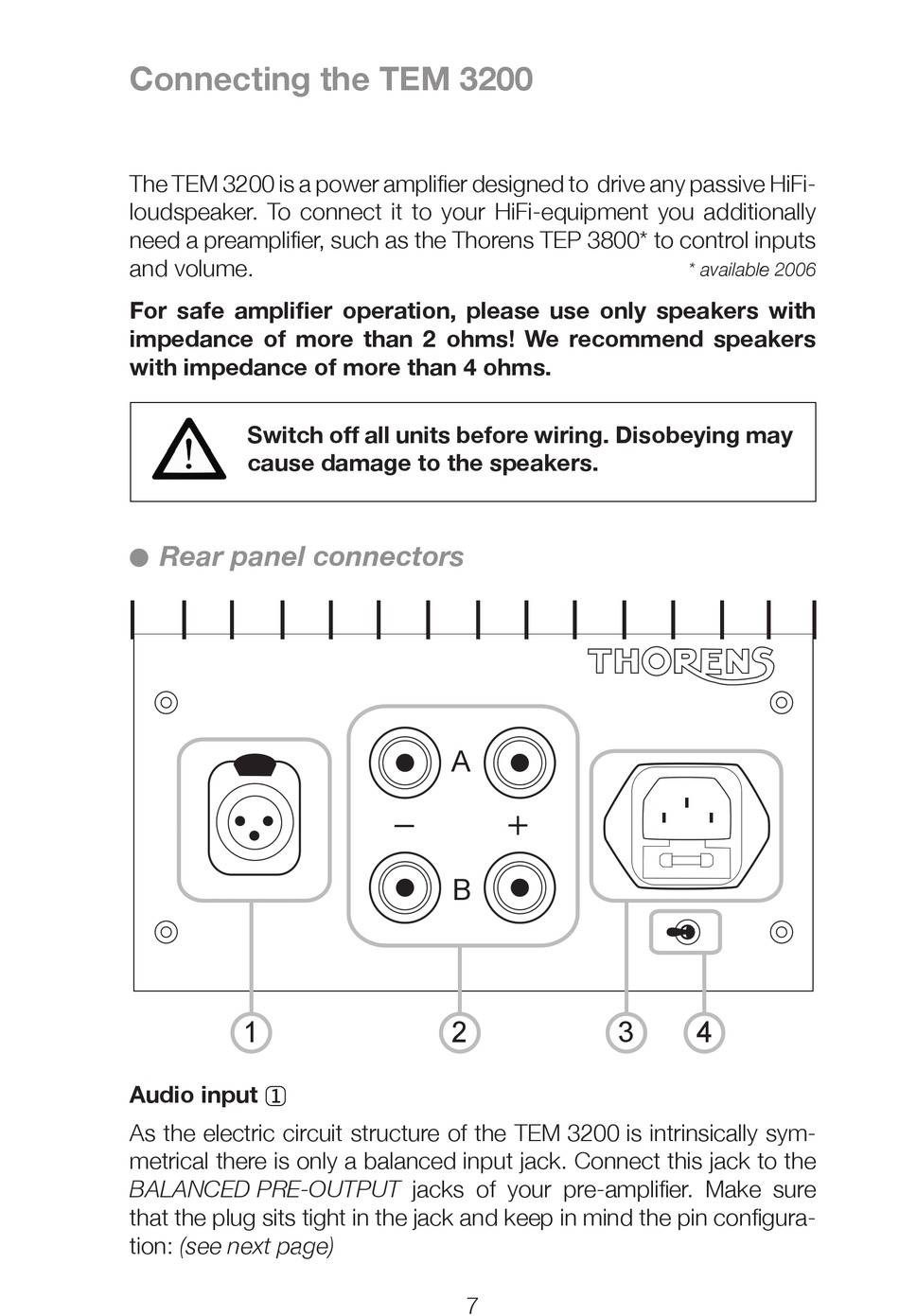

Connecting the TEM 3200

The TEM 3200 is a power amplifier designed to drive any passive HiFi-
loudspeaker. To connect it to your HiFi-equipment you additionally
need a preamplifier, such as the Thorens TEP 3800* to control inputs
and volume.
For safe amplifier operation, please use only speakers with
impedance of more than 2 ohms! We recommend speakers
with impedance of more than 4 ohms.
Switch off all units before wiring. Disobeying may
cause damage to the speakers.

Rear panel connectors

1
Audio input �
As the electric circuit structure of the TEM 3200 is intrinsically sym-
metrical there is only a balanced input jack. Connect this jack to the
BALANCED PRE-OUTPUT jacks of your pre-amplifier. Make sure
that the plug sits tight in the jack and keep in mind the pin configura-
tion: (see next page)
A
+
B
2
7
* available 2006
