1.
Safety instructions
For skilled electricians and instructed
personnel in accordance with national
legislation, including the relevant
standards and, where applicable, in acc.
with IEC 60079-14 on electrical apparatus
for explosive atmospheres.
❒ The light fitting must not be operated in
zone 0 and zone 20 hazardous areas!
❒ The requirements of the
IEC/EN 60079-31regarding excessive
dust deposits and temperature to be
considered from the user.
❒ The technical data indicated on the
light fitting are to be observed!
❒ Changes of the design and modifica-
tions to the light fitting are not permit-
ted!
❒ The light fitting shall be operated as
intended and only in undamaged and
perfect condition!
❒ Only genuine Cooper Crouse-Hinds
(CCH)/CEAG spare parts may be
used for replacement!
❒ Repairs that affect the explosion protection
(see national standard), may only be carried
out by CCH/CEAG or a qualified "electrician"!
The national safety rules and regulations
for prevention of accidents and the
following safety instructions which are
marked with an ( ) in these operating
instruction, will have to be observed!
arrow
1
2
Address
Address
switch 1
switch 2
0
0
0
1
0
2
...
...
1
0
1
1
...
...
...
...
2
0
2
1
...
...
9
9

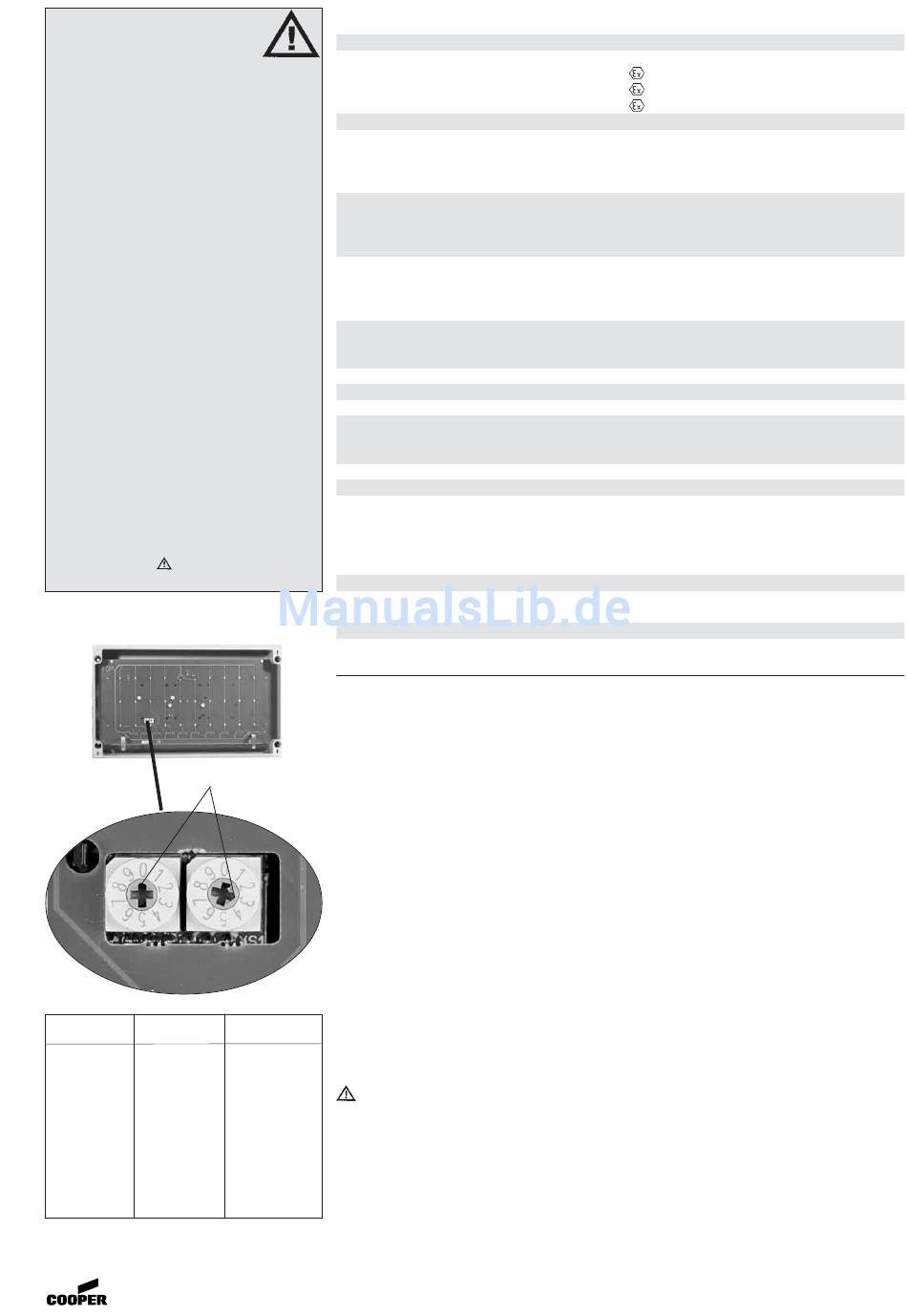

Fig. 6 Addressing
Crouse-Hinds
2.
Technical data
ATEX type examination certificate:
Marking acc. to 94/9/EG and standard:
ATEX
IECE X type examination certificate:
Category of application:
IEC
Rated voltage AC
Ex-Lite 24 V
Ex-Lite
Ex-Lite CG-S
Rated voltage DC:
Ex-Lite 24 V
Ex Lite
Ex Lite CG-S
Rated current
10 V AC/DC:
220 V AC/DC:
Frequency:
Insulation class to IEC/EN 60598:
Degree of protection accd. IEC/EN 60529:
Operation temperature:
(Deviating temperatures possible with special versions.)
Storage temperature in original packing:
Weight:
Supply terminal clamping capacity
Ex-e cable entry
standard thread:
metal thread:
Test torque for M 25 x 1.5 Ex-e cable entry:
Test torque for pressure screw:
Test torque for sceen fixing:
* max. permissable tolerances accd. IEC/EN 60079-0
3.
Conformity with standards
The luminaire is suitable for use in zone 1, 2,
21 and 22 hazardous areas acc. to
EN/IEC 60079-10-1 and EN/IEC 60079-10-2.
It has been designed, manufactured and
tested according to the state of the art and to
DIN EN ISO 9001:2008 and
IEC 80079-34:2011.
The luminaire fulfil further requirements, such
as the EC directive on electromagnetic
compatibility (2004/108/EC).
The luminaire is conform to the standards
specified in the EC-Declaration of conformity,
Luminaire
enclosed separately.
address
Monitoring off
4. Installation Ex-Lite
1
2
The respective national regulations as
...
10
well as the general rules of engineering
11
which apply to the installation and
...
operation of explosion protected
...
apparatus will have to be observed!
20
Transport and storage of the luminaire is
not permissable
permitted in original packing and
specified position only!
not permissable
BVS 09 ATEX E 048
ta
+ 40 °C:
max
ta
+ 50 °C:
max
IECE X BVS 13.0016
ta
+ 40 °C:
Ex e ib mb IIC T6 Gb
max
ta
+ 50 °C:
Ex e ib mb IIC T5 Gb
max
Ex tb IIIC T80°C Db IP66
not permissible
110 - 277* V
220 V - 254 V*
12 - 24 V DC -15%/+ 20%
110 V - 250 V*
195 V - 250 V*
0.05 A
0.025 A
50/60 Hz
I
IP 66
-20 °C to +40°C/+50°C
-40°C to +60°C
approx. 6.2 kg
2 x per terminal:
M25x1.5 for cable
Ø 8-17 mm,
M25x1.5 blanking plug
M20x1.5 thread
5 Nm
3.5 Nm
(for sealing off the cable or the blanking plug)
1.4 Nm
4.1
❒ Unscrew the four recessed head screws
❒ Remove the protective cover.
4.2
The luminaire shall be fitted by using the four
mounting clips with suitable fixing screws
(Ø: 5 mm, fig. 1) onto a suitable surface.
4.3
After opening the cover unscrew the four
screws of the LED-printed board (fig.1).
Let down the LED-printed board (fig.2).
The printed board is protected against falling
down by a safety tie.
Pass the cable (8 to 17 mm) through the
certified Ex cable entry M 25 x 1,5. Use both
sealing inserts for cables from 8 to 12 mm,
and the outer sealing insert only for cables
from 13 to 17 mm.
Pay attention to the proper fit of the remaining
sealing insert in the certified cable gland.
Cooper Crouse-Hinds GmbH
II 2 G Ex e ib mb IIC T6 Gb
II 2 G Ex e ib mb IIC T5 Gb
II 2 D Ex tb IIIC T80°C Db IP66
2.5 mm²
Opening and closing the
light fitting
of the cover
Installation of the fitting
Mains connection
5 5 5 5 5
