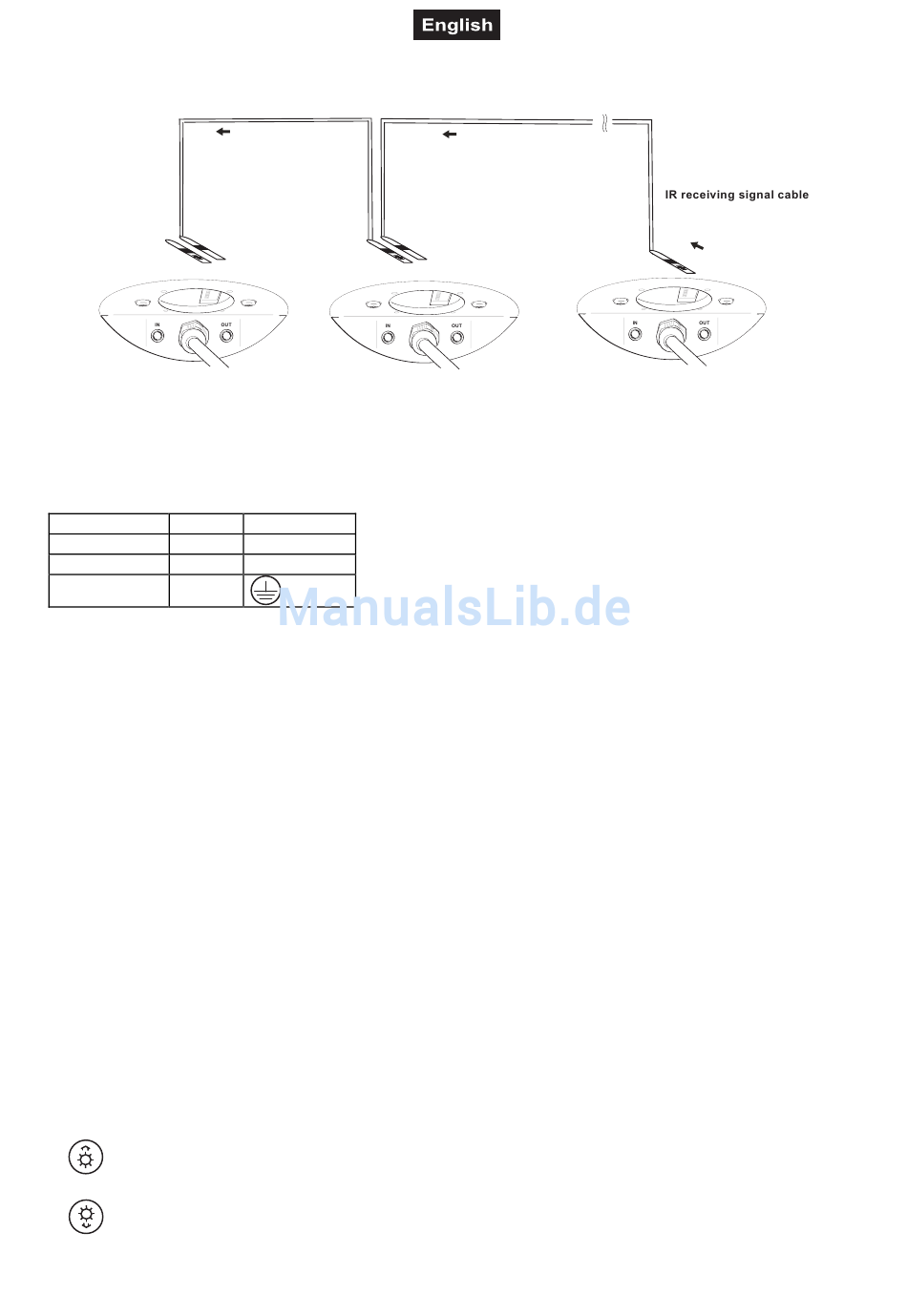

Connection between devices is carried out via special connection cables having stereo jack plugs, included
in delivery.
Connection cable

Connection with the mains

Connect the device to the mains with the power-plug.
The occupation of the connection-cables is as follows:
Cable Pin
Brown Live
Blue Neutral
Yellow/Green Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum
fault current of 30 mA.
Lighting effects must not be connected to dimming-packs.

OPERATION

After connecting the device to the mains, the EUROLITE LED PST-9W TCL IR Spot starts running.

Control via IR remote

The Controller has several buttons with following functions:
RGB+W: Static light with 4 shades each plus white (16 static colors in total)
Flash: 3 color switch: red – green - blue
Strobe: 3 color fade: red – green - blue
Fade: 7 color fade: red – yellow - green - cyan – blue – magenta - white
Smooth: 7 color switch: red – yellow - green - cyan – blue – magenta - white
: In static color mode, brightness up
: In switch or fade mode, color change speed increases
: In static color mode, brightness down
: In switch or fade mode, color change speed decreases
International
L
N
14/16 00062991.DOC, Version 1.1
