WiPro III safe.lock Update
1. Handling
Your WiPro III is equipped with the safe.lock function. This system recognizes original
doors of the vehicle, but ignores the car remote, to close the vehicles security gap.
Handling of alarm system and central locking is always possible with Thitronik remo-
te control 868 (smaller and bigger button) and with the delivered remote control 868
(new).
Every use of the buttons switches to the next state - both buttons can open and close.
The new feature: The smaller button, respectively the upper button with the crossed
speaker symbol works without switching tone. The bigger button, respectively the low-
er button switches always with tone. So passengers can leave the car without waking
up the others. On demand this feature can be disabled using DIP switch number 6:
DIP 6 on (standard)
DIP 6 off
DIP 5 on (standard
for safe.lock)
2. Installation

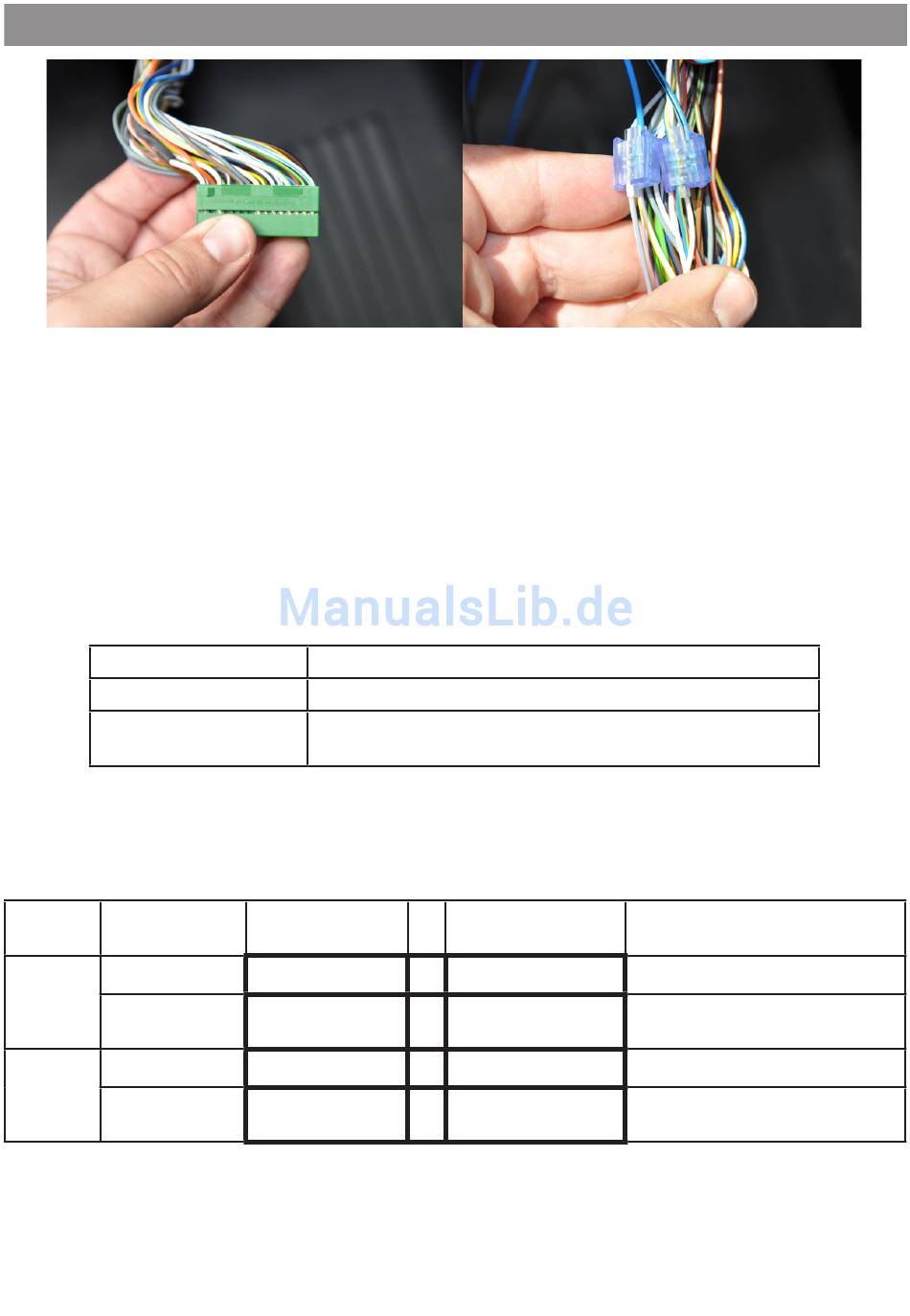

Additional to normal installation to Ducato and similar, there are two wires to be con-
nected to the green connector of the body computer(see picture 1, yellow circle;front of
the body computer/fuse box):
Model Pin Fiat
year (picture 2)
2006- Pin 28
2012
Pin 50
(Euro4)
2012+ Pin 53
Pin 27
Small/upper button switches without signal tone
Small/upper button switches with signal tone
Ignoring the vehicle remote, still evaluation of CAN
doors
Cable color Fiat
→
blue/yellow
→
pink/violet
→
yellow/blue
→
grey/white
3
Cable color
WiPro
blue/black
blue
blue/black
blue
Function
Central locking front
Central locking rear (if
existing)
Central locking front
Central locking rear (if
existing)
4
