2. Adjust the level control (Fig. 2):
Adjuster screw (c) full to right = 0 dB (delivery
condition), full to left = -20 dB
3. Close the housing lid:
Put the housing lid on the housing and press
all the way round. The sheet steel segments
will now be pressed against the inner wall of
the housing. Screw in the central screw.

Technical Data

Type
Order No.
Frequency range
vorward
return
Gain
Output 1
Output 2, 3, 4
Level adjuster
Noise figure
Return loss
Impedance
Output level, IMA = 60 dB
IMA 2 acc. EN 50083-3
IMA 3 acc. EN 50083-3
IMA 3 acc. EN 50083-5
CSO Cenelec 42 ch. 862 MHz
CTB Cenelec 42 ch. 862 MHz
Connected loads
Supply voltage (50 – 60 Hz)
Power consumption
Ambient conditions to EN 60065
Operating temperature range
Degree of protection
Protection class
Housing
Weight
Dimensions W x H x D
Screening attenuation
acc. EN 0083-2, class A
RF connections
Unless otherwise stated, these specifications are typical values which in practice may be higher or lower inside the
tolerance range usual for the branch.
c
GHV 20 M
940 030-061
MHz
MHz 5...65
dB 0
dB -
dB
dB
dB 17
(min. categ. C) (min. categ. C)
Ω
75
dBµV
dBµV
dBµV
dBµV
dBµV
VAC 230
W 3
°C – 25 ... +55
II, totally insulated
IP 20
kg approx. 0.65
mm 150 x 80 x 50
dB 75 min
F connectors
85...862
12
10.5
0...-20
6
16
90
97
103
87
90

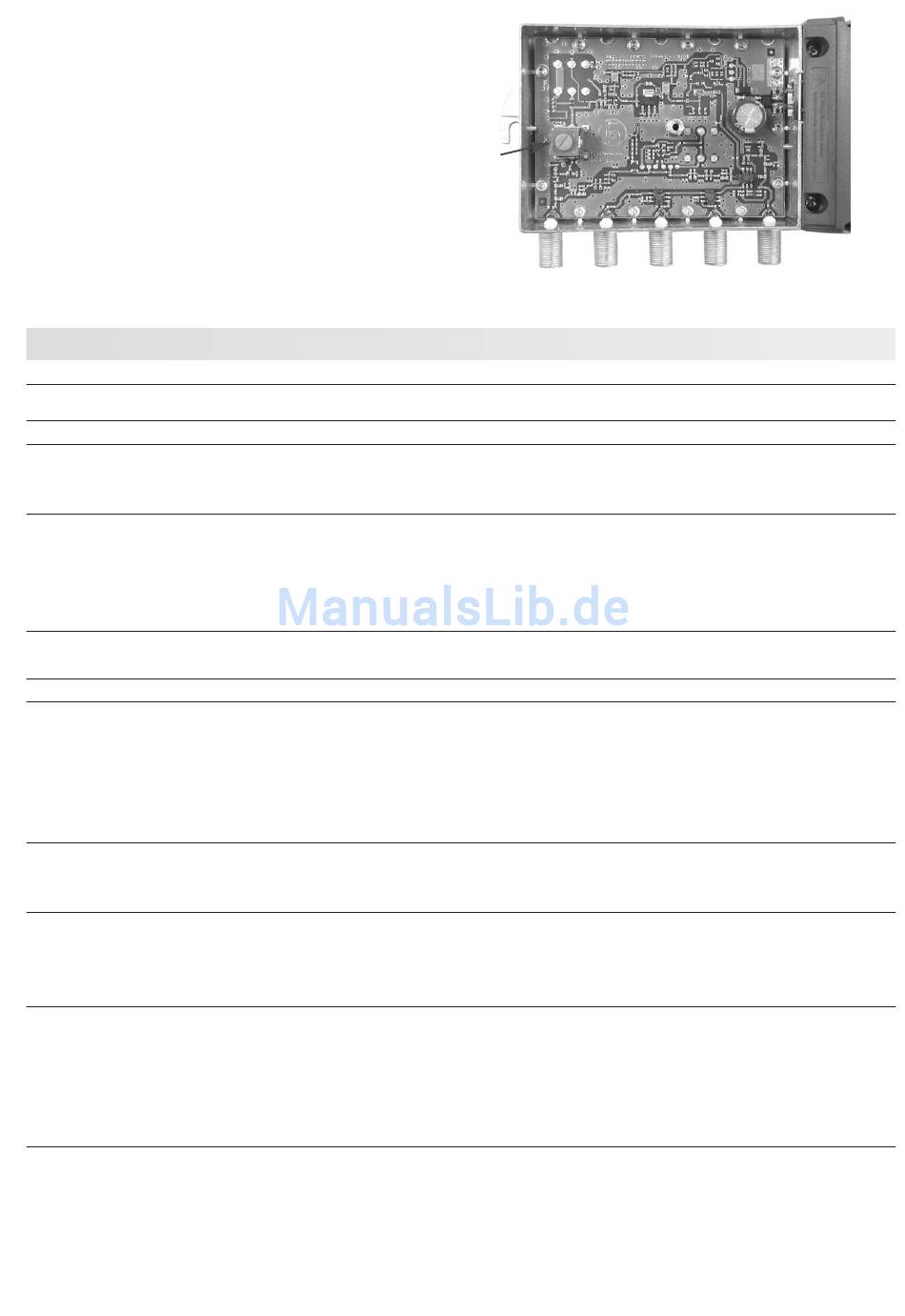

Fig. 2
5
