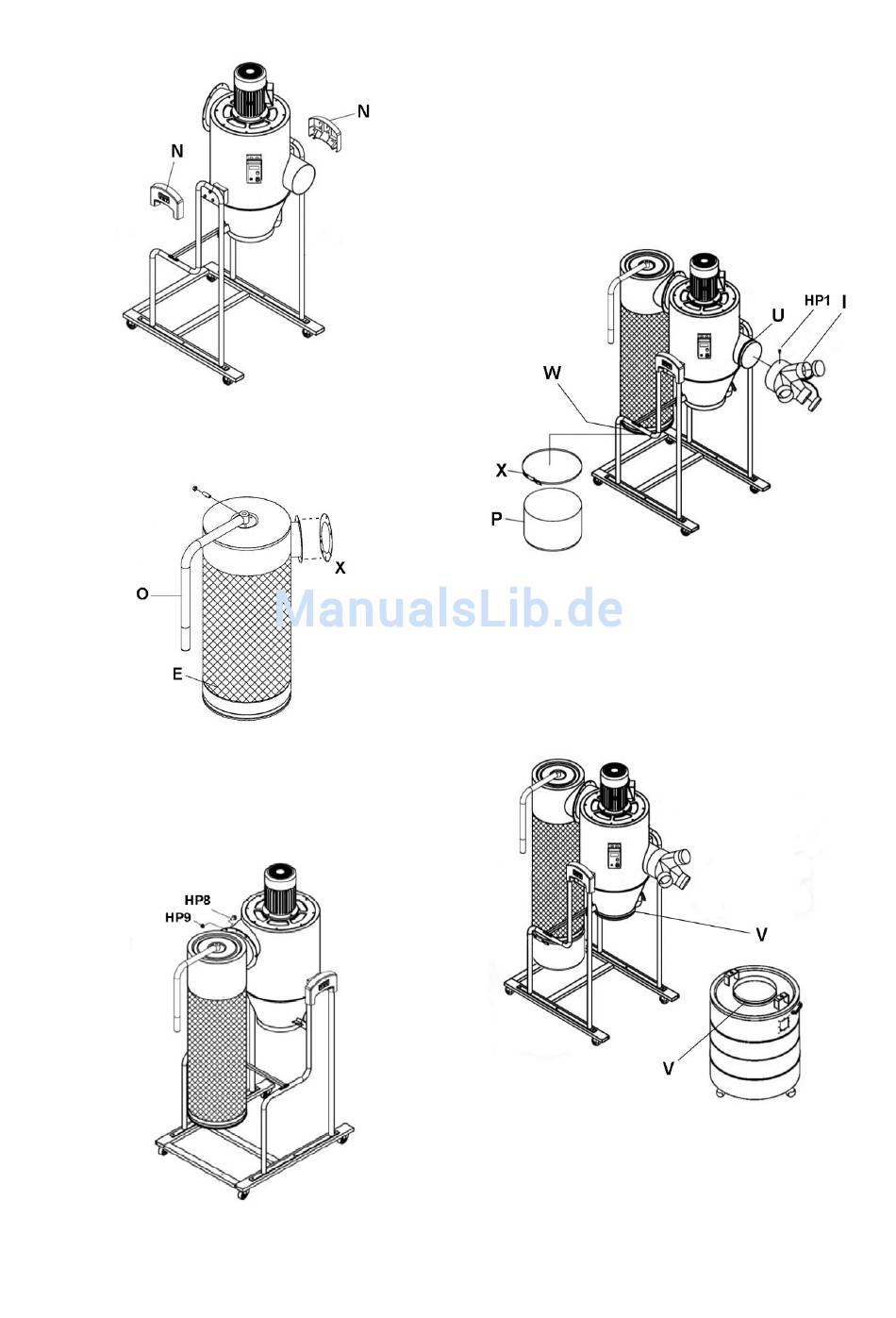

8. Install side cover (N) on left and right stands. See
Figure 7.
Figure 7
9. Install handle assembly (O) to canister filter (E)
using set screw and nut. See Figure 8.
Figure 8
10. Place gasket (X) between canister filter and main
housing. Install canister filter onto main housing,
and tighten with flange head screws (HP9) and
nuts (HP10). See Figure 9.
Figure 9
11. Apply foam tape (U) around inlet port near edge.
See Figure 10. The foam tape should completely
encircle the port.
12. Install inlet adaptor (I) on main housing and
secure with pan head screw (HP1).
13. Apply foam tape (W) just above lower lip of
canister filter. The foam tape should completely
encircle the canister filter.
14. Install collection bag (P) to bottom of canister
filter and secure with steel bag clamp (X).
15. Apply foam tape (V) around funnel just above its
bottom edge. See Figure 11. The foam tape
should completely encircle the funnel.
16. Apply foam tape (V) around outside lip of drum
opening. The foam should completely encircle the
lip.
11
Figure 10
Figure 11
