Edit Output port tags:
To edit the OUTPUT port tags, click edit and then add your own name in the area provided

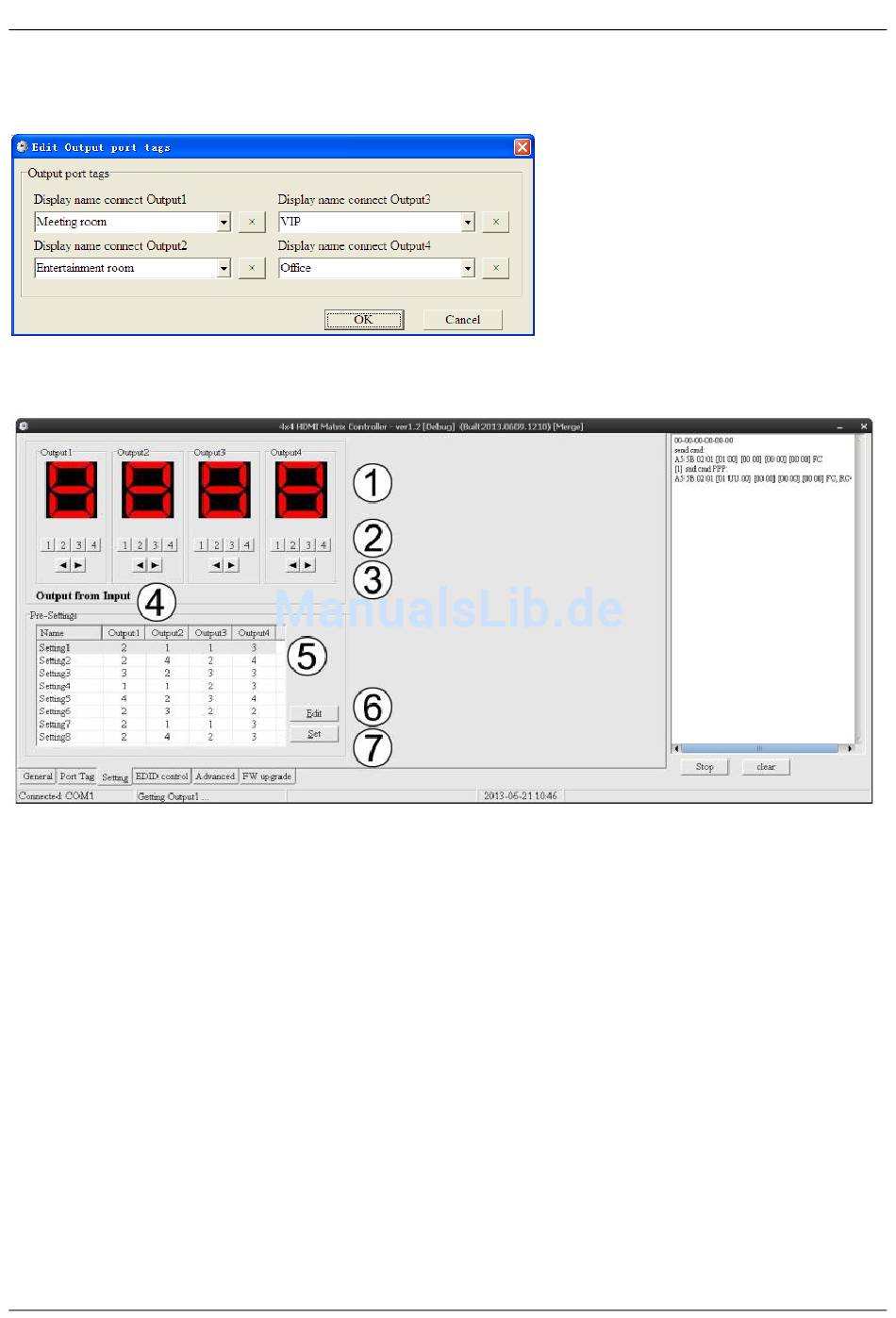

Setting page:
Display's the Input number for respective Output
1.
Click to select Input port for respective Output port
2.
Click to select previous or next Input port for respective Output port
3.
Display Input to Output with tag information when mouse moves over the buttons referred to in 2
4.
Pre-Setting items
5.
Click to edit selected pre-setting item
6.
Set selected pre-setting item to Matrix
7.
EDID Control page:
Set EDID mode for selected Input port or All Input ports, click "Set" button to complete action. "Auto
1.
EDID mode" can only be set for "All Inputs"
Copy EDID from Output port to selected Input port or All Input ports, click "Copy" button to complete
2.
action
Read EDID content from Output port and display in grid, click "Read" button to complete action
3.
Save EDID content which displayed in grid to binary file (file extension is ".bin")
4.
Open EDID binary file and display in grid
5.
Download EDID content which displayed in grid to selected Input port or All Input ports, click
6.
"Download" button to complete action
EDID content displaying grid
7.
Click to clear EDID content displayed in grid
8.
