User Manual
2. POWER: This red LED illuminates when the device is connected with power supply
3. IR IN: Remote control signal receive
4. OUTPUT A: Press this button to select the input source to HDMI OUTPUT A, and the red LED will
illuminate when selecting corresponding input
5. OUTPUT B: Press this button to select the input source to HDMI OUTPUT B, and the red LED will
illuminate when selecting corresponding input
6. OUTPUT C: Press this button to select the input source to HDMI OUTPUT C, and the red LED will
illuminate when selecting corresponding input
7. OUTPUT D: Press this button to select the input source to HDMI OUTPUT D, and the red LED will
illuminate when selecting corresponding input

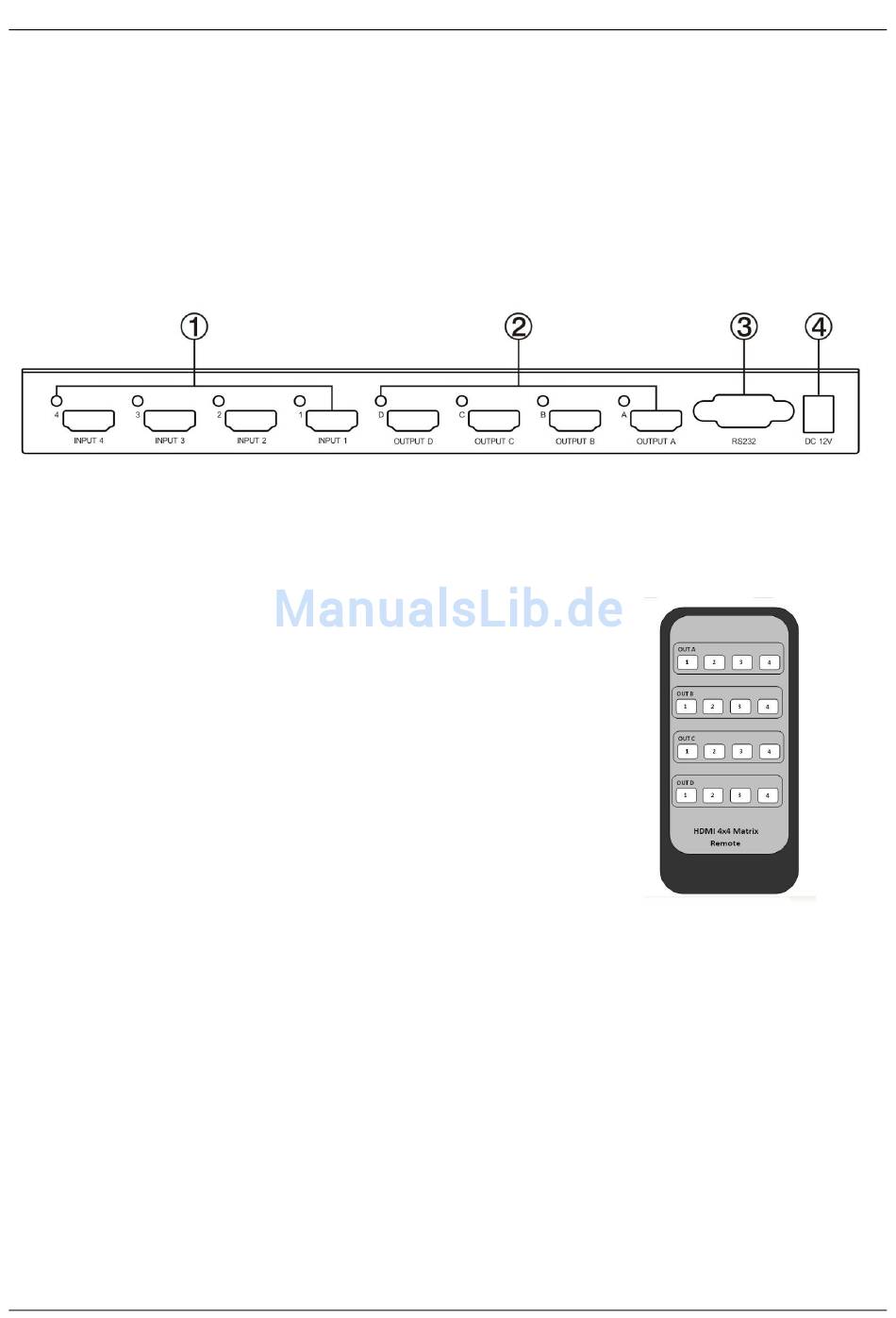

Rear Panel:
INPUT PORTS: The LED's will illuminate when a HDMI signal is detected
1.
OUTPUT PORTS: The LED's will illuminate when the TV signal is detected
2.
3.
RS232: This port can control the matrix via a PC
4.
DC 12V: Plug the 12V DC power supply into the unit and connect the adapter to AC wall outlet
Remote control:
OUT A: Press any of the four buttons to select a source signal
OUT B: Press any of the four buttons to select a source signal
OUT C: Press any of the four buttons to select a source signal
OUT D: Press any of the four buttons to select a source signal
Software Control:
General page
1.
Control mode select: Only COM control mode is supported with this model
2.
Select RS232 COM port
3.
Click to connect or disconnect PC and Matrix
4.
Click to refresh device status
5.
To enable or disable Input/Output tags displayed when setting buttons on "Setting" page
6.
Click to select tab
7.
Status bar:
RS232 COM port connection
Communication status
Prompt of operation messages
Time and Date
8.
Device information display area
English
