Vivanco UR 2 Bedienungsanleitung

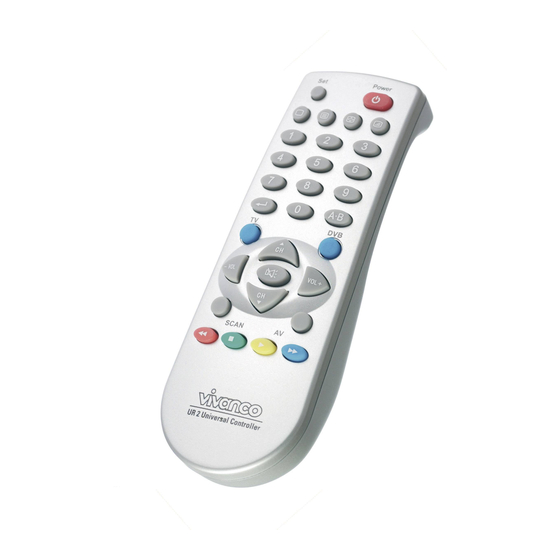

UR 2 Universal TV-DVB Controller
(GB) Instructions
Inserting the batteries
Open the battery flap on the back of the remote
control, press the tongue lightly downwards,
then insert 2 alkaline AAA batteries. Check that
the polarity markings on the batteries and in the
battery compartment are correctly lined up
(+=+), then close the flap carefully. – Always
use undamaged batteries.
Adapting to TV or DVB Set Top Box (or
SAT/Cable)
In order to control your TV or DVB you must
adapt or set the remote control to it. There are
two ways of doing so: direct control code entry
or code search.
If your UR 2 does not understand you it blinks
twice and you can then repeat the entry. Each
understood entry is confirmed by
blinking briefly.
Direct control code entry using the enclosed
list
Example: setting to control a Panasonic
television set:
1. The enclosed list gives, for example, the
Panasonic Code 153.
2. To prepare code entry, briefly press the
SET button, and then the TV-button, until the
Powerkey lamp (LED) lights constantly.
Then press the number buttons (e.g. 1 5
3.
3) in sequence.
4. Once the numbers have been entered the
button lamp goes out and the remote control is
ready to control your appliance.
5. Finally, test the control code setting by
trying to control your television set. If it does
not work at all or not correctly try a different
code from the list or the code search (see
below).
Code search
If the brand of your appliance is not in the list or
none of the codes given fits, we recommend a
code search.
Manual code search
1. Switch on the appliance to be controlled.
Program is running.
2. To prepare the code search, briefly press
the SET button and then additionally the . TV
or DVB button, until the lamp (LED) lights
constantly.
Then point the remote control at the
3.
appliance to be controlled.
4. Briefly press the
(appliance on/off) button once. The lamp (LED)
blinks.
Vivanco GmbH, Ewige Weide 15, D-22926 Ahrensburg, e-Mail:
5. Press
on/off) button repeatedly, approx. every second,
until appliance, reacts. - If you notice the
reaction of your appliance too late and the next
code has already been emitted you can go back
by pressing SET and then ON/OFF again. If
your appliance has switched itself off you must
switch it back on again, e.g. on the appliance or
with the original remote control, to continue
searching. - When your appliance reacts you
can also
interrupting the search. If some buttons do not
work properly, simply continue searching with
ON/OFF .
6. When your appliance reacts correctly,
press the appliance button e.g. TV and end the
search. The lamp (LED) goes out.
- The search stops after approx. 30 seconds of
inactivity.
button
Automatic code search
Your remote control finds the correct settings
almost automatically in seconds:
1. Switch on the appliance to be controlled
so that you can watch a TV program.
2. To start the code search, press the SET
button, and then additionally the
button TV or DVB , for more than 3 seconds
until the Power-key lamp (LED) starts to blink.
3. Then point the remote control at the
appliance to be controlled while the remote
control emits a different ON/OFF signal every 2
seconds.
4. When your appliance reacts, press any
button, except SET, to end the search. – If you
ended the search too late, continue to search
using the Manual Code Search (see above).
5. Finally, test the control code setting by
trying to control your appliance. If it does not
work correctly, please try the code search
again. The code search then begins with the
next code in the sequence. - Remember to
switch your appliance back on again if you wish
to continue searching.
Code identification
You can read off the 3-digit codes you have set
at any time:
1. Press
appliance whose code you want to read off, e.g.
TV.
2. Press the SET button and additionally 1,2
or 3, depending on the part of the code you
want to read off. For example, if you press
SET+1 and the code 153 (in this example) has
ON/OFF
been set, the lamp blinks once after SET+1 is
released to show that the hundred figure is 1.
All you have to do is count. The ten figure is
indicated after SET+2 is released, e.g. it blinks
the ON/OFF (appliance
try out other buttons without
appliance
the appliance button of
