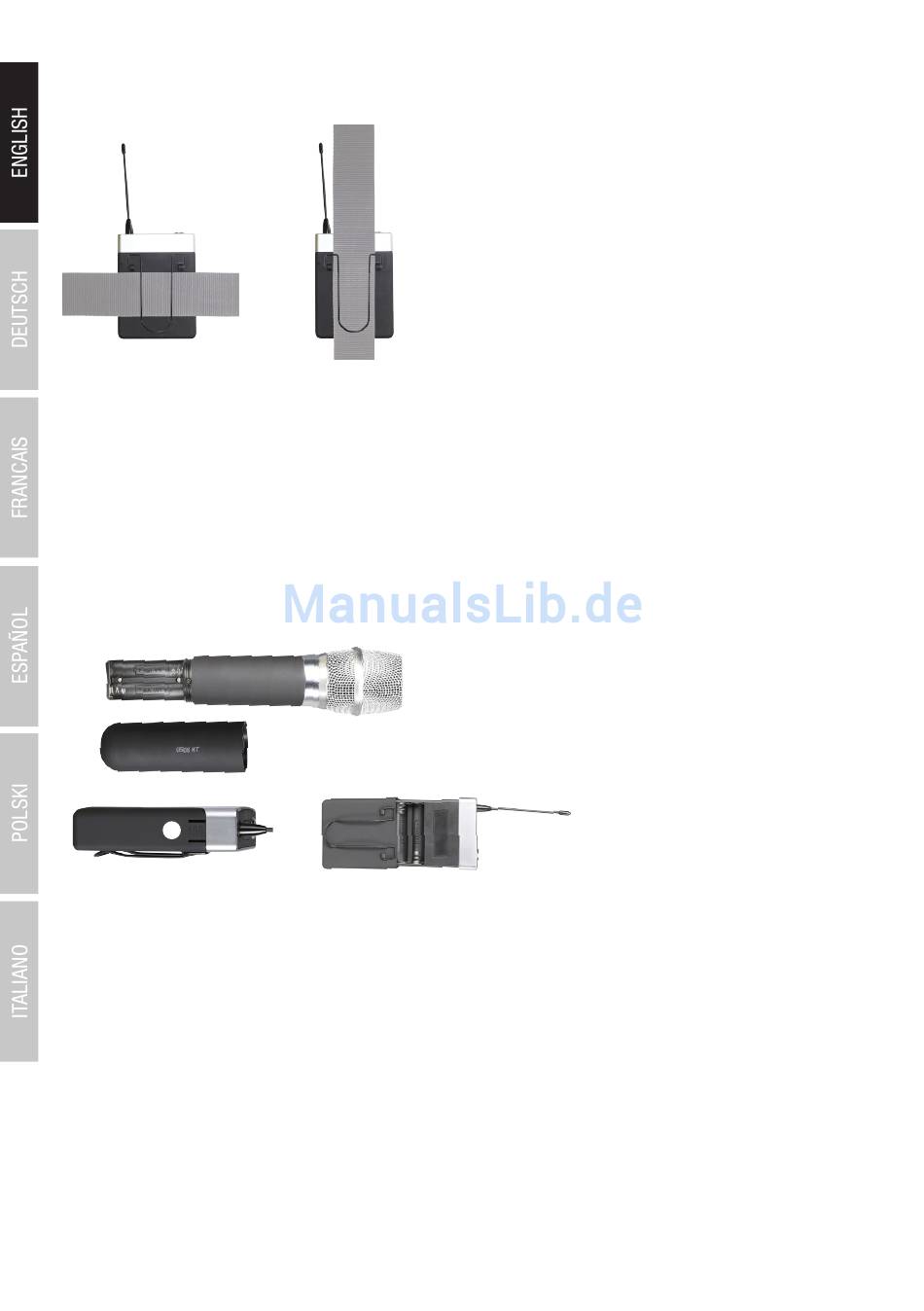

ATTACHING THE PACK TRANSMITTER
Attach the transmitter to a belt or strap as shown below.

BATTERY REPLACEMENT

Open the battery compartment of the hand-held transmitter by turning the battery compartment cover counter-clockwise and pull it from
the housing. Remove the used batteries and insert new batteries (AA, Mignon) as shown on the illustration inside the battery compartment.
Replace the battery compartment cover on the housing and close the battery compartment by turning clockwise. If the transmitter is not in
use for a long period of time, remove the batteries from the battery compartment on the transmitter to avoid damage caused by defective
batteries.
Open the battery compartment of the hand-held transmitter by pressing on both markings on the sides of the battery compartment cover
(Fig. A) and pull it away until it stops. Remove the used batteries and insert new batteries (AA, Mignon) as shown on the illustration inside
the battery compartment. Slide the battery compartment cover back onto the housing until the cover clicks into place. If the transmitter
is not in use for a long period of time, remove the batteries from the battery compartment on the transmitter to avoid damage caused by
defective batteries.
A
