Warranty

Warranty claims according to the warranty certificate attached. .
Read the instruction manual before use

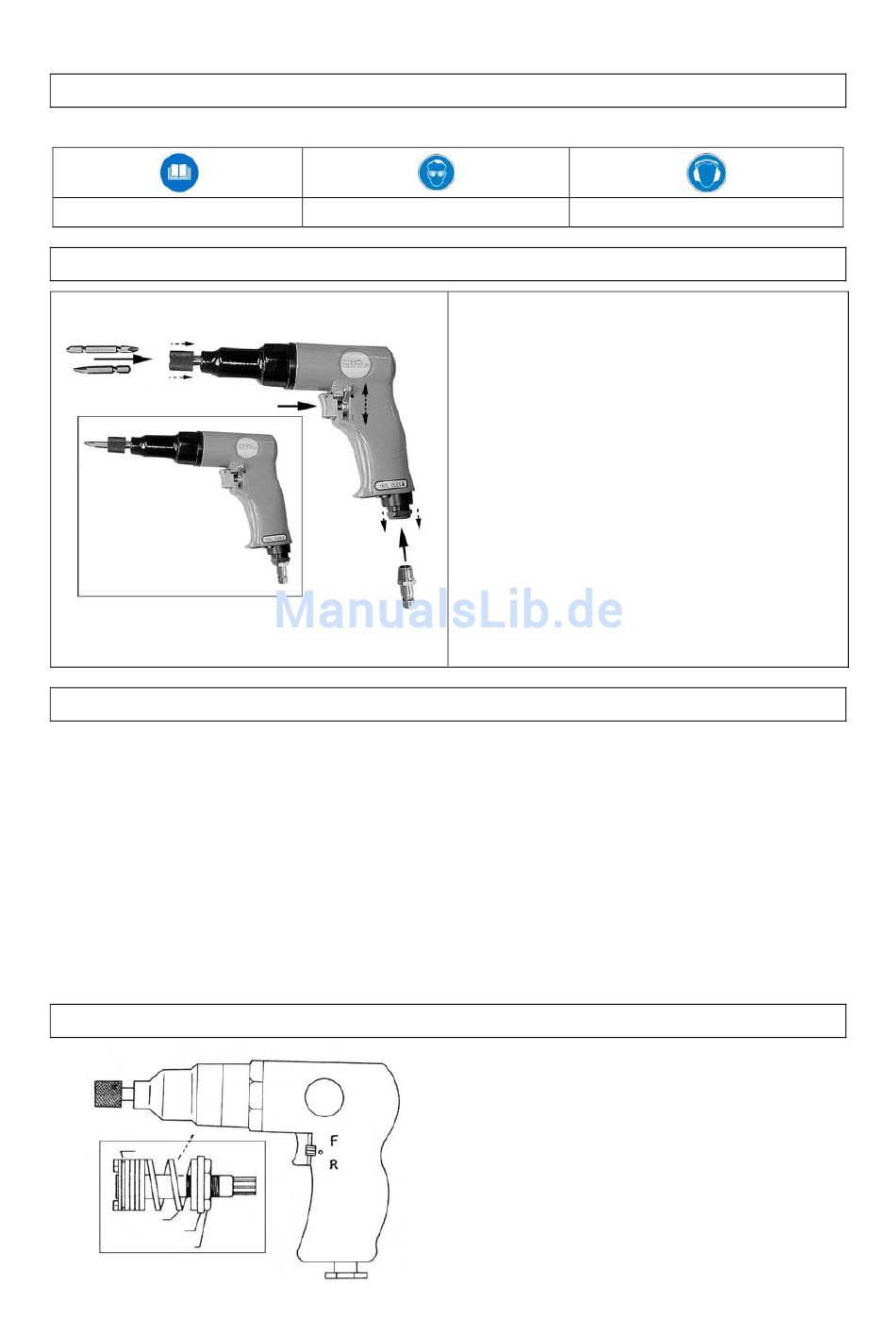

4. Initial Operation

Fig. 2

5. Maintenance and Care

Observance of the maintenance instructions guarantees a long service life of this premium quality product.
The pneumatic screwdriver must be lubricated regularly. Regarding lubrication, select one of the following
options:
a) Oil-mist providing oilcan: The maintenance kit includes an oil can producing oil mist. It should be
fitted on the compressor.
b) Oil piping: Install oil-piping immediately at the unit (at a distance of some ca 50 cm). I will supply
sufficient quantities of oil to the unit.
If the pneumatic screwdriver is out of operation for several days, drop 5-10 drops of special oil in
the pressure air connection before re-starting.
c) Manual lubrication
If there is not a maintenance kit or the oil piping on your unit, 3-5 drops of special oil must be put in your
impact screwdriver air connection before any operation. Store your pneumatic screwdriver at dry places
only.
6. Drawing
Wear protection goggles
• Remove the protection from the pressure air
connection neck (Fig. 1/ Pos. 4). Pack the slip
connection (Fig. 1/Pos. 10) with a Teflon tape
and screw on.
• Push the quick-acting chuck (Fig. 1/ Pos. 1) down
and turn a bit if necessary. Now it is possible to
put an extender (Fig. 1/Pos. 8 + 9) on the quick-
acting chuck (Fig. 1/ Pos. 1). Lock the extender in
place by means of the quick-acting chuck (Fig. 1/
Pos. 1).
• Switch from run to the right to run to the left by
lever (Fig. 1/Pos. 2), marked „F"and „R".
• Now, connect the pneumatic screwdriver with a
slip clutch/quick-acting clutch (Fig. 1/Pos. 10) to
a suitable pneumatic hose and a compressor of
provided capacity.
•
Pressing the starting lever (Fig. 1/Pos. 5), put the
pneumatic screwdriver in operation.
3
GB
Use ear protectors
