Description
1.

Technical Data.............................................................................................................................. 2

2.

Scope of Delivery.......................................................................................................................... 2

3. Unit................................................................................................................................................ 2
4. Initial Operation............................................................................................................................. 3
5. Maintenance and Care ................................................................................................................. 3
6. Drawing......................................................................................................................................... 3
A.V. 1 – Reissues, even if partial, are subject to authorisation -
Technical changes reserved. - © Güde GmbH & Co. KG - 2006
1. Technical Data
Connecting thread
Operating pressure
Air consumption ca
Speed
Torque max.
Maximum screw diameter
Ordering No.
Required Air Quality, Air Supply:
Cleaned, with oil mist. By means of a maintenance kit with a filter reducer and an oilcan to provide the
oil mist.
Working values set-up:
Set up operating (hydraulic) pressure on the reducer 6 bar.
2. Scope of Delivery
3. Unit
A lightweight easy to control unit with a pressure clutch, a special switching to let/right run. An assembly
with a quick-acting chuck and extenders.
Warning: Wear appropriate protection clothing when working with the impact screwdriver.
Follow the safety provisions.

Safety Provisions

Protect yourself and people around against accidents following respective safety provisions.
Do not use the pneumatic screwdriver for any purpose other than assigned
-
Keep the pneumatic tools away from children!
-
Get down to work only when feeling rested and concentrated
-
Connect the pressure air connection via the quick-acting connection
-
The operating pressure should be set up via the reducer
-
Do not use oxygen and flammables gases as the source of energy
-
Disconnect the unit from the pressure air source before clearing a fault
-
Use genuine spare parts only
-
Never let the unit run unloaded at idling run.
-
Wear appropriate protection clothing when wearing with impact screwdriver
-
¼ ''
6 bar
200 l/min.
1800 rpm
10 Nm
6,0 mm
40079
Fig. 1
2
Page

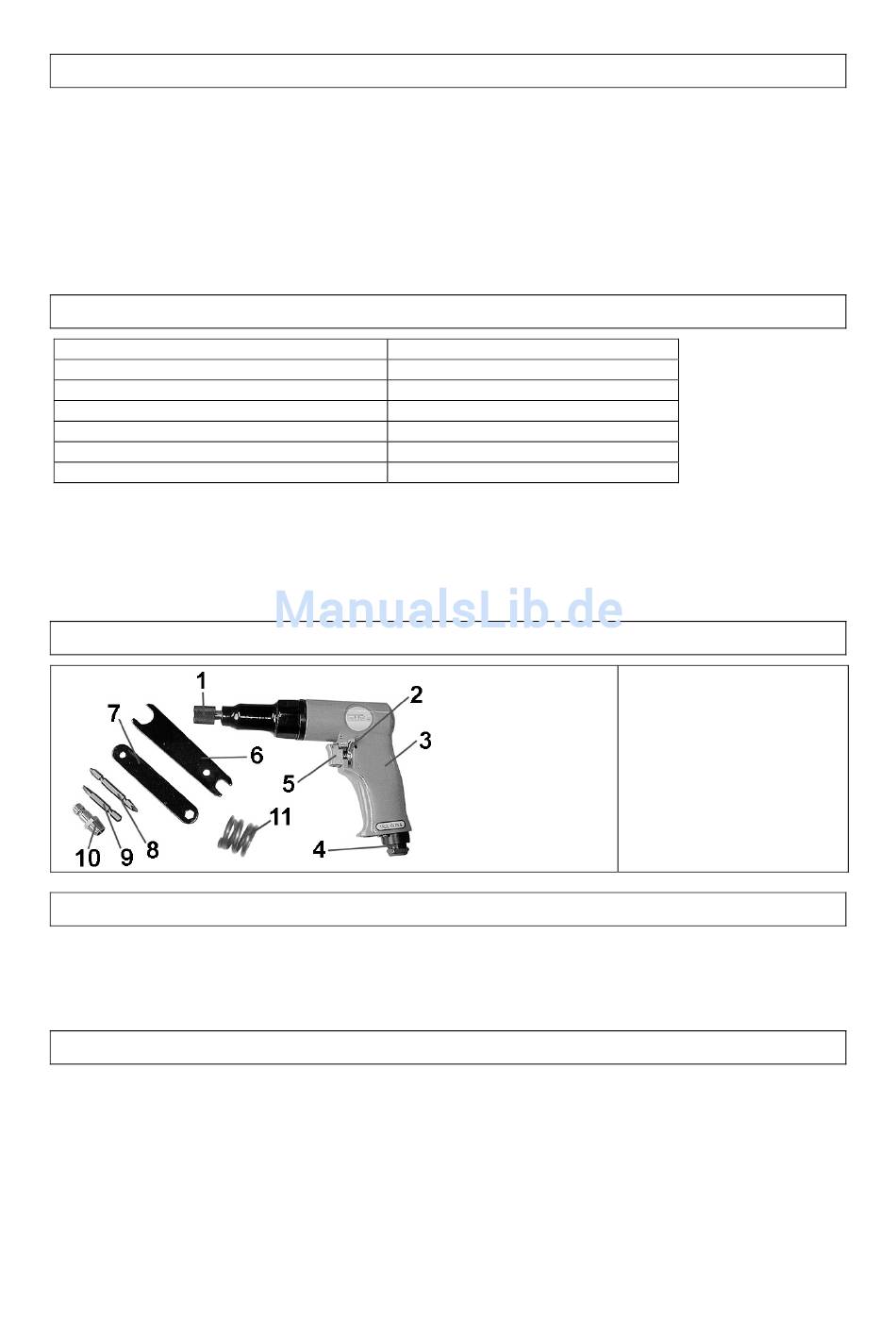

1. Quick-acting chuck
2. Right/Left run
3. Pneumatic screwdriver
4. Pressure air connection
5. Starting lever
6. Fork wrench
7. Socket wrench
8. Extender
9. Extender
10. Pressure air connection socket
head
11. Spare spring
