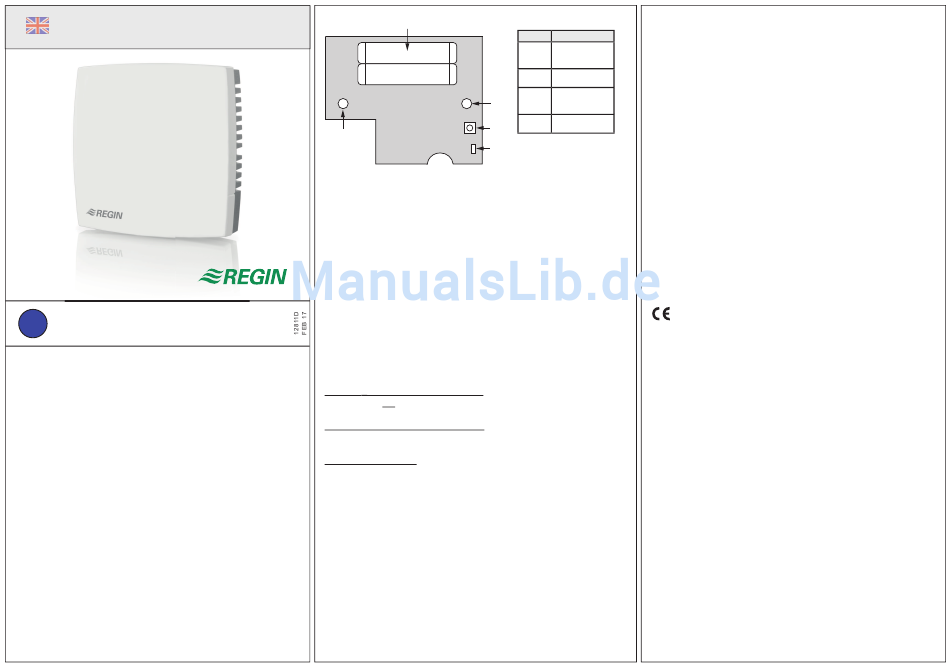

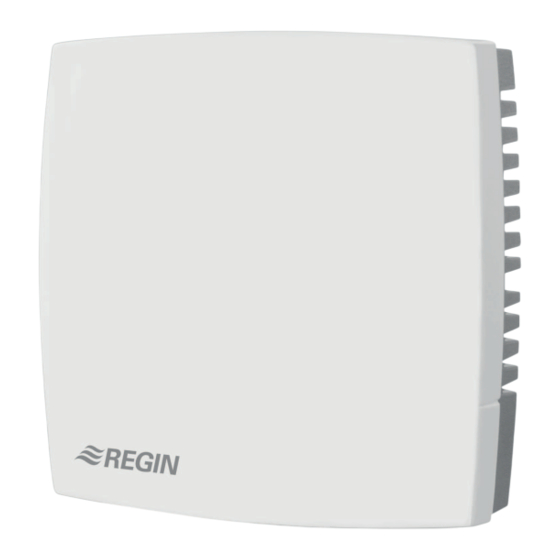

Wireless room temperature sensor
TG-R5W is a wireless room temperature sensor that monitors tem-
perature and sends a signal to the Regin Modbus receiver
RCW-M.
Commissioning
For optimal temperature monitoring, the sensor should be mounted in
an open space with good air circulation, and at a height of 1.2 to 1.4
meters.
The sensor must be paired with the receiver RCW-M before it can be
used.
Installation of batteries
1. Open the cover by pressing the locking tab carefully with a
screwdriver
2. Insert two 1.5 V L91 Lithium batteries
1
-
+
- +
2
3
2
4
Pairing the sensor with the receiver
Look in the receiver instruction (RCW-M) for information on how to pair
the sensor with the receiver.
Pairing/connection test
The connection to the receiver must be tested before mounting the sen-
sor.
1. Place the receiver and the sensor at the desired locations.
2. Put the receiver into Programming mode (refer to the RCW-M
instruction).
3. Perform a Walk test: Press the Test button on the sensor to see if the
location is within signal range of the receiver. The LED light will indi-
cate if the sensor is paired with the receiver or not. There will also be
a long beep from the receiver when the sensor is paired successfully.
LED light
3 fl ashes (When Test button is pressed):
The sensor is not paired with the receiver.
Flashing (When Test button is pressed):
The sensor is paired with the receiver.
Flash every 4 seconds:
Batteries need to be replaced.
Mounting the sensor
The sensor should be mounted in an open space with good air circulation,
and at a height of 1.2 to 1.4 meters.
1. Use the screw holes to mount the sensor on the wall
2. Snap on the cover
TG-R5W
Other functions
Number Description
1 Battery
Temperature detection
compartments
The sensor monitors the temperature at a preset time interval (factory
2 Screw holes
setting is 2 minutes), and if the temperature has changed by more
than ± 0.2°C it will send a signal to the receiver. If the temperature is
3 Connection/
stable, the sensor will transmit a signal every 95-115 minutes.
Test button
4 LED light
Self test
The sensor will automatically send a supervisory signal to the receiver
at an interval of 95 to 115 minutes to test the signal.
The receiver will indicate "out of signal" if it has not received the
signal at a preset interval.
Technical data
Battery
Frequency
Operating temperature
Operation humidity
Protection class
Dimensions (HxWxD)
Low Voltage Directive (LVD) standards
This product conforms to the requirements of the European Low
Voltage Directive (LVD) 2014/35/EU through product standards
EN 60950-1 and +A11, +A1, +A12 and +A2.
EMC emissions & immunity standards
This product conforms to the requirements of the EMC Directive
2014/30/EU through product standards EN 50130-4, EN 61000-4-2,
EN 61000-4-3 and +A2.
Effi cient use of the radio frequency spectrum
This product conforms to the requirements of the Effi cient use of
the radio frequency spectrum, Article 3.2 of 1999/5/EG through the
following standards: EN 301489-1: V1.9.2, EN 301489-3: V1.6.1, EN
300220-2: V2.4.1 and EN 300220-1: V2.4.1.
RF & human exposure
EN 62479
RoHS
This product conforms to the Directive 2011/65/EU of the Euro-
pean Parliament and of the Council through product standard EN
50581:2012.
1.5 V L91 Lithium x 2
868 MHz
-10...+50°C
Max. 85 % RH (non-condensing)
IP30
86 x 86 x 30 mm
