If a problem-free operation of the sunshade by means of the hand-held
radio transmitter is no longer possible, either because the distance
between the hand-held radio transmitter and the control unit is con-
tinually decreasing or the LED of the hand-held radio transmitter no
longer lights up when the button is pressed, the battery of the hand-
held radio transmitter must be replaced. A battery of the following type
is required: 12 V battery (type 23A, 23L, EL12, VR22, or MN21).

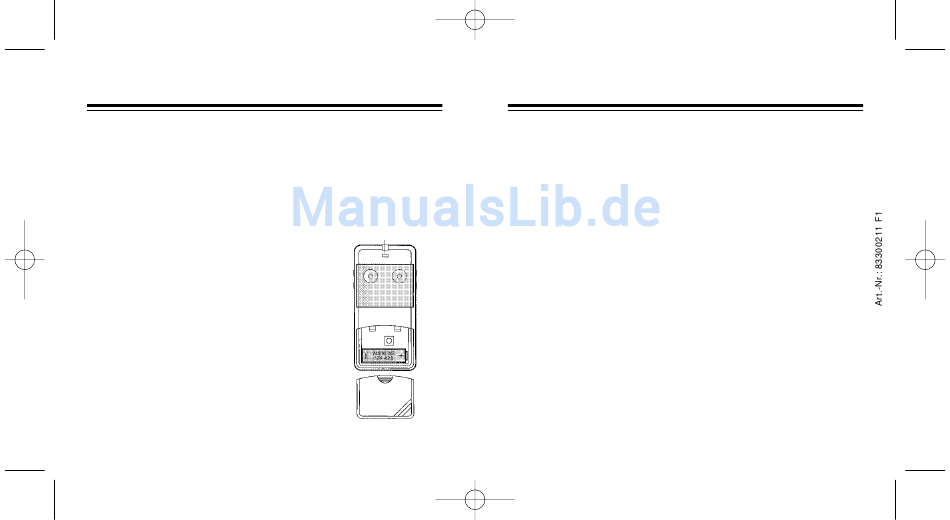

· Slide the cover on the front of the hand-
held radio transmitter down.
· Remove the battery from the hand-held
radio transmitter.
· Place a new battery in the hand-held radio
transmitter (watch for correct +/- polarity).
· Push the cover on the front of the hand-
held radio transmitter up.
11:42 Seite 31
Operation
LED
- 31 -
G

Technical data

Operating voltage: 230 VW, 50 Hz
Power consumption: approx. 2.2 W
Breaking capacity: 230 VW, 50 Hz, 4A, cos f > 0.8 ind.
Output: 230 VW, 50 Hz
Response time: 180 seconds
Protection class: IP54
Operating temperature: -20 °C – +70 °C
Humidity: 10 to 90 % (not condensed)
Transmission frequency: 433.92 MHz
Transmitter battery: 12V, type 23A, 23L, EL12, VR22, or MN21
The hand-held radio transmitter comprises a battery containing toxic
substances. The consumer is under obligation to properly return it
(guideline 91/157/EWG).
Dimensions: height: 116 mm
width: 116 mm
depth:
The technical data is subject to change!
- 32 -
G
60 mm
