Inhaltszusammenfassung für Mohlenhoff AR 7002 EIB

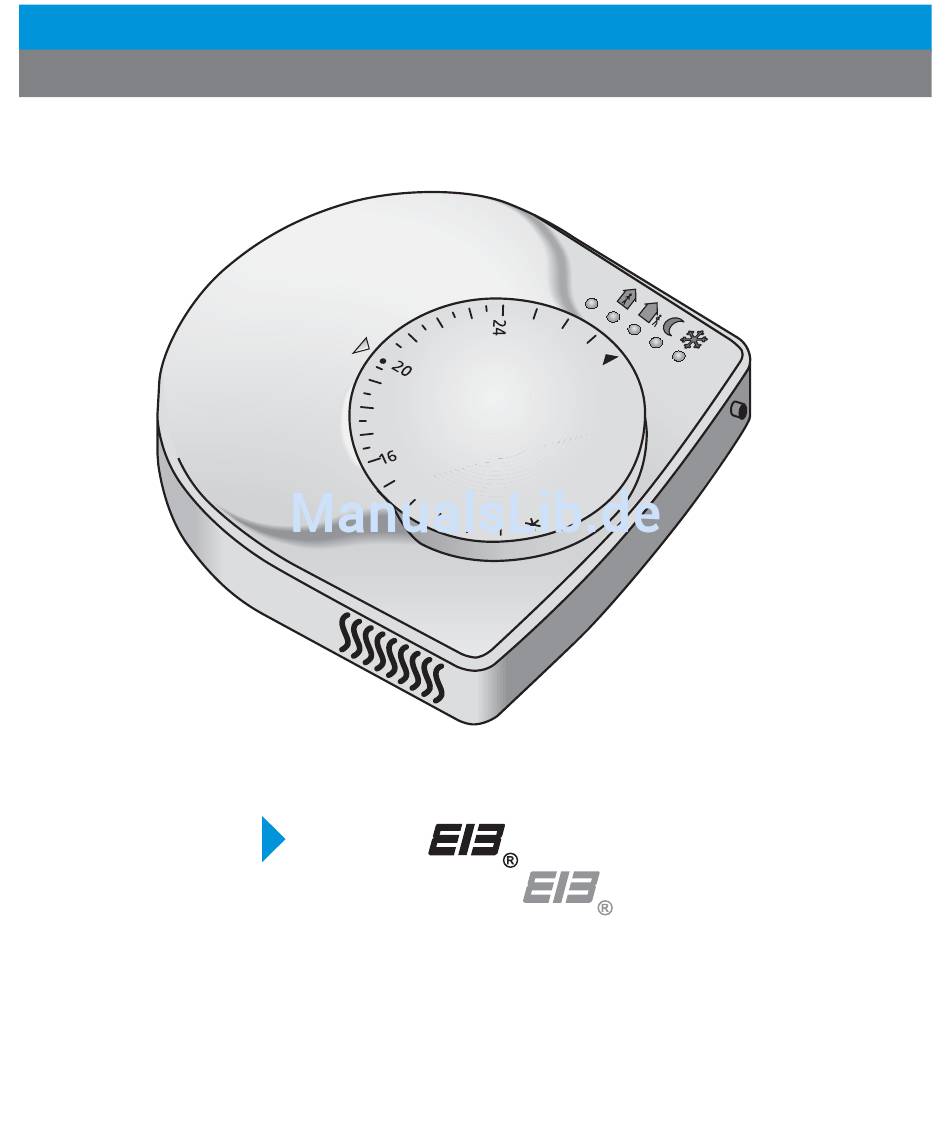

- Seite 1 MONTAGEANLEITUNG INSTALLATION Regler Thermostat AR 7001 EIB...
- Seite 2 Lieber Kunde,...
- Seite 3 Dear Valued Customer, Your choice in favour of the Thermostat AR 7001 EIB offers you a top-notch room thermostat for optimum regulation comfort. By state of art EIB communication this room thermostat can meet your personal needs by multiple functionalities. It even allows you to adjust the room temperature to your needs by means of heating and cooling functions (cooling functions only with suitable system layout).
-
Seite 4: Inhaltsverzeichnis
Inhalt Contents Übersicht ........5 Introduction ........5 Product Description ....5, 6 Product Includes......7 Sicherheit ........7 Safety ..........7 Safety Instructions.......7 Installation ........8 Installation Guidelines ....8 Connecting of bus lines ....8 Installation ........9 De-Installation......10 Betriebsanleitung .......11 Operation Guidelines ....11 Temperature Selector .....11 Temperature Range Limitors ..11 Indicator Symbol ....12,13 Product database... -
Seite 5: Übersicht

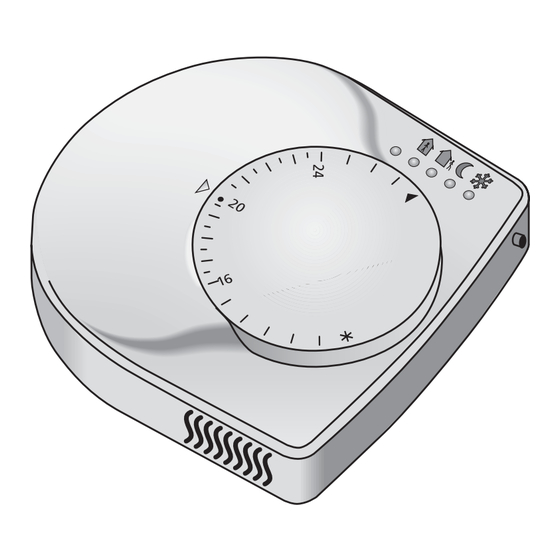

Übersicht/Introduction Produktbeschreibung/ Product Description The EIB controller is a room thermostat with microprocessor technology for the control of individual room temperatures. It controls heating actuators or EIB technology actuators. It has been designed for temperature regulation in living rooms and offices. The continuous PI regulation is marked by a very precise controlling behaviour. -
Seite 6: Temperature Selector
Produktbeschreibung / Product Description relative scale (alternativ) push button for operating modes or presence Temperature Selector SET pushbutton for device Latch addressing programming LED latch: locks Thermostat to Mounting Base push button: l comfort mode ( ) l standby mode( ) l night mode ( ) l frost protection mode ( ) temperature selector:... -
Seite 7: Sicherheit
Lieferumfang / Product Includes HANDBUCH USER MANUAL Regler Thermostat AR7001K 1x Thermostat AR 7001 EIB 1x selector with absolute scale (default) 1x selector with relative scale (included) 1x Mounting Base AS 1000 1x Installation Instructions Sicherheit / Safety Sicherheitshinweise/Safety Instructions Installation of electrical systems shall only be carried out by trained, qualified specialists in accordance with the national regulations. -
Seite 8: Installation
Installation/Installation Anschluss der Busleitungen / Connection of bus lines Funktion der externen Eingänge, Potentialbereich, Kontakte Function of external inputs, potential range, contacts – The inputs for the function “Switching” can also be used as window contact or as presence signal. -
Seite 9: Montage / Installation
Montage/ Installation ... des Reglers/ ... of Thermostat Regler nicht verkanten! Gently pull-off the Temperature Selector and turn the latch with a small screwdriver to position "OPEN". Carefully place Thermostat on the guiding rails and push to the left until Mounting Base is covered. Do not tilt Thermostat! Turn latch with a small screw-driver to position "CLOSE"and place Temperature Selector on the unit. - Seite 10 Demontage/ De-Installation ... des Reglers/ ... of Thermostat Pull off Temperature Loosen latch to position Selector. "OPEN". Regler nicht verkanten! Push Thermostat ... and lift the unit. to the right... Do not tilt Thermostat!
-
Seite 11: Betriebsanleitung
Betriebsanleitung/Operation Guidelines Temperatur-Drehknopf / Temperature Selector Selector for desired temperature with "soft click" notches. The desired room temperature is adjustable in 1/4 degree steps.Temperature scale in °C. Bereichseingrenzung/ Temperature Range Limitors... -
Seite 12: Indicator Symbol
Leuchtsymbol / Indicator Symbol comfort mode Comfort operation is used when persons are present in the room. standby mode The target value is lowered a little in standby oper ation. This operating mode is used when the room is not occupied, however occupation is expected in short term. -
Seite 13: Product Database
Leuchtsymbol / Indicator Symbol night mode The target value is lowered more significantly during night operation, as room occupation is not to be expected for several hours. frost protection mode In antifreeze operation, the room is set to a temper ature preventing the radiators from freezing damage in case of low exterior temperatures. - Seite 14 Technische Daten/Technical Data Abmessungen (mm) / Dimensions (mm)
-
Seite 15: Technische Daten
Technische Daten AR 7001 EIB... -
Seite 16: Technical Data
Technical Data Type AR 7001 EIB Operating voltage Bus voltage Own consumption 10 mA Control range 10°C to 28°C Measuring range 0°C to 40°C Temperature reduction approx. 4K/ 20°C Storage temperature -25 to +70°C Ambient temperature 0 to +50 °C Relative humidity 80% max. -
Seite 17: Anhang
Anhang/Appendix Urheberrecht Urheberrechtshinweis Dieses Handbuch ist urheberrechtlich geschützt. Alle Rechte vorbehalten. Es darf weder ganz noch teilweise ohne vorheriges Einverständnis des Herstellers kopiert, reproduziert, gekürzt oder in irgendeiner Form übertragen werden, weder mechanisch noch elektronisch. Die zu Grunde liegende Information wurde sorgfältig geprüft und nach bestem Wissen zusammengestellt. -
