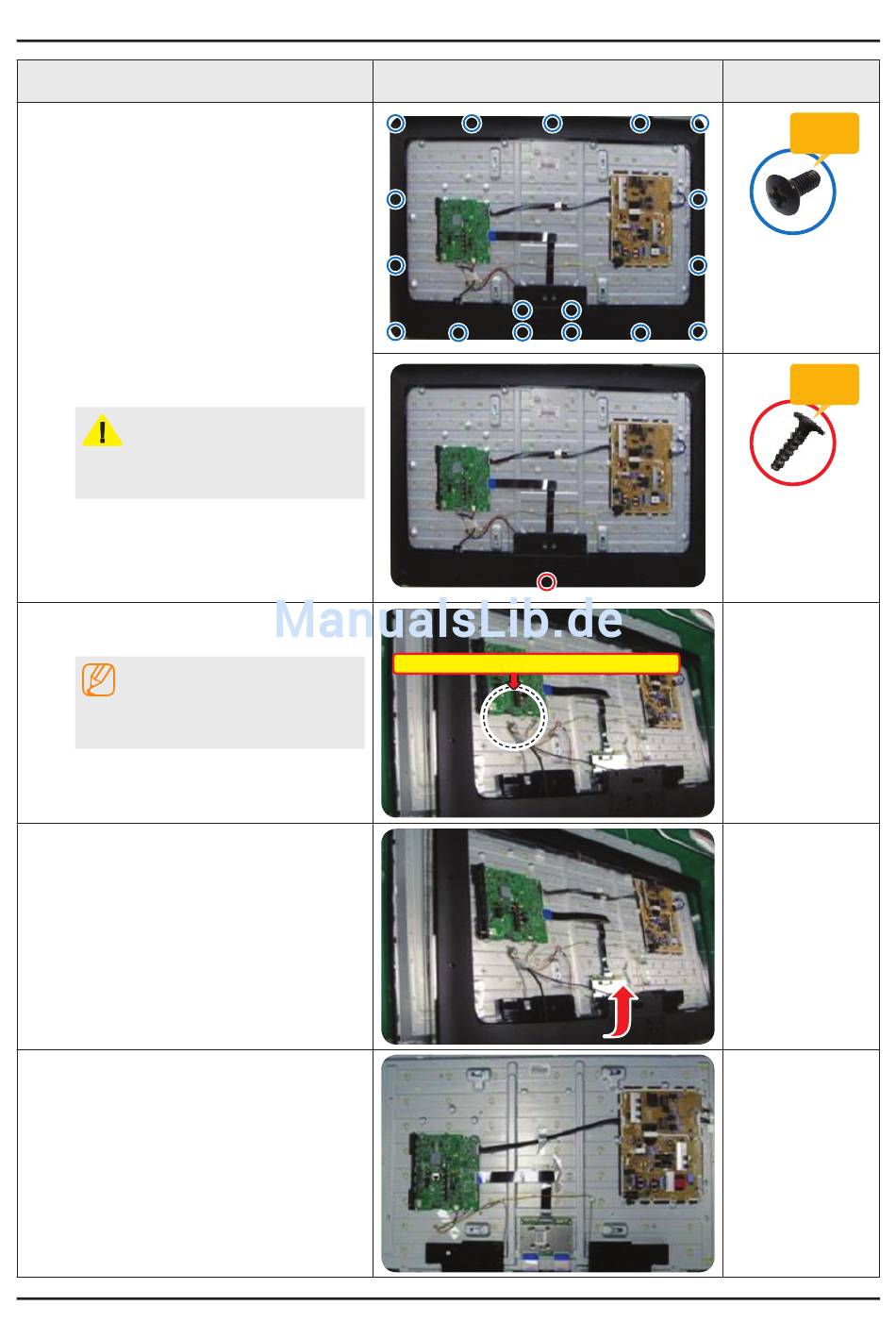

3. Disassembly and Reassemble
Description
5
Remove 17 screws of ASSY COVER
P-MIDDLE.
Remove 1 screws of ASSY COVER
P-MIDDLE.
CAUTION
Becareful when you lift up the ASSY
COVER P-MIDDLE, It's really sharp.
6
Disconnect the ASSY BOARD P-JOG
SWITCH & IR Cable.
NOTE
First remove the cable before you
remove the ASSY COVER P-MIDDLE.
7
Lift up the ASSY COVER P-MIDDLE.
8
Remove the ASSY COVER P-MIDDLE.
3-6
Picture Description
ASSY BOARD P-JOG SWITCH & IR Cable
Screws
Torque :
7~8Kgf.cm.
100~113psi
6001-002755
SCREW-MACHINE
M3.0, L6.0 BLK
Torque :
9~11Kgf.cm.
128~156psi
6003-001782
SCREW-MACHINE
M4.0, L12.0 BLK
