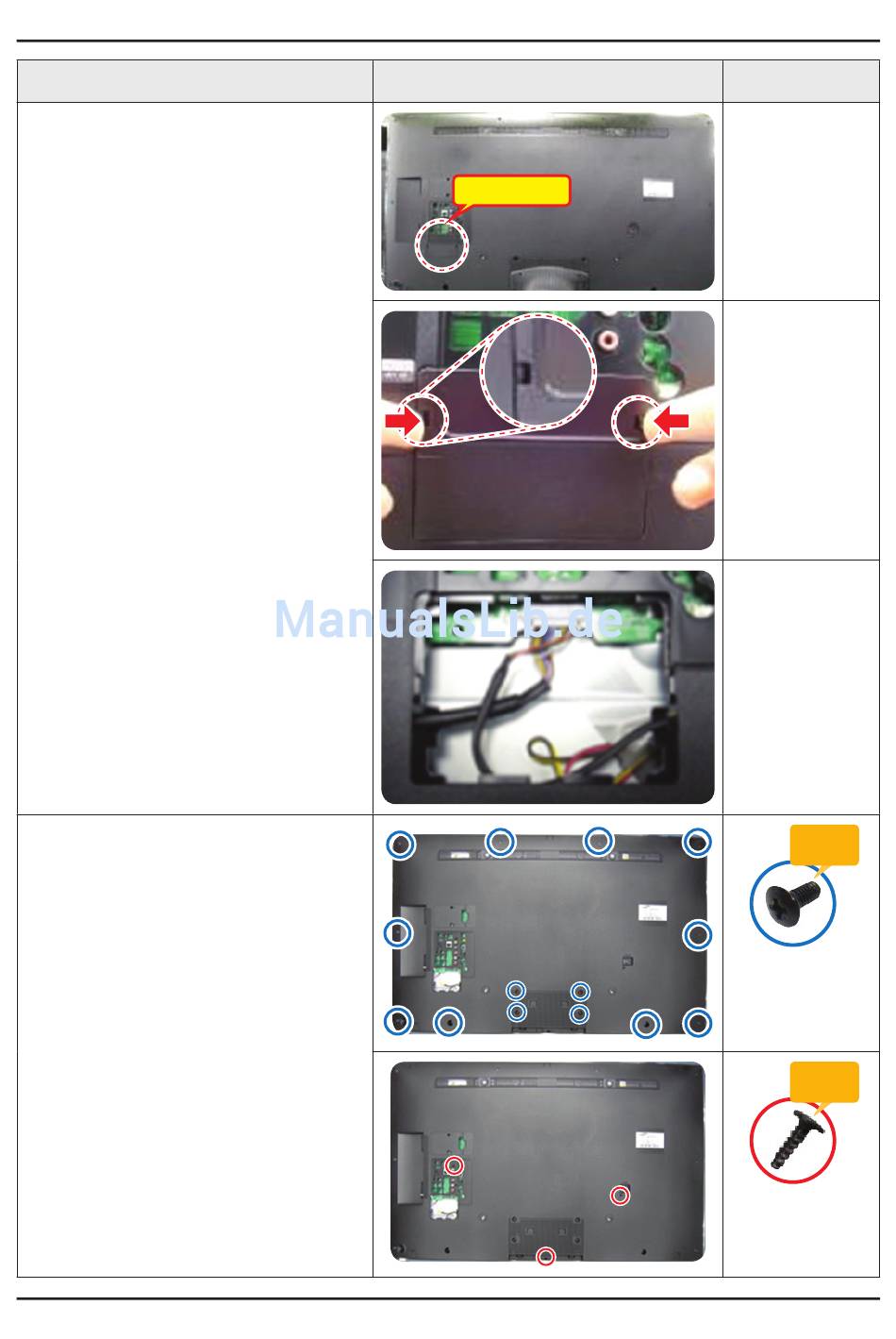

3. Disassembly and Reassemble
Description
4
Remove the COVER-JACK after push
the locking in both sides.
5
Remove screws of ASSY COVER
P-MIDDLE, REAR.
• 32 inch : 9 EA
• 40 inch : 14 EA
• 46 inch : 14 EA
• 32 inch : 2 EA
• 40 inch : 2 EA
• 46 inch : 3 EA
3-2
Picture Description
COVER-JACK
Screws
Torque :
7~8Kgf.cm.
100~113psi
6001-002755
SCREW-MACHINE
M3.0, L6.0 BLK
Torque :
9~11Kgf.cm.
128~156psi
6003-001782
SCREW-MACHINE
M4.0, L12.0 BLK
