Safety information
Please read carefully the following information to prevent injuries,
damage to material and device as well as data loss:
Warning levels
Signal words and safety codes indicate the warning level and provide
immediate information in terms of the probability of occurrence as well as the
type and severity of the consequences if the measures to prevent hazards are
not complied with.
Warns of a directly hazardous situation causing
DANGER
death or serious injury.
Warns of a potentially hazardous situation that
WARNING
may cause death or serious injury.
Warns of a potentially hazardous situation that
CAUTION
may cause minor injury.
Warns of a potential situation that may cause
IMPORTANT
material or environmental damage and disrupt
operative processes.
1. Risk of electrical shock
Contact with parts conducting electricity
WARNING
Risk of death by electrical shock
• Read the operating instructions prior to use
• Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
• Use in intended environments only
• Operate the device using a power unit meeting the specifications of the
type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
• Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs
2. Hazards during assembly (if intended)
Sharp components
CAUTION
Potential injuries to fingers or hands during assembly
(if intended)
• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
• Do not force components together
• Use suitable tools
• Use potentially enclosed accessories and tools only
3. Hazards caused by a development of heat
Insufficient device/power unit ventilation
IMPORTANT
Overheating and failure of the device/power unit
Safety information
• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
• Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit
4. Hazards caused by very small parts and packaging
Risk of suffocation
WARNING
Risk of death by suffocation or swallowing
• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible
to children
• Do not hand over small parts and packaging to children
5. Potential data loss
Data lost during commissioning
IMPORTANT
Potentially irreversible data loss
• Always comply with the information in the operating instructions/quick
installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product
6. Cleaning the device
Harmful cleaning agents
IMPORTANT
Scratches, discolouration, damage caused by
moisture or short circuit in the device
• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
• Make sure there is no residual moisture after cleaning
• We recommend cleaning devices using a dry, anti-static cloth
7. Disposing of the device
Environmental pollution, unsuitable for
IMPORTANT
recycling
Potential environmental pollution caused by com
ponents, recycling circle interrupted
This icon on product and packaging indicates that this product
must not be disposed of as part of domestic waste. In complian-
ce with the Waste Electrical and Electronic Equipment Directive
(WEEE) this electrical device and potentially included batteries
must not be disposed of in conventional, domestic waste or recy-
cling waste. If you would like to dispose of this product and
potentially included batteries, please return it to the retailer or your local waste
disposal and recycling point.
If you have any questions, please do not hesitate to contact our support at
support@raidsonic.de or visit our website at www.raidsonic.de.
Manual IB-DK4034-CPD
Package content
IB-DK4034-CPD, quick installation guide

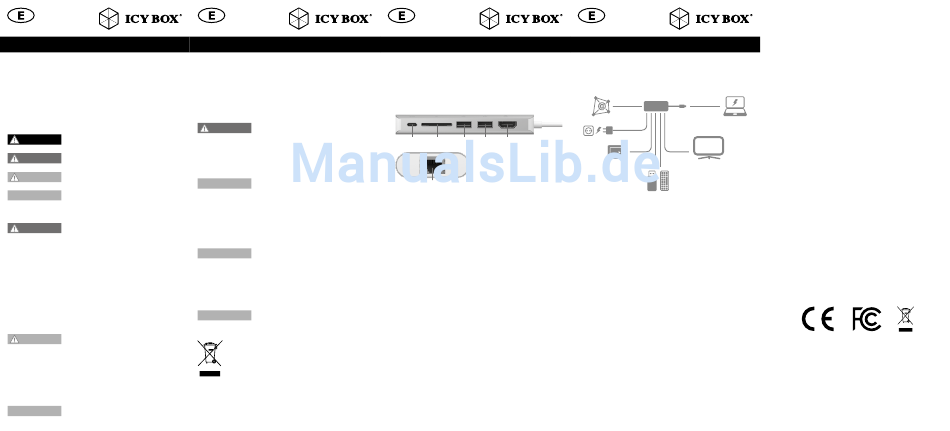

Product overview
5
1 2 3 4
6
1. USB Type-C™ interface (only Power Delivery)
2. USB 2.0 SD card reader
3. USB 3.0 Type-A interface
4. USB 3.0 Type-A interface
5. HDMI ® interface
6. RJ45 interface (Gigabit)
Description
The USB Type-C™ Multiport Docking Station is designed for connecting a
USB Type-C™ embedded device (laptop, desktop and etc.) that also supports
VESA ® DP ALT mode to a HDMI ® embedded device (television, monitor and
etc.). With the Docking Station you can extend the USB Type-C™ connection of
a computer to one more HDMI ® display, SD card reader, USB peripherals and
Ethernet network through one USB cable. This devices HDMI ® output resolution
is up to 3840x2160@30Hz. No need to install extra drivers, just plug and play.
You can charge your PC by inserting the power adapter came with your PC into
the USB Type-C™ connector. You also can process data link via both USB 3.0
Type-A connectors at the same time.
Connection to Monitor / Projector
Connect the USB Type-C™ plug to your notebook/PC and connect your moni-
tor/projector to the HDMI ® port. Please setup your display settings accordingly
to your operating system and requirements.
For detailed information of your operating system, see the corresponding ope-
ration manual and description of your operating system.
Manual IB-DK4034-CPD
Connection overview
Gigabit LAN USB Type-C™
USB Type-C™
SD card HDMI
®
2x USB Type-A
