4. Hold the reader unit (2) at a sufficient distance and correct angle (about 40°) to the barcode.
Depending on the size and type of barcode, you may need to adjust the distance. View the
following illustration, it depicts the reader unit's correct position:

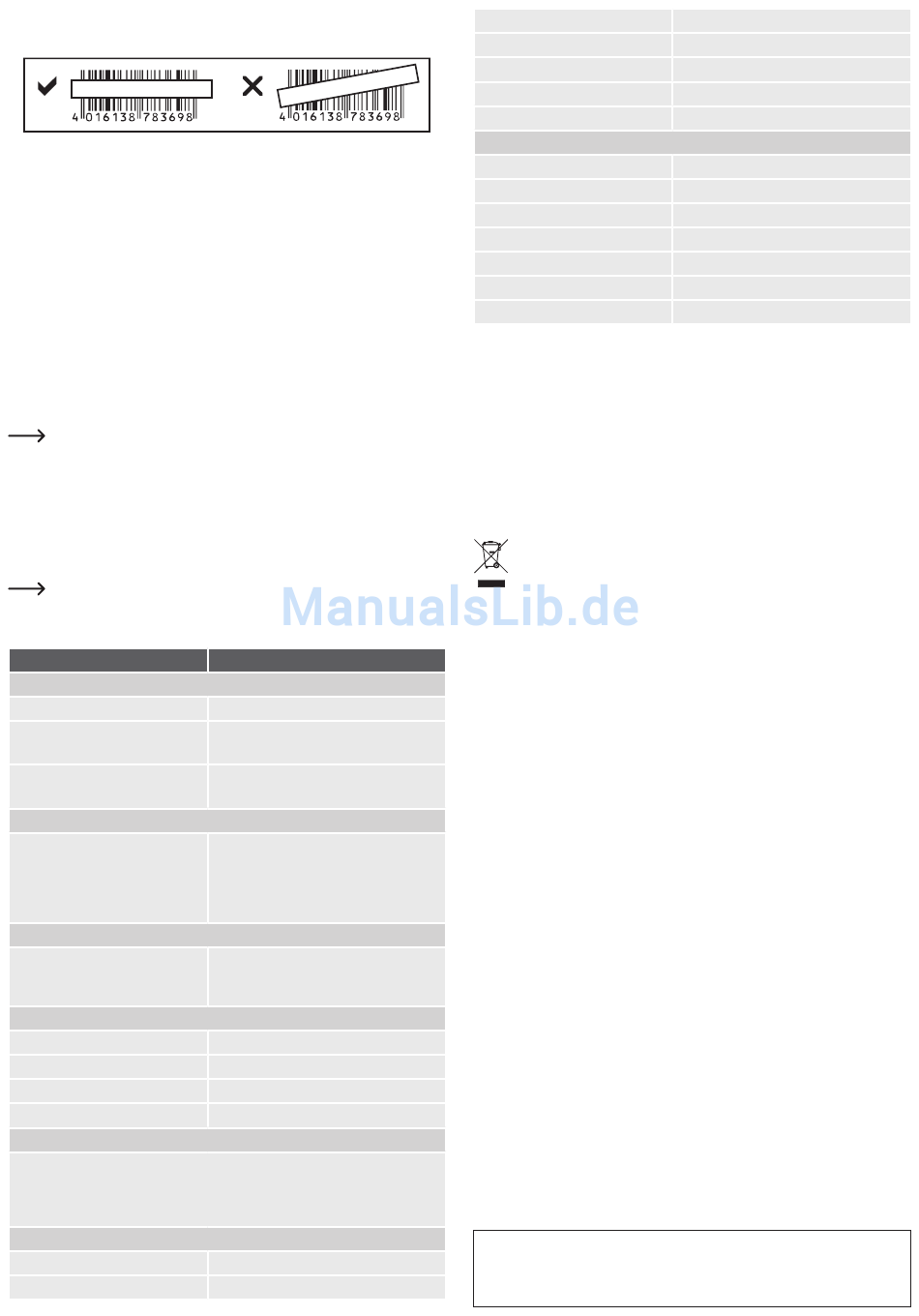

5. The barcode scanner has a motion sensor that automatically activates the reader unit (2).
A beep sounds and the LED control indicator blinks yellow if scanning was successful. The
barcode is scanned automatically. If the barcode cannot be read, the LED control indicator
blinks red.
Tips & notes
• Make sure that the barcode to be scanned is clean.
• The barcode to be scanned must be fully visible.
• Hold the scanner at the correct angle and distance.
• Hold the reader unit horizontal to the barcode.
• Check the settings each time you turn on the device to prevent incorrect readings.
Settings
You can configure the barcode scanner to your field of application. The required barcodes are
available in the included additional brief instructions.
To make these settings, scan the corresponding barcode with the barcode scanner.
Restore factory settings:
You can restore the barcode scanner to factory settings by scanning the barcode
"Default". A beep sounds.
Symbologies:
All barcode symbologies are activated by default. You can deactivate them
individually.
Overview of settings
A beep sounds if the setting was successful.
Some of the barcodes are listed twice in the instructions noted with ENABLE or
DISABLE:
ENABLE = activate function
DISABLE = deactivate function
Setting
Reading
SINGLE SCAN
SINGLE SCAN NO TRIGGER &
LASER TIMEOUT - 5 SECONDS
SINGLE SCAN NO TRIGGER &
LASER TIMEOUT - 2 SECONDS
Double check
CODE 11, CODE 39, CODE 93, CODE
128, CODABAR, I2OF5, ID2OF5, MSI,
UPC/EAN
DOUBLE CHECK - ENABLE /
DISABLE
REVERSE IMAGE - ENABLE /
DISABLE
Code ID
SEND BAR CODE ID - DISABLE
SEND BAR CODE ID - RESET
SEND BAR CODE ID - AS A PREFIX
SEND BAR CODE ID - AS A SUFFIX
Keyboard language setting (country language setting)
Set keypad language (for alphanumeric barcodes i.e. Code 128):
DENMARK, FINLAND, FRANCE, GERMANY, ITALY, LATIN AMERICA, NETHERLANDS,
NORWAY, POLAND, SPAIN, SWITZERLAND, SWITZERLAND, SWEDEN, UNITED
KINGDOM, UNIVERSAL, UNITED STATES
Symbologies On/Off [ 1 ]
CODE 11 - ENABLE / DISABLE
CODE 39 - ENABLE / DISABLE
Function
Scan once, the laser turns off after scanning.
The laser stays on for 5 seconds and turns off
after scanning.
The laser stays on for 2 seconds and turns off
after scanning.
The scanner reads the barcode twice with an
automatic comparison. In case of a match, the
result is transferred to the computer.
By default, scans black-on-white barcodes.
This function activates scanning of white-on-
black barcodes.
Deactivates transmission of barcode ID.
Resets barcode ID.
Inserts barcode ID as prefix.
Inserts barcode ID as suffix.
Activate/deactivate symbology CODE 11.
Activate/deactivate symbology CODE 39.
FULL ASCII - ENABLE / DISABLE
CODE 93 - ENABLE / DISABLE
CODE 128 - ENABLE / DISABLE
CODE 128 ISBT - ENABLE / DISABLE
CODABAR - ENABLE / DISABLE
Symbologies On/Off [ 2 ]
I2OF5 - ENABLE / DISABLE
ID2OF5 - ENABLE / DISABLE
MSI - ENABLE / DISABLE
UPC-A ENABLE / DISABLE
UPC-E ENABLE / DISABLE
EAN-13 ENABLE / DISABLE
EAN-8 ENABLE / DISABLE
Care and cleaning
• Disconnect the product from the power supply before cleaning.
• The product requires no servicing on your part aside from occasional cleaning.
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as
they can cause damage to the housing and malfunctioning.
• Clean the product with a dry, fiber-free cloth.
• Do not scratch the protective glass of the reader unit (2).
• Do not immerse the product in water.
Disposal
Electronic devices are recyclable waste and must not be disposed of in the
household waste. At the end of its service life, dispose of the product according to
the relevant statutory regulations.
You thus fulfil your statutory obligations and contribute to the protection of the
environment.
Technical data
Operating voltage ......................... 5 V/DC
Power consumption ...................... max. 500 mA
Laser class ................................... Class 1
Scan speed ................................... 100 scans per second
Highest resolution ......................... 4 mils (Code 39)
Cable length ................................. 2 m
Operating conditions ..................... 0 to +50 °C, 10 – 85 % RH (non-condensing)
Storage conditions ........................ -20 to +60 °C, 10 – 85 % RH (non-condensing)
System requirements .................... Windows
only 32 bits, Vista™ (32 / 64 bits), 7 (32 / 64 bits), 8, 8 Pro,
Enterprise, RT (requires OTG support), Mac OS X 10.8
(Mountain Lion)
Symbologies ................................. CODE 11, CODE 39, CODE 93, CODE 128, CODABAR,
I2OF5, ID2OF5, MSI, UPC/EAN/JAN, ISBN
Dimensions (W x H x D) ............... 54 x 30 x 60 mm
Weight .......................................... 182 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the
capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in
part, is prohibited. This publication represent the technical status at the time of printing.
Copyright 2018 by Conrad Electronic SE.
Activate/deactivate symbology FULL ASCII.
Activate/deactivate symbology CODE 93.
Activate/deactivate symbology CODE 128.
Activate/deactivate symbology CODE 128 ISBT.
Activate/deactivate symbology CODABAR.
Activate/deactivate symbology I2OF5.
Activate/deactivate symbology ID2OF5.
Activate/deactivate symbology MSI.
Activate/deactivate symbology UPC-A.
Activate/deactivate symbology UPC-E.
Activate/deactivate symbology EAN-13.
Activate/deactivate symbology EAN-8.
2000, XP (Home, Pro, with SP1, SP2, SP3),
®
*407978_V3_0318_02_mxs_m_en
