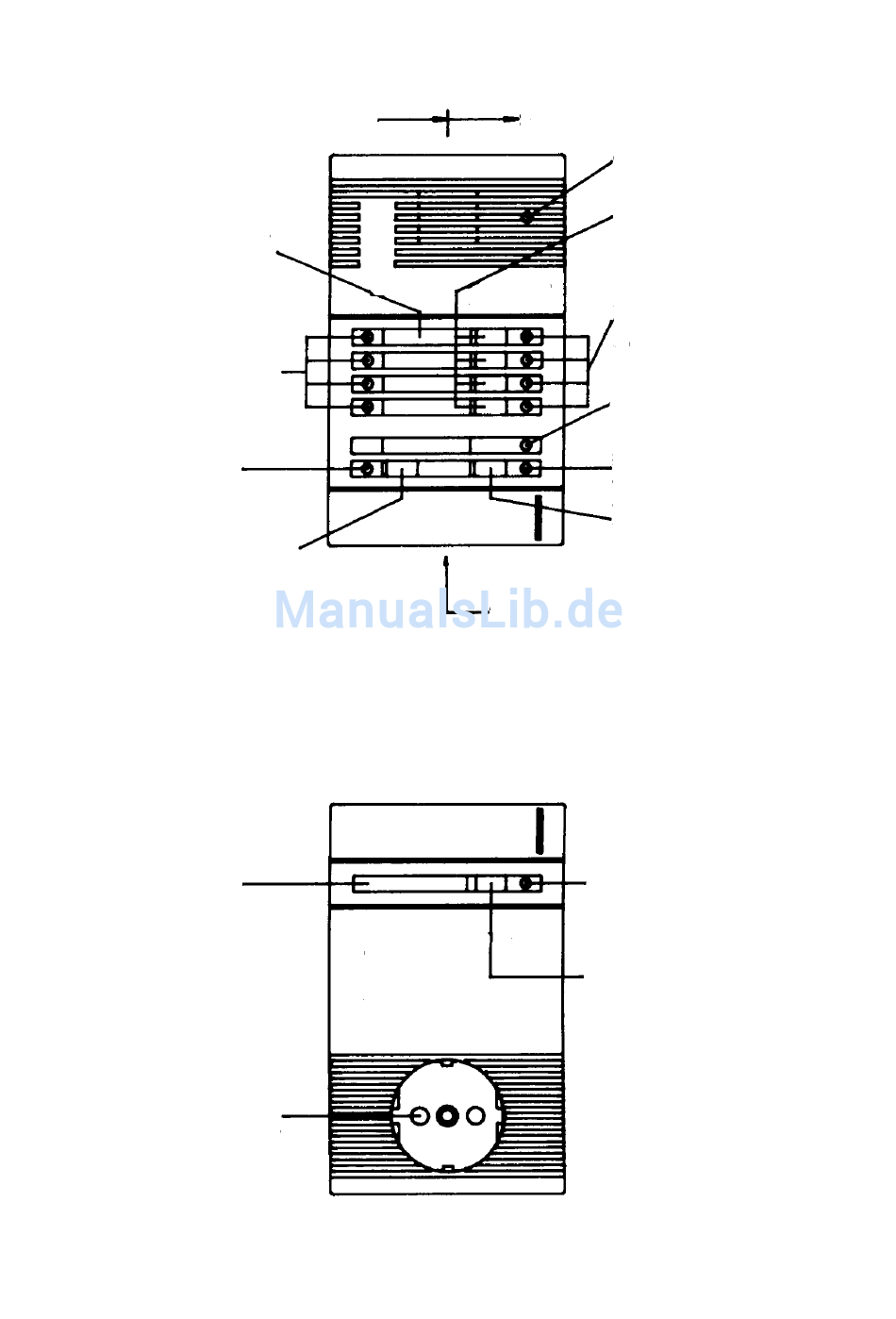

1. The system components

Inscription fields for the loca-
tions of the detectros switch
sockets and and alarm swit-
ches.
Yellow LED´s for detectors
on: inaktiv
flash: aktiv
This red LED is on
if the System ist
"SET".
Key for "SETTING" and
"UNSETTING" the
System.
Inscription field
switching socket
max. 1000 Watt
(Halogen bulbs
max. 500 Watt
English
Central control unit
Side of detector
Switching socket
)
Side of key
Light receptor
Keys to the remote switching
of the switch sockets and
alarm switches
Green lamps for switch sockets
and alarm switches
shines: OFF - flashes: ON
Green lamp indicates presence
to the siren or the second center
Control display for ligh-
tautomatic
Key for lightautomatic
ON / OFF
Connector for auxiliary modules
LED OFF: switching socket
is deactivated.
LED ON: switching socket is
activated.
Key for switching on and off
of the switching socket.
