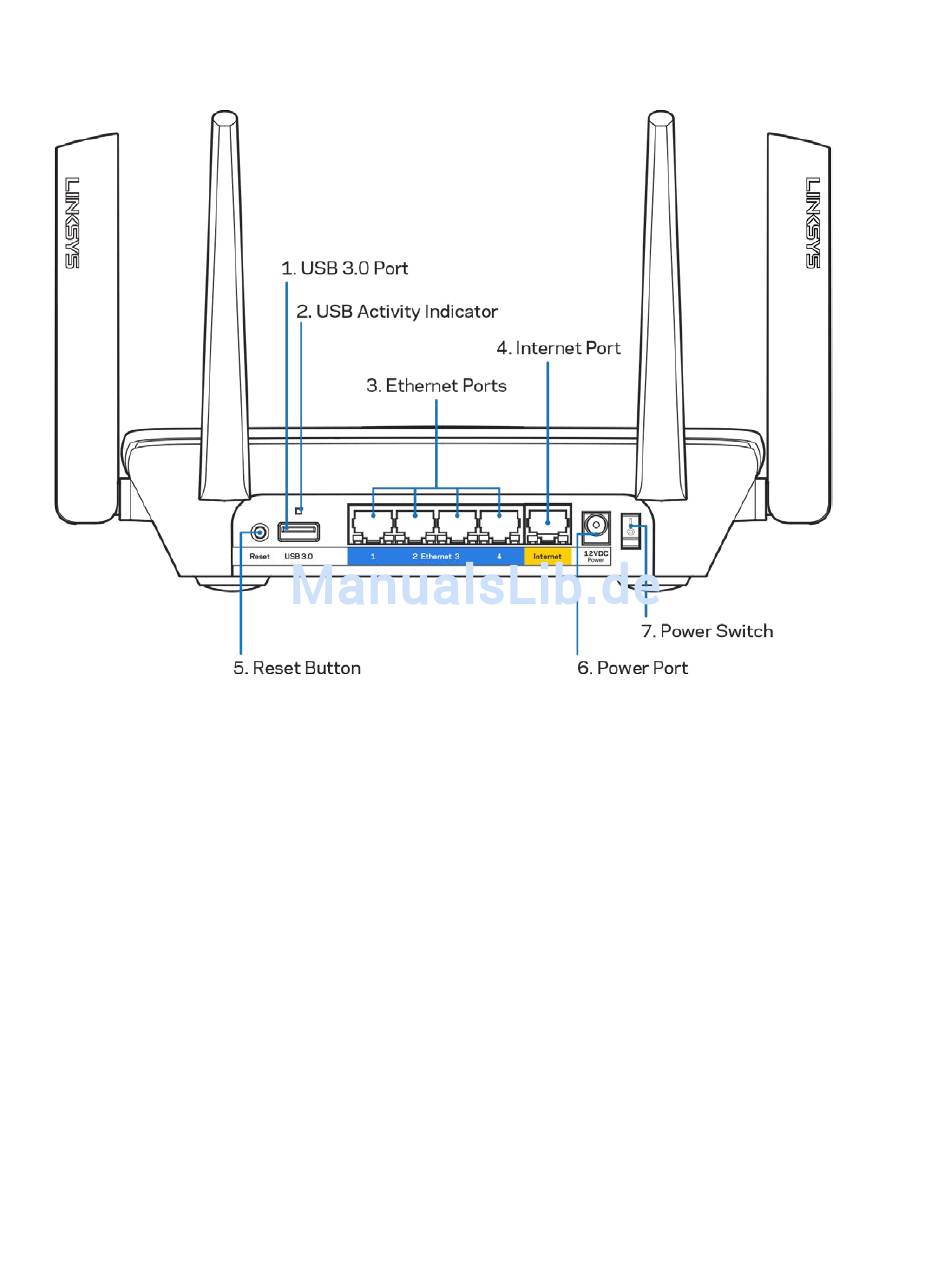

Back view

USB 3.0 port (1)— Connect and share USB drives on your network or on the internet.
USB activity indicator (2)— Lights indicate data transfer to/from external devices.
Ethernet ports (3)—Connect ethernet cables to these blue gigabit (10/100/1000) ports, and to
wired devices on your network.
Note—For best performance, use CAT5e or higher rated cables on the Ethernet ports.
Internet port (4)— Connect an ethernet cable to this yellow gigabit (10/100/1000) port, and to a
broadband internet cable/DSL or fiber modem.
Note—For best performance, use CAT5e or higher rated cable on the Internet port.
Reset button (5)— Press and hold until the illuminated Linksys logo turns off to reset the router to
factory settings. You can also restore the factory settings using Linksys Smart Wi-Fi on the internet
or mobile app.
Power port (6)—Connect the included AC power adapter.
Power switch (7)—Press | (on) to turn on the router.
