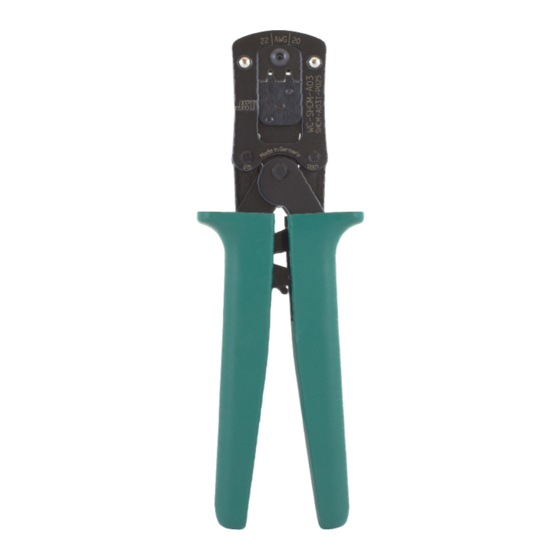

Instruction Manual/ Bedienungsanleitung Crimp Tool/ Crimp-Werkzeug CS 10 - WC-SHCM-A03 Open the tool. Loosen the flap locator. Remove the crimped Klapppositionierer Werkzeug öffnen. contact. lösen. Gecrimpten Kontakt entnehmen. MAINTENANCE / WARTUNG The tool has to be kept clean and oiled occasionally. Referring to the results of the life-time simulation we recommend the exchange of the locator after 1000 cycles at the latest.
Seite 2
Open the tool. Open the flap locator. The contact lies in the centre of Close the tool lightly until the contact Werkzeug öffnen. Klapppositionierer the respective profile. is held (1. Ratchet Lever) herausklappen. Kontakt liegt zur Mitte des Werkzeug leicht vorschließen, bis jeweiligen Profils.
