Seite 1

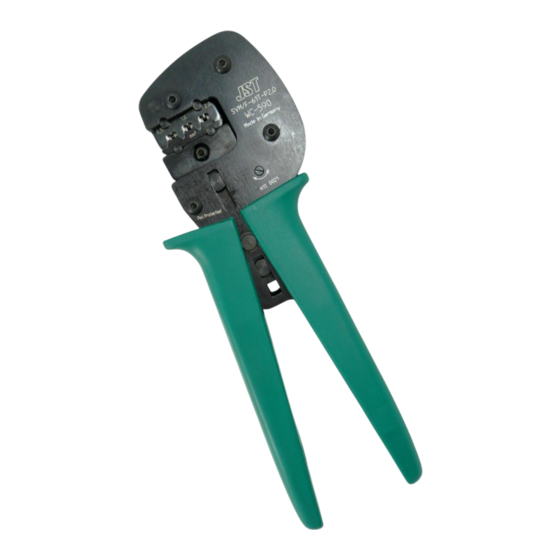

Turn the release screw in Close the tool slightly. direction of arrow. Werkzeug leicht schließen. Entriegelungsschraube in Pfeilrichtung drehen. Application/Anwendungsbereich: Mit d For Processing of JST contacts The tool opens automatically. Zur Verarbeitung der JST Kontakte Das Werkzeug öffnet selbstständig. SVF-61T-P2,0 t=0,3 0,5-2,0 mm²...
Seite 2
Insert the wire. Lock the flap locator. Pre-close the tool. Leiter einlegen. Schwenkpositionierer Werkzeug vor- verriegeln. schließen. Remove locking lever from the locator. 1. Profile 0,5 mm² Feststeller am Positionierer lösen. 2. Profile 1,0 mm² 3. Profile 2,0 mm² Open the tool and the flap locator and remove the Close the tool.
