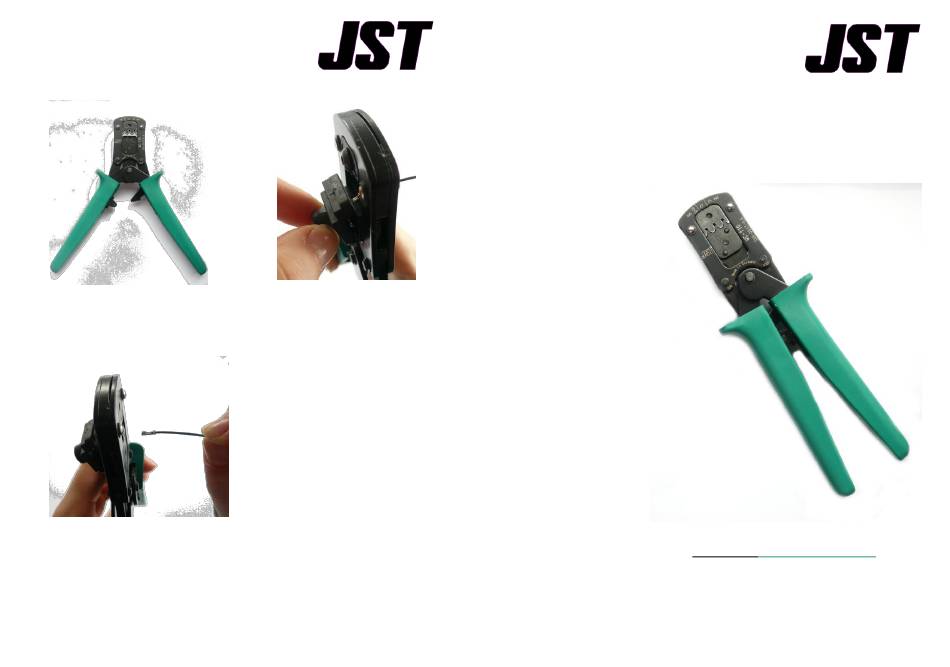

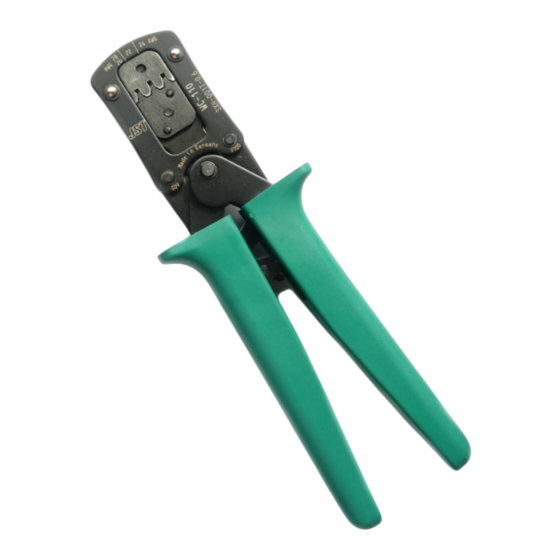

Instruction Manual/Bedienungsanleitung CS 10 – WC 110 Crimp Tool/Crimp-Werkzeug Open the tool. Loosen the Flap locator. Werkzeug öffnen. Schwenkanschlag lösen. Remove the crimped contact. Application/Anwendungsbereich: Gecrimpten Kontakt entnehmen. Mit d For processing of JST contacts Zur Verarbeitung der JST Kontakte SXH –...
Seite 2
AWG 28-26 AWG 24 AWG 22 Close the tool lightly until the contact The contact lies in the centre of is held (1. Ratchet Lever). the respective profile. Open the tool. Click out the Flap locator Werkzeug leicht vorschließen, bis Kontakt liegt zur Mitte des Werkzeug öffnen.
