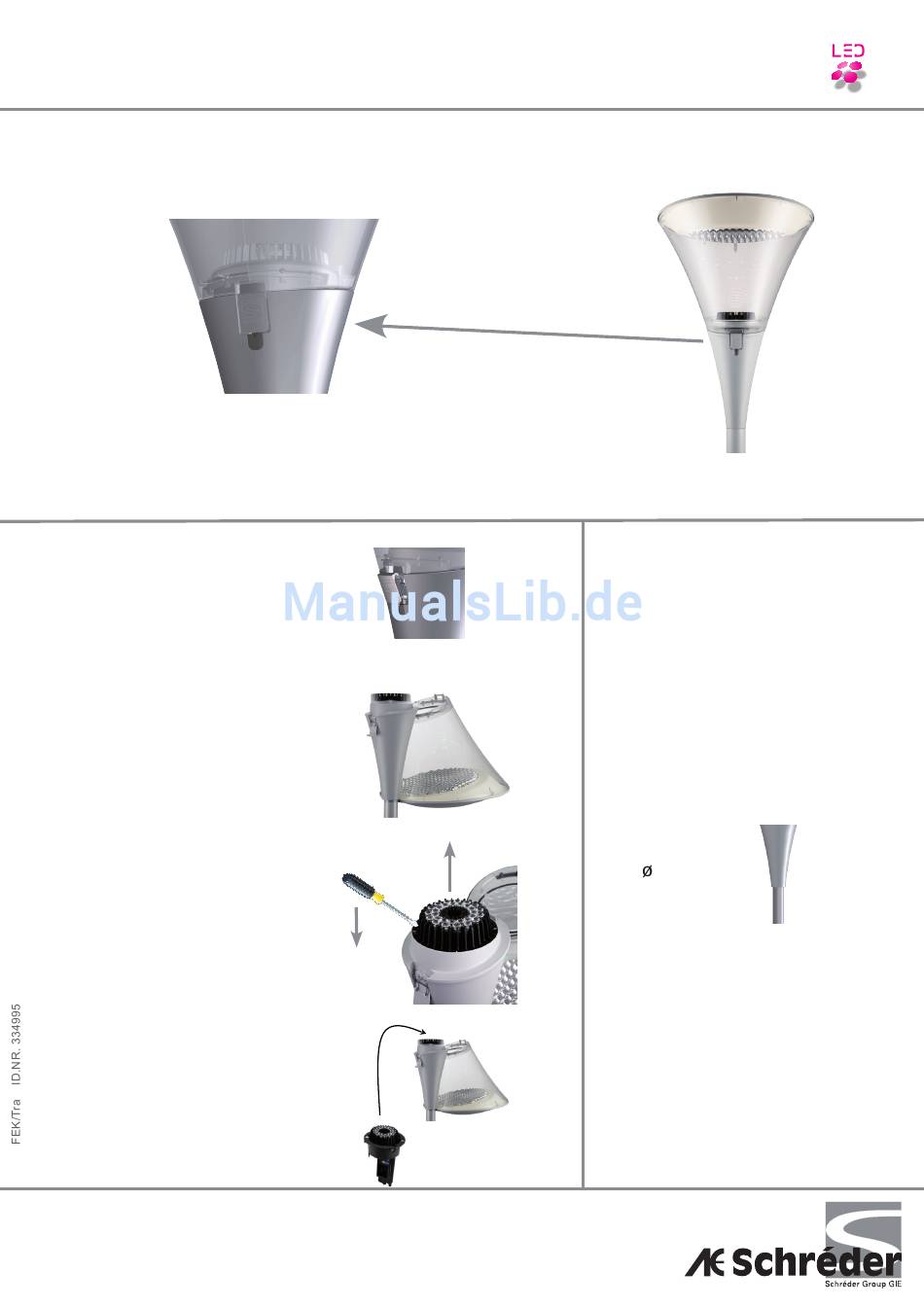

ASSEMBLY INSTRUCTIONS - CALLA LED
Correct position of the luminaire:
the quick fast opener must show to the
road side direction.
Please refer to the local electric technology regulation and allow
them to access and manipulation carried out only by certified
professionals. The manufacturer is not liable under the
Product Liability Act for damages caused by improper use.
LED-Engine change:
1) Open the quick release opener
2) Fold away the top part
3) Take out the LED-Engine
by using a screwdriver
(Do not pull on the connector!)
4) Install the new LED-Engine
5) Close the luminaire and fix it
with the quick fast opener
AE Schréder GmbH
Oberlaaer Straße 253 | 1230 Wien | Austria
Tel.: +43 1 61433-0 | Fax: +43 1 61433-5
E-mail: info@aeschreder.at
Website: www.aeschreder.at
Mounting:
1) Bring the connection cable
into the pole
2) Put the luminaire on the pole
and orientate the luminaire
to the road side direction
and fix it with the
two allen screws
Pole top
60 mm
3) Connect the cable junction box
