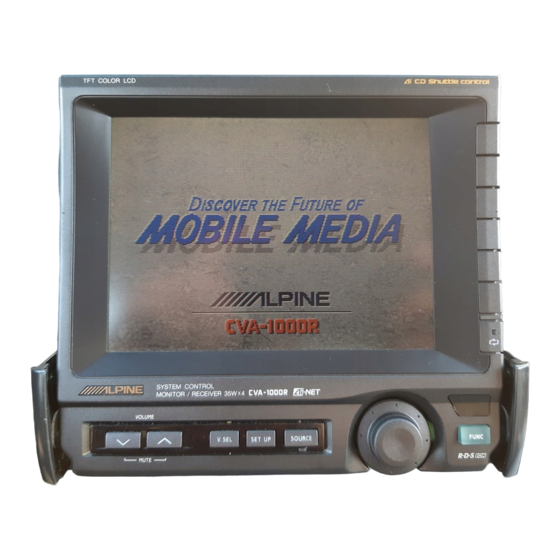

CVA-1000R
System Control Monitor/Receiver
ß GUIDE FOR INSTALLATION AND CONNECTIONS
≠
Please read this GUIDE FOR INSTALLATION AND CONNECTIONS and
the OWNER'S MANUAL thoroughly to familiarize yourself with each
control and function. We at ALPINE hope that your new CVA-1000R will
give you many years of listening enjoyment.
In case of problems when installing your unit, please contact your
authorized ALPINE dealer.
Point to Observe for Safe Usage
≠
Read this manual carefully before starting operation and use this
system safely. We cannot be responsible for problems resulting from
failure to observe the instructions in this manual.
≠
This manual uses various pictorial displays to show how to use this
product safely and to avoid harm to yourself and others and damage
to your property. Here is what these pictorial displays mean. Under-
standing them is important for reading this manual.
≠
Meaning of displays
This label is intended to alert the user to the
presence of important operating instructions.
Warning
Failure to heed the instructions will result in severe
injury or death.
This label is intended to alert the user to the
presence of important operating instructions.
Caution
Failure to heed the instructions can result in injury
or material damage.
Warning
DO NOT DISASSEMBLE OR ALTER
Attempts to disassemble or alter may lead to accident, fire or electric shock.
KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN
Store small articles (batteries, screws, etc.) in places not accessible to children.
If swallowed, consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES
Replace fuses only with fuses of the same rated ampere. Failure to do so may
result in fire etc.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND
Use only in cars with a 12 volts negative (–) ground. (Check with your dealer if
you are not sure.) Failure to do so may result in fire etc.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY
TERMINAL
Before doing any electrical wiring, disconnect the cable from the negative (–)
terminal of the battery. Failure to do so may result in electric shock or injury due
to electrical shorts.
KEEP ELECTRICAL CABLES TOGETHER TO AVOID OPERATING HAZARDS
Arrange wiring and cables in compliance with the installation manual to prevent
obstructions when driving. Cables or wiring that obstructs or hangs up on places
such as the steering wheel, gear lever, brake pedals can be extremely hazard-
ous.
DO NOT CUT AWAY THE WIRE SHEATH AND USE POWER TO OTHER EQUIP-
MENT
Never cut away the cable shielding to use power to another piece of equipment. Doing
so will exceed the current carrying capacity of the wire and result in fire or electric
shock.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION
Do not install in locations which might create hazards for the vehicle occupants
or hinder vehicle operation (such as the steering wheel or gear shift) by obstruct-
ing forward vision or hampering movement etc.
DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES
When drilling holes in the chassis for installation, take precautions so as not to
contact, damage or obstruct pipes, tanks or electrical wiring. Failure to take such
precautions may result in fire.
DO NOT USE NUTS OR BOLTS IN THE BRAKE SYSTEM WHEN MAKING IN-
STALLATION OR GROUND CONNECTIONS
Never use safety-related parts such as bolts or nuts in the steering or brake systems
or tanks to make wiring installations or ground connections. Using such parts could
disable control of the vehicle and cause fire etc.
DO NOT INSTALL THE MONITOR NEAR THE PASSENGER SEAT AIR BAG
Ensure that the location chosen for the monitor does not interfere with the operation
of the passenger seat air bag. This will prevent the triggered air bag from launching
the display towards passengers, possibly causing injury.
Caution
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS
The wiring and installation of this unit requires special technical skill and expe-
rience. To ensure safety, always contact the dealer where you purchased this
unit to have the work done.
DO NOT BLOCK VENTS OR RADIATOR PANELS
Do not block air vents or heat discharge plates. Blocking them will cause heat
to build up inside and may result in fire.
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY
Be sure to use only the specified accessory parts. Use of other than designated
parts may damage this unit internally or may not securely install the unit in place
as parts that come loose can create hazards.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST
Avoid installing the unit in locations with high incidence of moisture or dust. Moisture
or dust that penetrates into this unit may cause smoke or fire.
MAKE THE CORRECT CONNECTIONS
Failure to make the correct connections can cause fire or accident to occur.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED
Route the cables and wiring so as not be crimped by moving parts like seat rail
or make contact with sharp or pointed spots which might damage the wiring.
Precautions
IMPORTANT
Please record the serial number of your unit in the space provided
on the back cover of Owner's Manual and keep it as a permanent
record. The serial number plate is located on the bottom of the unit.
• Be sure to disconnect the cable from the (–) battery post before install-
ing your CVA-1000R. This will reduce any chance of damage to the
unit in case of a short-circuit.
• When replacing a blown fuse, make sure to replace it with one of the
same value.
• Be sure to connect the colour coded leads according to the diagram.
Incorrect connections may cause the unit to malfunction or damage
the vehicle's electrical system.
• This unit is designed for 12V DC, negative ground systems. Make sure
your vehicle has this type of electrical system before connecting the
power cable.
• When making connections to the car's electrical system, be aware of
the factory installed components (e.g. on-board computer). Do not tap
into these leads to provide power for this unit. When connecting the
CVA-1000R to the fuse box, make sure the fuse for the intended circuit
of the CVA-1000R has the appropriate amperage. Failure to do so may
result in damage to the unit and/or the vehicle. When in doubt, consult
your ALPINE dealer.
• The CVA-1000R uses female RCA-type jacks for connection to other
units (e.g. amplifier) having RCA connectors. You may need an adap-
tor to connect other units. If so, please contact your authorized ALPINE
dealer for assistance.
• The Display must be completely retracted in the casing when install-
ing. If it is not, problems may occur.
• When installing in automobiles, make sure the Display can open/close
without coming in contact with the shift lever.
