Control Panel; Display - Kärcher RLM 4 Betriebsanleitung

2.4

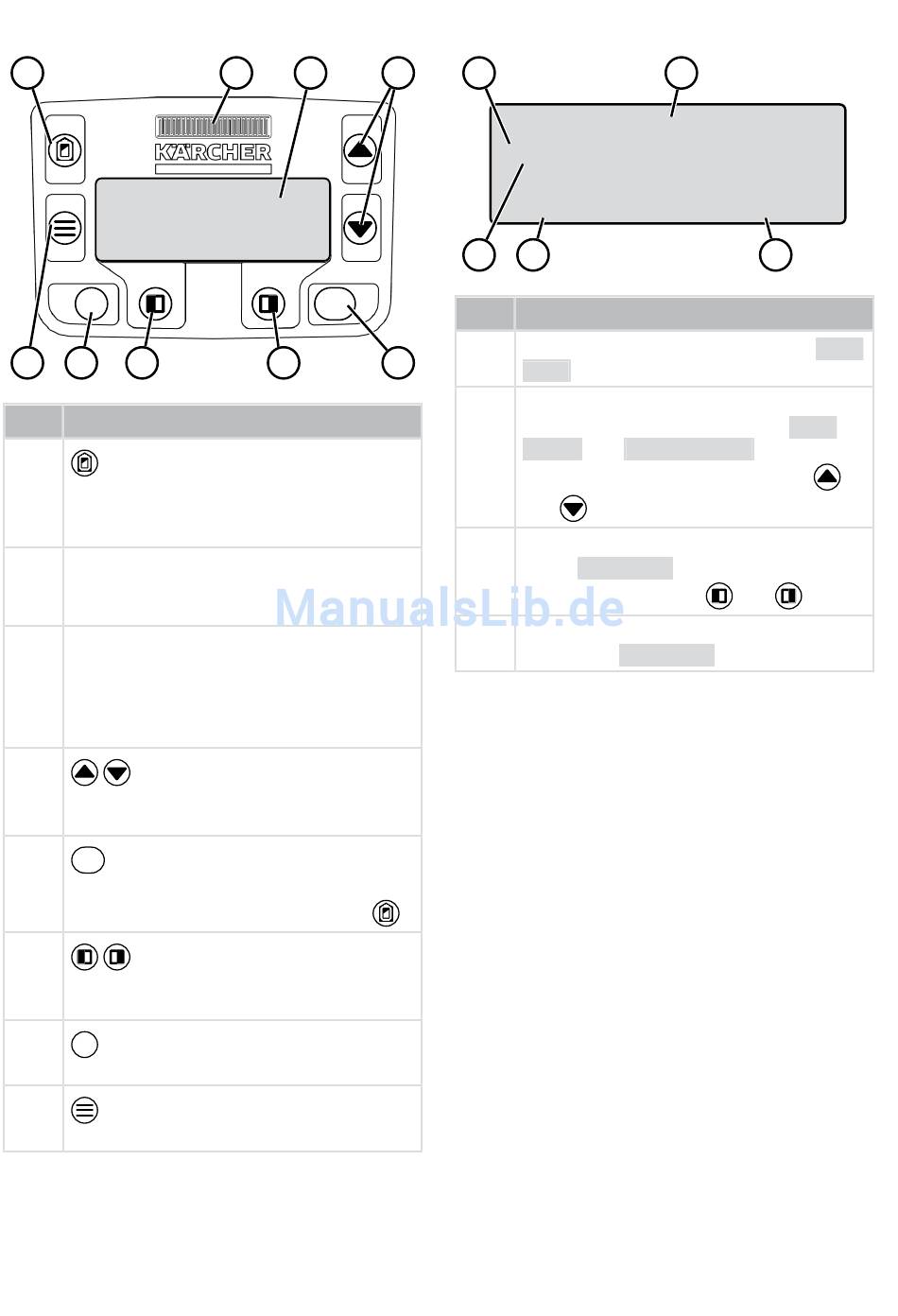

Control panel

1
HOME
MENU
ON
OFF
8 7 6
No. Component
1
(Home button): Cancel mowing, the
appliance returns to the charging sta-
tion. It starts on the next day automati-
cally again at the set mowing time.
2 Rain sensor: Registers if it rains (see
chapter 7.4 "Setting the rain sensor",
page 52).
3 Display: Shows the current operating
status of the appliance, the name of the
selected menu, its menu items and the
functions to be selected. (see chapter
2.5 "Display", page 40).
4
(Arrow keys): Select the menu
items, increase and decrease numerical
values, select between settings.
5
START
(Start/Stop button): Start mowing
STOP
manually and stop mowing or immedi-
ately resume it again after pressing
6
(Function keys): Call up the
function that is displayed directly above
the button on the display.
7
ON
(On/Off button): Switch the appli-
OFF
ance on and off.
8
(Menu button): Call up the main
menu.
40
2 3 4
START
STOP
6 5
.
2.5

Display

4
* Settings
Information
Back
2 3
No. Display
Name of the selected menu (here: Main
1
Menu)
2 Menu items in the menu: Only two menu
items are ever displayed (here: Set-
tings and Information). Further
menu items can be displayed with
and .
3 Functions for the selected menu item
(here: Settings). Further functions
can be called up with
4 Asterisk for marking the displayed menu
item (here: Settings)
