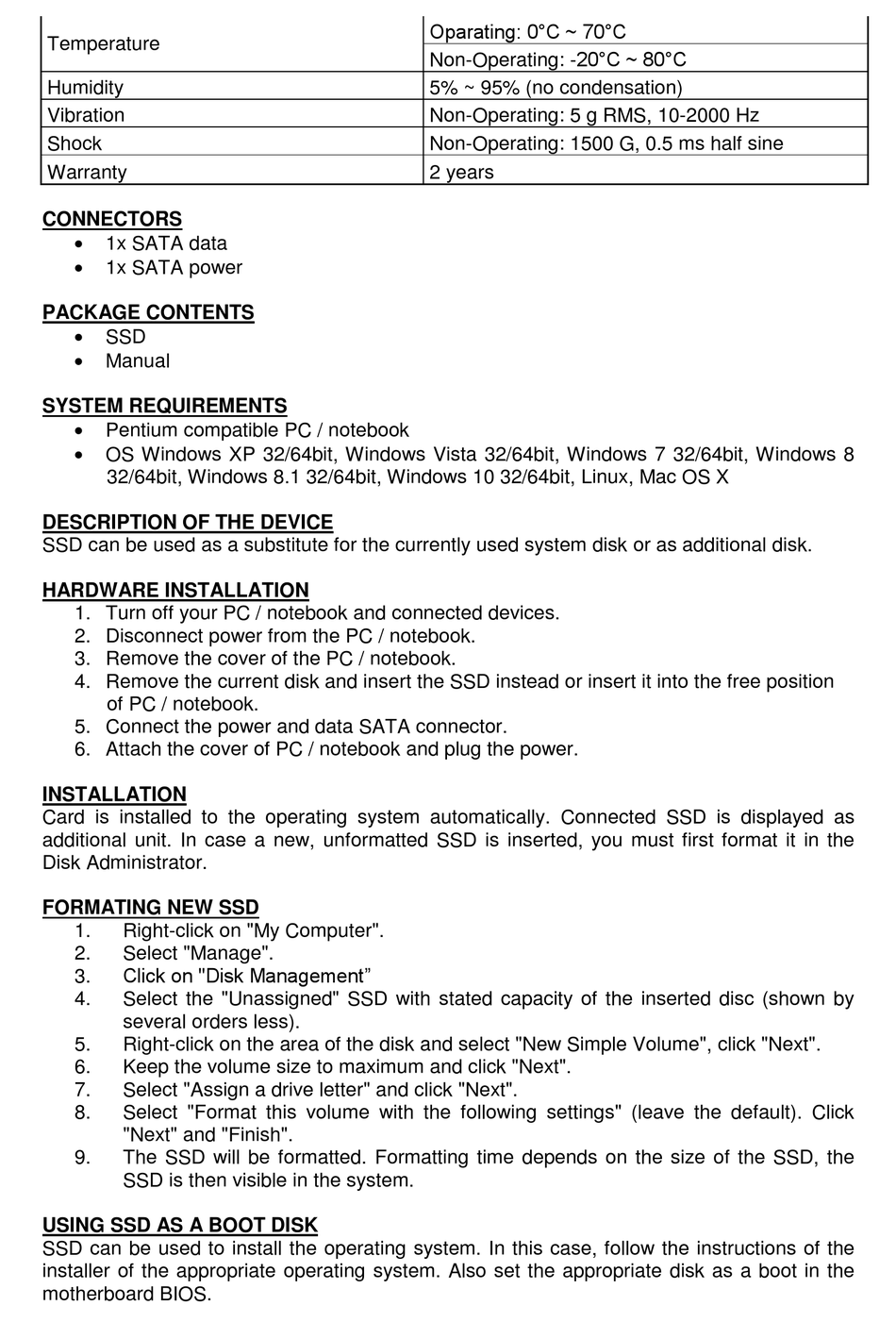

Installation - i-tec Solid State Disk 120GB Gebrauchsanweisung

Temperature
Humidity
Vibration
Shock
Warranty
CONNECTORS

1x SATA data

1x SATA power
PACKAGE CONTENTS

SSD

Manual
SYSTEM REQUIREMENTS

Pentium compatible PC / notebook

OS Windows XP 32/64bit, Windows Vista 32/64bit, Windows 7 32/64bit, Windows 8
32/64bit, Windows 8.1 32/64bit, Windows 10 32/64bit, Linux, Mac OS X
DESCRIPTION OF THE DEVICE
SSD can be used as a substitute for the currently used system disk or as additional disk.
HARDWARE INSTALLATION
1. Turn off your PC / notebook and connected devices.
2. Disconnect power from the PC / notebook.
3. Remove the cover of the PC / notebook.
4. Remove the current disk and insert the SSD instead or insert it into the free position
of PC / notebook.
5. Connect the power and data SATA connector.
6. Attach the cover of PC / notebook and plug the power.

INSTALLATION

Card is installed to the operating system automatically. Connected SSD is displayed as
additional unit. In case a new, unformatted SSD is inserted, you must first format it in the
Disk Administrator.
FORMATING NEW SSD
1. Right-click on "My Computer".
2. Select "Manage".
Click on "Disk Management"
3.
4. Select the "Unassigned" SSD with stated capacity of the inserted disc (shown by
several orders less).
5. Right-click on the area of the disk and select "New Simple Volume", click "Next".
6. Keep the volume size to maximum and click "Next".
7. Select "Assign a drive letter" and click "Next".
8. Select "Format this volume with the following settings" (leave the default). Click
"Next" and "Finish".
9. The SSD will be formatted. Formatting time depends on the size of the SSD, the
SSD is then visible in the system.
USING SSD AS A BOOT DISK
SSD can be used to install the operating system. In this case, follow the instructions of the
installer of the appropriate operating system. Also set the appropriate disk as a boot in the
motherboard BIOS.
Oparating: 0°C ~ 70°C
Non-Operating: -20°C ~ 80°C
5% ~ 95% (no condensation)
Non-Operating: 5 g RMS, 10-2000 Hz
Non-Operating: 1500 G, 0.5 ms half sine
2 years
