) b
) e
) c
2
d
)
d
3
)
d
4
)
) f
26
) c

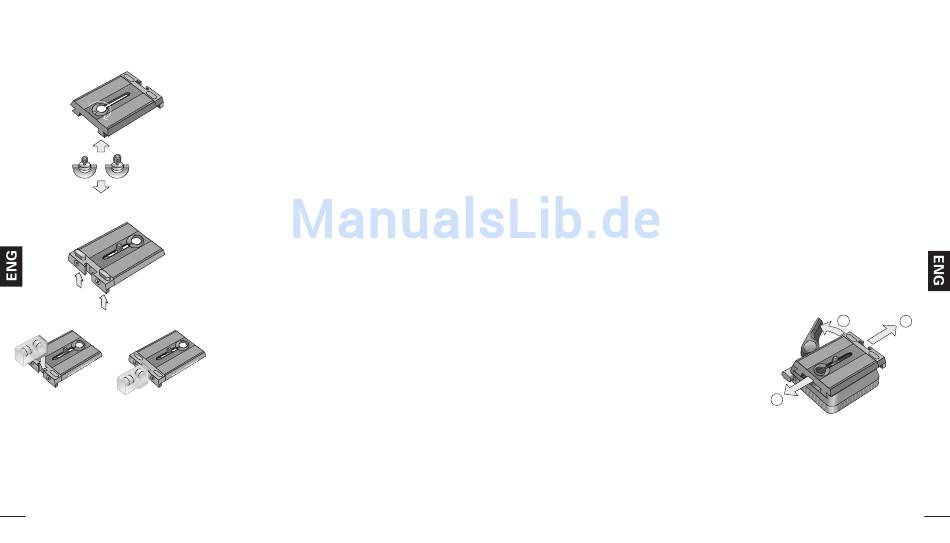

9. Using the MX 492 sliding plate
Model MB 8.5
• Replacing the 1/4" camera screw:
Rotate the lock on the top of the sliding plate
to the opened position using a screwdriver
or coin.
Now replace the 1/4" with the 3/8" and
subsequently twist the safety device onto the
) f
sliding plate.
• Anti-twist safeguard for portrait format photo-
graphy:
Push the two anti-rotation pins on the back up
and attach the camera so that the back of your
camera is resting against both of the anti-
rotation pins.
• Attaching the spirit level:
The use of a spirit level is very useful in many
photography situations, it even being indis-
3
4
d
)
d
)
pensable in many cases. Simply insert the
CULLMANN spirit level CX678 in the
seat provided on the sliding plate for this
purpose – observe the insertion formatting.
) g
10. Displacing the MX 492 sliding plate
Model MB 8.5
The displacement of the camera on the ball head
is especially helpful in macrophotography, but
also in landscape and architecture photography.
This means that the tripod remains in the selec-
ted position and the required adjustment area is
provided by the sliding plate.
) g
Please note:
It is not necessary to activate the release button
in order to displace the plate. This is only neces-
sary if you wish to remove the sliding plate from
the Quick-Release System sliding unit.
• Release the locking lever and do not push the
release button.
• The sliding plate is still secured against
removal bit it can be displaced.
• To finally locking the sliding plate, simply
push the locking lever of the Quick-Release
System sliding unit back.
• When using CULLMANN MAGNESIT sliding
plates, a special securing pin provides protection
against an unintentional pushing of the plate out
of the Quick-Release System sliding unit.
Please note that when using camera plates from
other manufacturers, the securing against the
sliding plate being pushed out does not function.
1
) a
1
2
2
a
1
)
27
