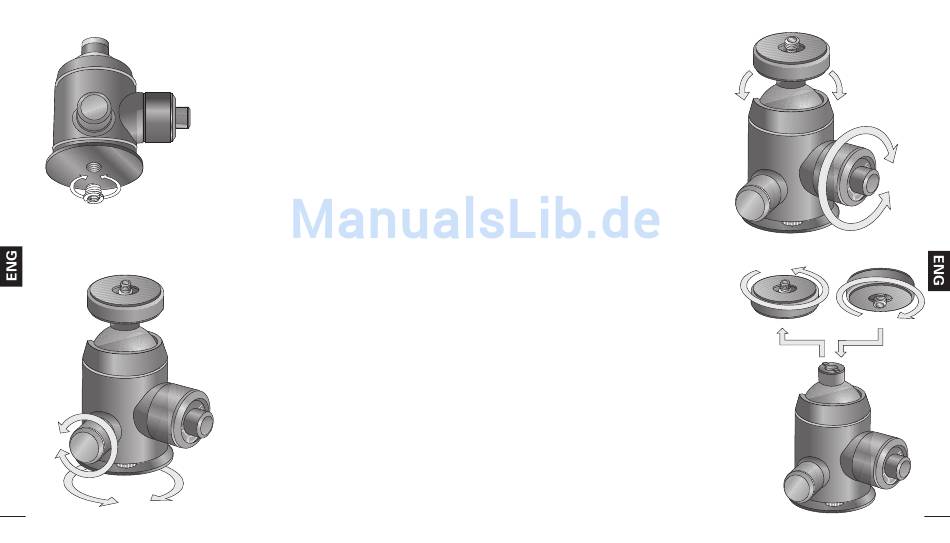

1. Mounting on all MAGNESIT MB models
You can mount your ball head using the 3/8"
connection thread which is underneath it.
• If your tripod should have a 1/4" mounting
screw, please screw the enclosed 3/8"- 1/4"
thread adapter into the connection thread of
your ball head.
• Now clamp the horizontal path of your ball
head and screw the ball head onto your tripod
clockwise.
2. Immobilizing the horizontal path
on all MAGNESIT MB models
• To immobilize the horizontal path, please rotate
the immobilizing button clockwise.
• To release the immobilizing of the horizontal
path, rotate the immobilizing button anti-
clockwise.
• You can now rotate the ball head by 360°. The
scale is subdivided in 5° divisions and therefore
provides you with a fine horizontal adjustment.
3. Locking the ball on all
MAGNESIT MB models
• To release the ball lock, please rotate the im-
mobilizing button anti-clockwise. The ball is
now fully open and can be moved to any
shooting position.
• To lock the ball in the selected position,
please rotate the immobilizing button clock-
wise.
4. Quick-release plate with 1/4"- 3/8"
camera screw
Model MB 2.1 / MB 4.1 / MB 6.1
Please check the size of the connection thread on
your camera before mounting it on the ball head.
• To change the camera screw from 1/4" to 3/8",
please rotate the quick-release plate off the ball
head – anti-clockwise.
• Rotate the quick-release plate by 180° and then
screw this back onto the ball head – clockwise.
close
open
1/4"
3/8"
