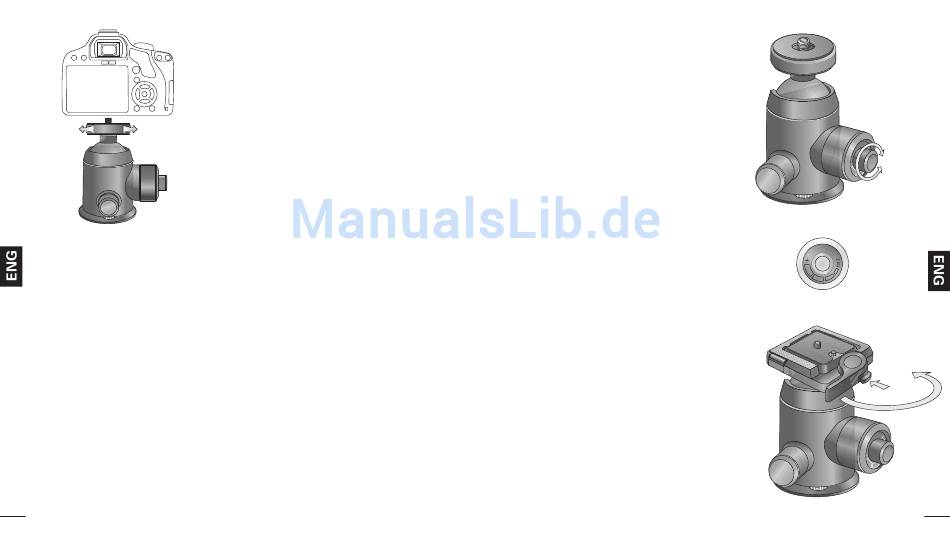

5. Attaching the camera
on the quick-release plate
• Please clamp the horizontal path first.
• Now release the ball lock.
• Now screw the camera screw of the ball head
into the tripod thread in your camera until this is
firmly mounted on the ball head.
6. Adjusting the friction
Model MB 4.1 / MB 6.1 / MB 6.3 / MB 8.5
Why friction?
Friction means the inhibiting of a movement.
Example:
When using a heavy zoom lens, the size and
weight cause an extensive weight projection
from the lens and the camera and therefore on
the ball head. An opening of the ball lock without
taking care results in the camera and lens tilting
forwards.
The rule of thumb is that the heavier and longer
the lens, the higher the ball friction has to be
adjusted.
• The adjustment of the ball friction necessitates a
releasing of the ball lock.
• The friction is subdivided into finely adjusted
latching settings and can be adjusted as neces-
sary by means of the friction adjustment button.
• If the adjustment button is rotated to the left in
the direction of the minus symbol (-), the friction
strength is reduced.
• If the adjustment button is rotated to the right
in the direction of the plus symbol ( + ), the ball
friction is increased.
Caution:
Please do not attempt to forcefully adjust the
friction if the ball is clamped in position. Always
ensure that the ball lock has been released for the
friction adjustment as this could otherwise cause
damage to the ball head.
7. Attaching the camera to MX 445
Model MB 6.3
• To remove the quick-release plate from the
Quick-Relase System unit, press the release
button and simultaneously move the locking
lever back in order to open it.
high
friction
low
friction
strong
weak
friction
friction
open
1)
2)
push
23
