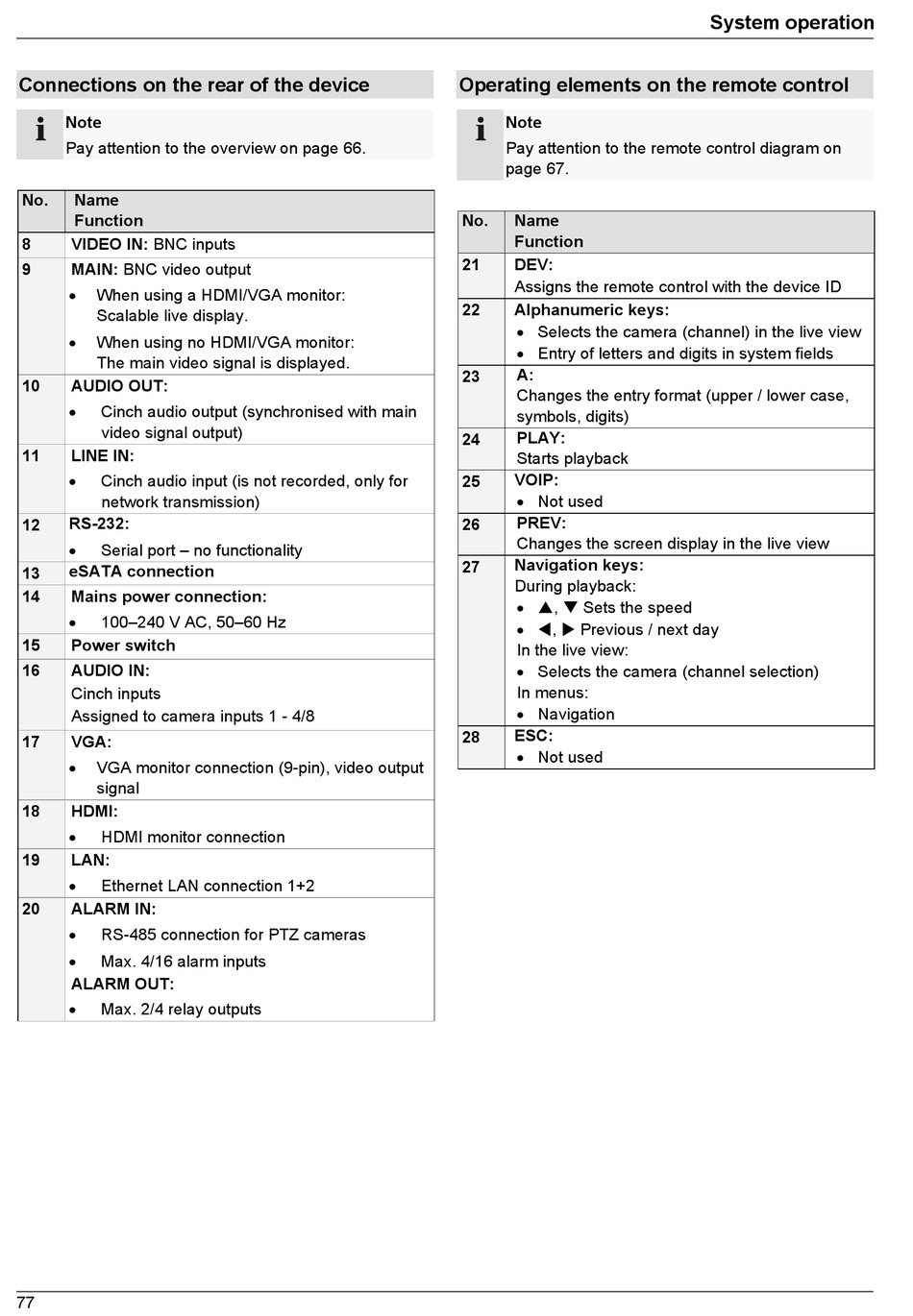

Connections on the rear of the device

Note
Pay attention to the overview on page 66.
No. Name
Function
VIDEO IN: BNC inputs
8
9 MAIN: BNC video output

When using a HDMI/VGA monitor:
Scalable live display.

When using no HDMI/VGA monitor:
The main video signal is displayed.
10 AUDIO OUT:

Cinch audio output (synchronised with main
video signal output)
11 LINE IN:

Cinch audio input (is not recorded, only for
network transmission)
RS-232:
12

Serial port – no functionality
eSATA connection
13
14 Mains power connection:

100–240 V AC, 50–60 Hz
15 Power switch
16 AUDIO IN:
Cinch inputs
Assigned to camera inputs 1 - 4/8
17 VGA:

VGA monitor connection (9-pin), video output
signal
18 HDMI:

HDMI monitor connection
19 LAN:

Ethernet LAN connection 1+2
20 ALARM IN:

RS-485 connection for PTZ cameras

Max. 4/16 alarm inputs
ALARM OUT:

Max. 2/4 relay outputs
77

Operating elements on the remote control

Note
Pay attention to the remote control diagram on
page 67.
No. Name
Function
21 DEV:
Assigns the remote control with the device ID
22 Alphanumeric keys:
 Selects the camera (channel) in the live view
 Entry of letters and digits in system fields
A:
23
Changes the entry format (upper / lower case,
symbols, digits)
PLAY:
24
Starts playback
VOIP:
25
 Not used
PREV:
26
Changes the screen display in the live view
Navigation keys:
27
During playback:
 ,  Sets the speed
 ,  Previous / next day
In the live view:
 Selects the camera (channel selection)
In menus:
 Navigation
ESC:
28
 Not used
