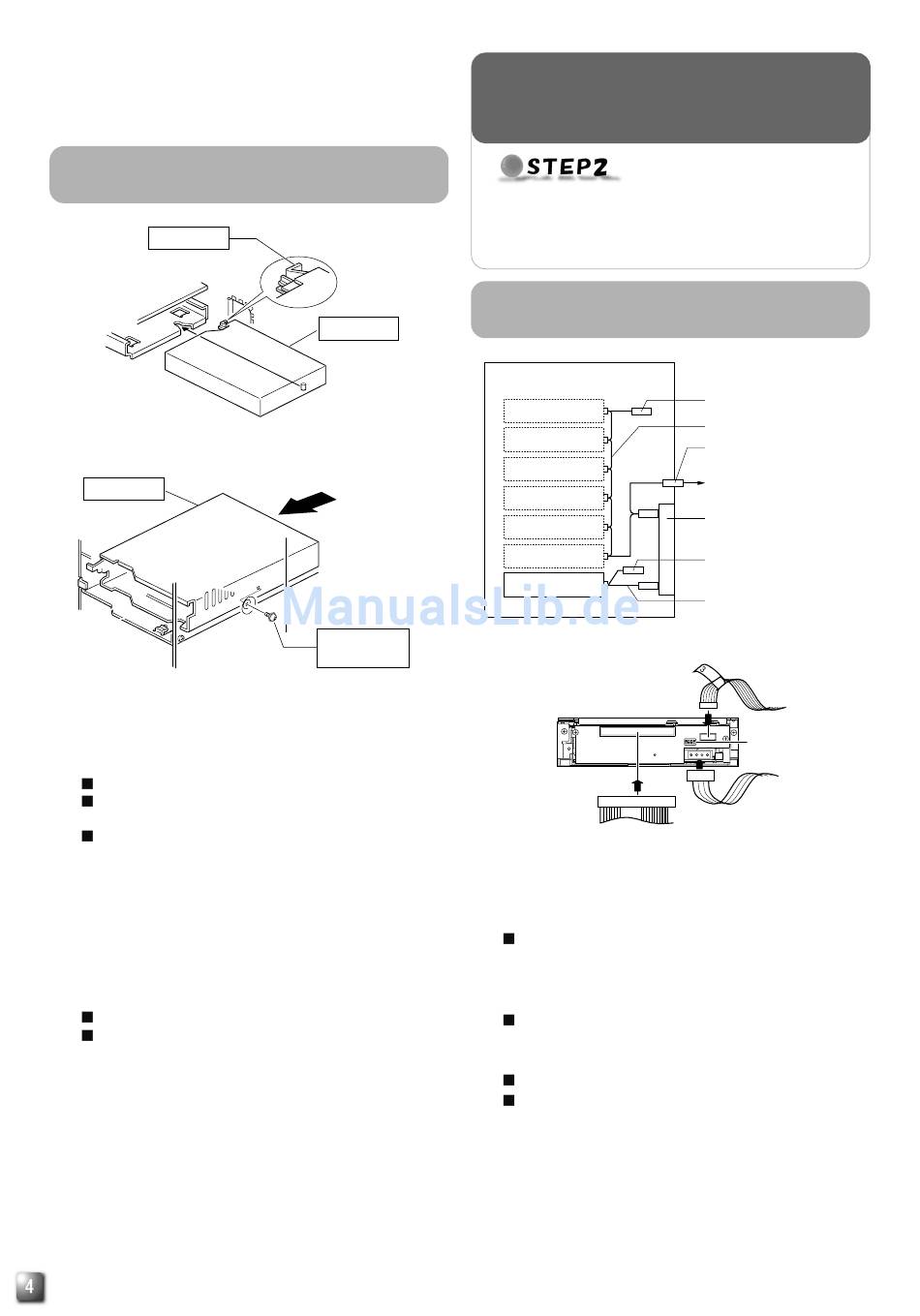

Procedure for Installing the MC-BL10U in
the CD/DVD Library
Sensor slit
1.
<MC-BL10U insertion direction>
MC-BL10U
<MC-BL10U locking method>
1.
Insert the MC-BL10U from the rear of the CD/DVD Library
Be sure not to damage the sensor slit.
Make sure that the direction of the MC-BL10U is correct
when inserting it.
Be sure that the cables connected to the rear of the CD/
DVD Library are not caught or pinched when inserting
the MC-BL10U.
2.
Insert the MC-BL10U slowly until the screw installation hole
located on the side of the MC-BL10U and the screw instal-
lation hole located on the drive locking section are aligned.
3.
Screw in the provided Drive locking screw to the installa-
tion hole of the drive locking section.
Tighten the screw firmly.
If the drive locking screw is loose, the drive and/or Li-
brary may be damaged.
E
MC-BL10U
2.
3.
Drive locking
screw
CONNECTION
●
Connect the MC-BL10U to the CD/DVD Library.
Also refer to the instruction manual for the CD/
DVD Library.
Procedure for Connecting the Cables to
the Back of the MC-BL10U
Interior
Not Used
Drive 5
Drive 4
Drive 3
Drive 2
Drive 1
Library SCSI board
<MC-BL10U connection example>
1.
SCSI cable
<MC-BL10U rear panel>
1.
Connect the power supply cable, control cable and SCSI
cable to the connectors at the rear of the MC-BL10U.
When using the MC-8100LU, the No. of the cable must
always correspond to the No. of the drive bay to which it
is being connected. If a cable with the wrong number is
connedted, it will lead to the equipment malfunctioning.
When using an MC8200LU/8600LU, connect the con-
trol cables which lead from the side of the drive bay where
the MC-BL10U is to be inserted.
Insert all connectors firmly.
SCSI cables are connected as a daisy chain connec-
tion. Each connector should be connected to the drive
positions as illustrated in the diagram.
• The SCSI cable, which is built into the MC-8100LU/
8200LU/8600LU standard models, terminates at the
location where the connection is physically terminated.
Terminator
Internal SCSI (LVD) cable
68-pin external SCSI connector
To host computer (SE/LVD)
SE-LVD conversion board
Terminator
Internal SCSI (SE) cable
Control cable
14p
DIP switch
4p
Power cable
