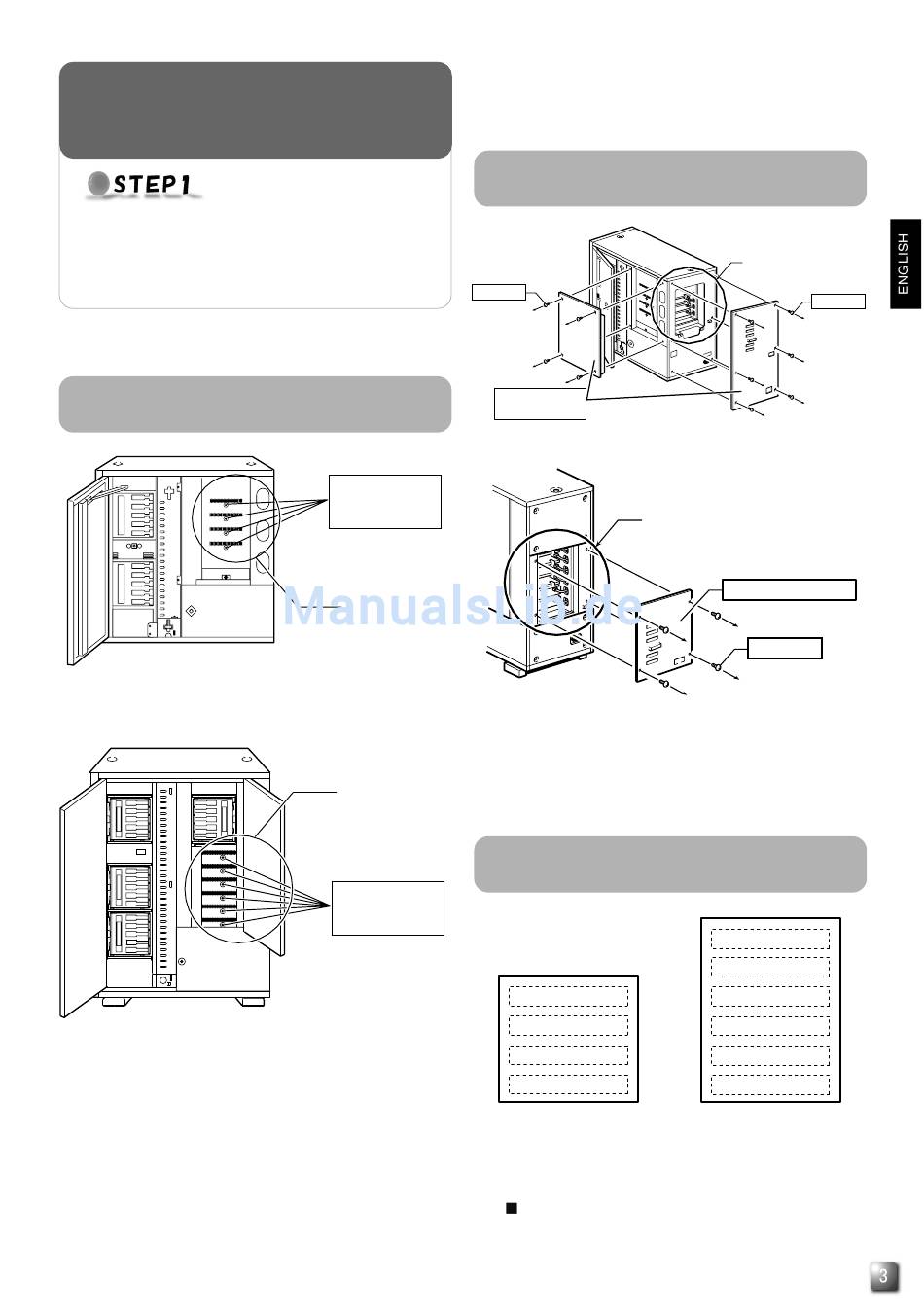

INSTALLATION
●
Install the MC-BL10U in the CD/DVD Library.
Before starting installation, be sure to turn both the
host computer and peripherals off.
For information related to the CD/DVD Library, refer
to the instruction manual for the CD/DVD Library.
Procedure for Opening the Door of the
CD/DVD Library
<With the MC-8100LU>
* The illustration shows the CD/DVD Library with the drive storage
cover removed for ease of description.
<With the MC-8200LU>
1.
Select the [DOOR OPEN MODE] on the MENU screen of
the CD/DVD Library's LCD.
2.
Press and hold the "SELECT" switch for five seconds.
3.
Turn off the power of the CD/DVD Library when [THE DOOR
CAN BE OPENED] message is displayed on the LCD.
4.
Insert the key in the key cylinder located at the center of
the door to unlock and open the door.
Procedure for Opening the Drive Storage
Screw
Drive storage
cover
Drive locking
screw mounting
hole
Drive storage
section
1.
Remove the screws from the drive storage cover of the
CD/DVD Library.
Drive storage
2.
section
Remove the drive storage cover.
Procedure for Determining the Setup
Drive locking
screw mounting
hole
<MC-8100LU drive storage section> <MC-8200LU drive storage section>
1.
Install the drives to the drive slots No.1 through No.5 (No. 1
through No. 4 in the case of the MC-8100LU) sequentially.
Cover of the CD/DVD Library
<With the MC-8100LU>
Drive storage
section
<With the MC-8200LU>
Position for MC-BL10U
Drive No. 4
Drive No. 3
Drive No. 2
Drive No. 1
It makes the work easy if the drives are installed from
the lowest number to the highest.
Drive storage
section
Screw
Drive storage cover
Screw
Not Used
Drive No. 5
Drive No. 4
Drive No. 3
Drive No. 2
Drive No. 1
